Installation and programming manual
User interface 19
Chapter 5
User interface

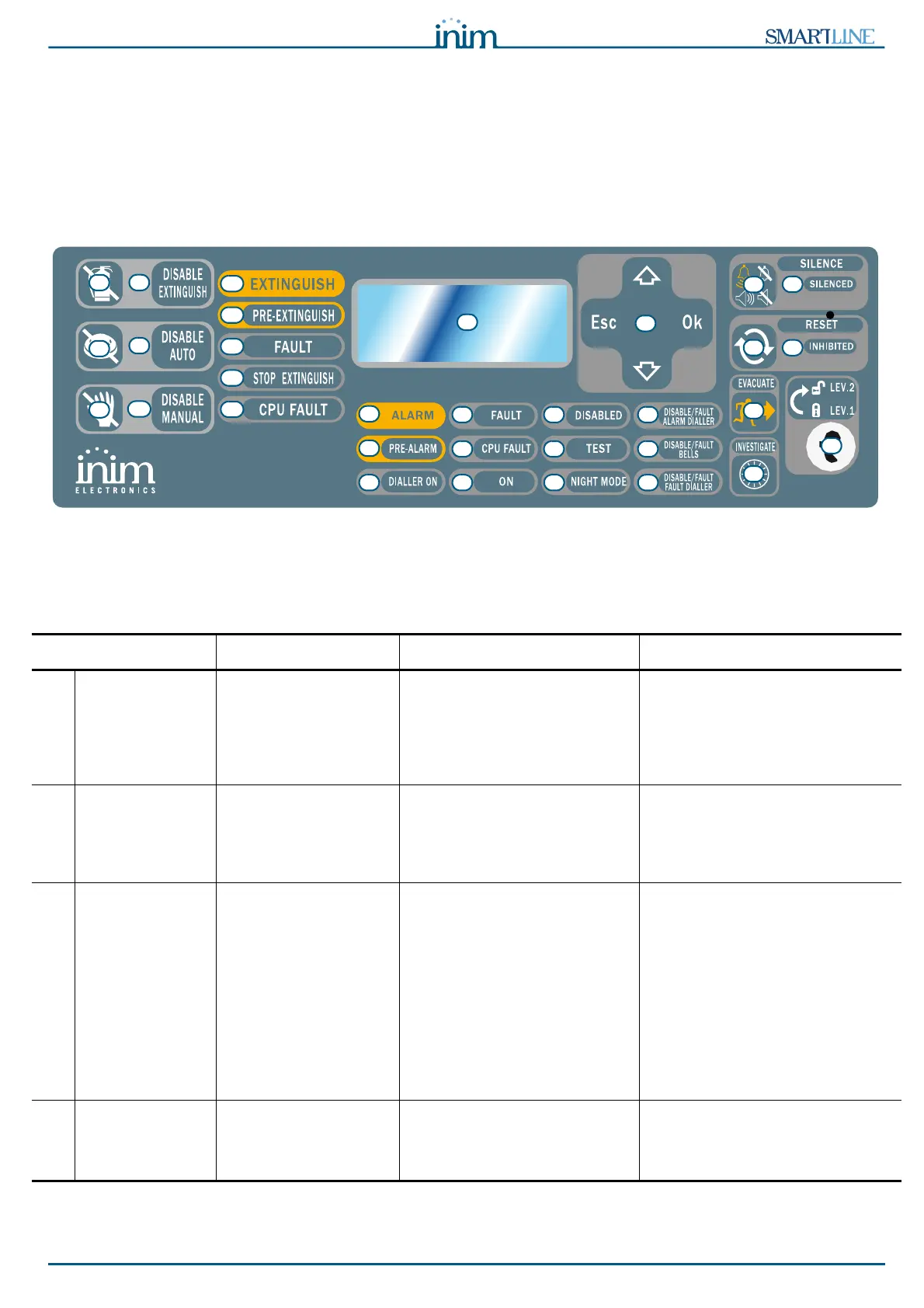

Figure 8 - Frontplate
5.1 SmartLine panel frontplate
5.1.1 Commands
Command Access level 1 Access level 2 Note
[A] Navigation keys To be used to navigate through the
menus on the display. Their effect
varies in accordance with the
context. See Chapter 8 -
Introduction to Programming from
the panel.
[B] Slot for level 2
access key
Key not inserted or
inserted in vertical
position
Key inserted in horizontal
position
When the key is removed or placed
in the vertical position and no key
is pressed, the control panel will
hold access level 2 status for 20
seconds.
[C] SILENCE Pushing this button
silences the panel
beeper.
Silences (switches OFF) active
outputs with the silenceable
attribute. The silenceable
outputs will hold silenced status
until a new event occurs that
releases the outputs
automatically. The SILENCE
button operates as a toggle
switch, therefore, silenced
outputs can be unsilenced by
pushing the button again.
If the system is operating in Night
mode, SILENCE status will be held
for the preset SILENCE time only.
This is a safety precaution
designed to protect building
occupants and persons in charge of
night-security who, after silencing
the system, may be overcome by
smoke or fumes during fire
investigation and unable to restart
the alarm signalling devices
manually.
[D] RESET Push this button to clear any
active events, delete the
memory and restore standby
conditions.
Any alarm/fault conditions which
persist after RESET operations will
generate new alarm/fault signals.
