Evolve System Operator Manual
Section 4: Device Description
15
Section 4: Device Description

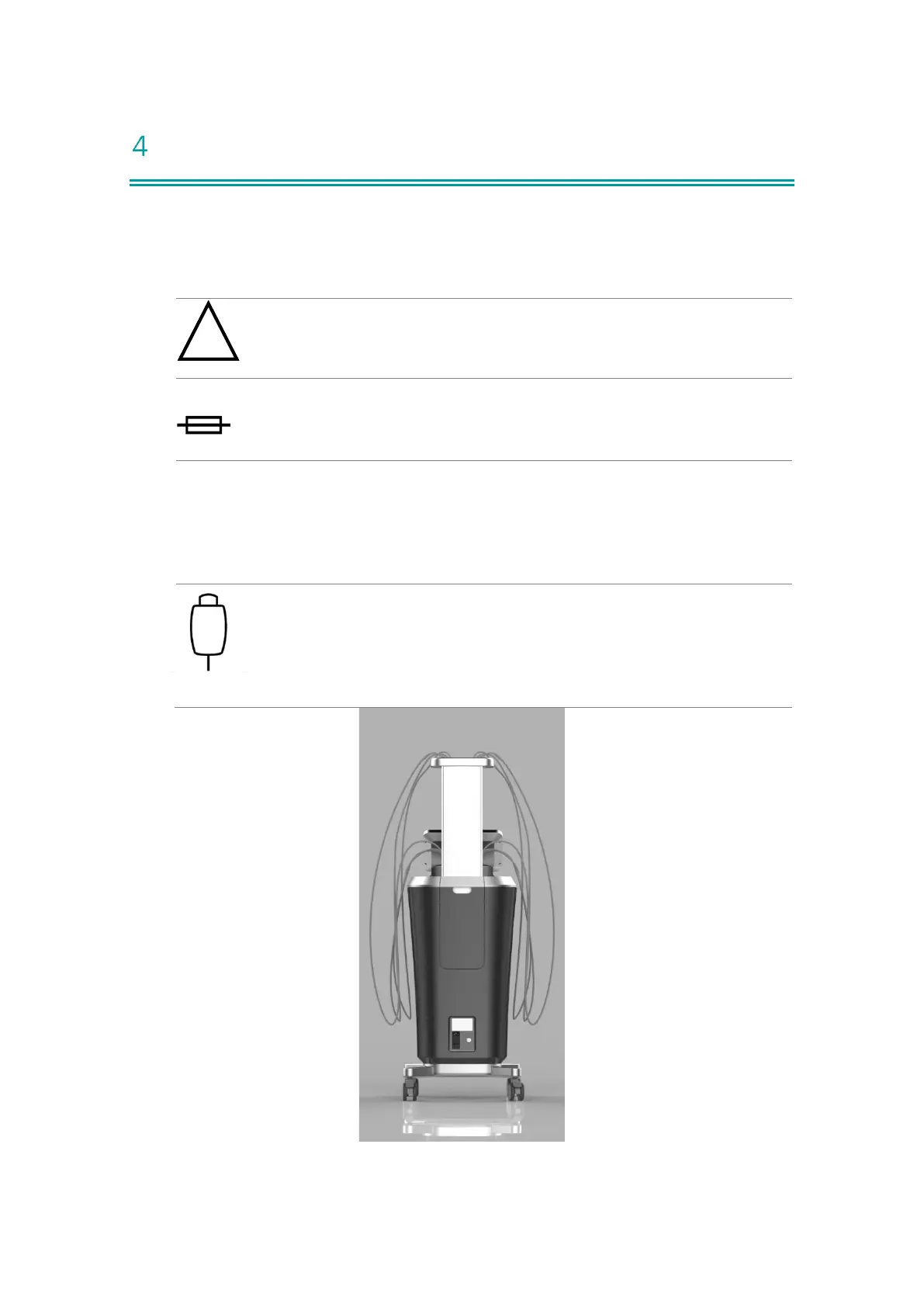

4.1 Rear Panel
Power Cord Inlet
100-240V~, 15A, 50-60Hz.
Fuse Holder
Rating is T 6.3A, 250V. Replace fuses if needed, only with fuses having
exactly the same rating.
Software Flash Memory Plug
The software plug is a flash memory with the machine software. The
software plug should be screwed to the connectors. To tighten and/or
loosen the screws use fingertips only. Do not use screwdriver as it can
damage the connectors.
Patient call button Connector
The Patient call button is connected to the inlet. Patient call button
pauses the RF energy while the System is in Active mode. Place the
Patient call button near the treatment area. Located behind the door
on the Rear Panel.
