InMode EVOLVE X - 11.1 Output Power Curves

Evolve System Operator Manual
Section 11: System Specifications
51
RF Maximum Output Power
50W
RF Frequency
1Mhz
Pulse Duration
2 Sec.
Intensity (output voltage)
Waveform
Pulse shape
Up to 50 intensity level (=54 Vpeak)
Bi-phasic
Rectangular
Pulse width
20-400 [µsec]
Frequency
3-200 [Hz]
Tone Output Parameters
Intensity (output voltage)
Up to 50 energy level (=54 Vpeak)
Waveform
Bi-phasic
Pulse shape
Rectangular
Pulse width
20-400 [usec]
Frequency
3-200[Hz]
11.1 Output Power Curves
The curves that follow depict the changes for each RF mode at specific
power settings.

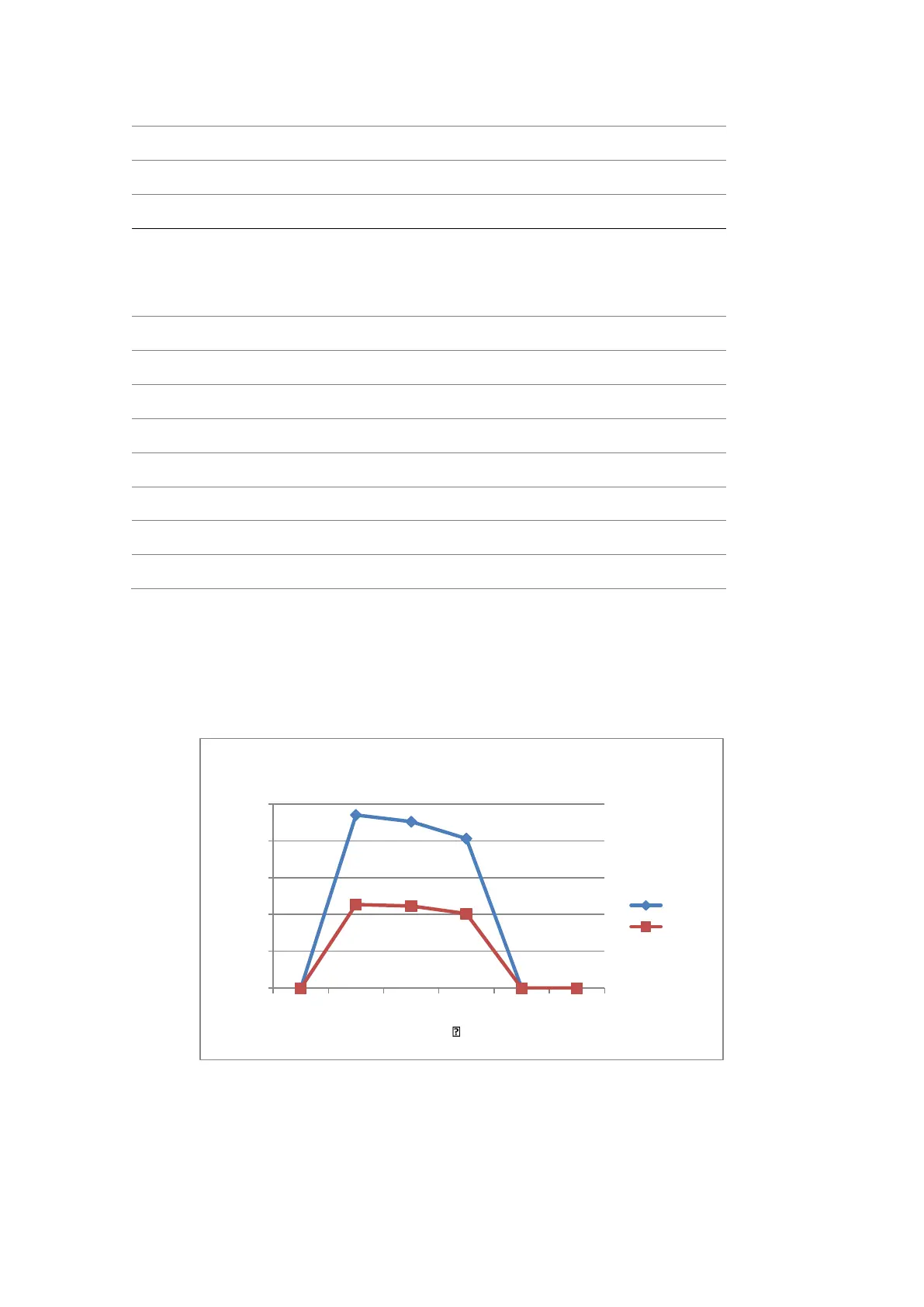

Figure 11-1: Tite Output Power versus Impedance
0
10
20
30
40
50
10 50 200 600 800 1000
Power [W]
Load [ ]
EmBodyPlus
Series1
Series2
