1.22 Limits Tiltmast
By pressing the "Limits" softkey, the following screen will be shown.

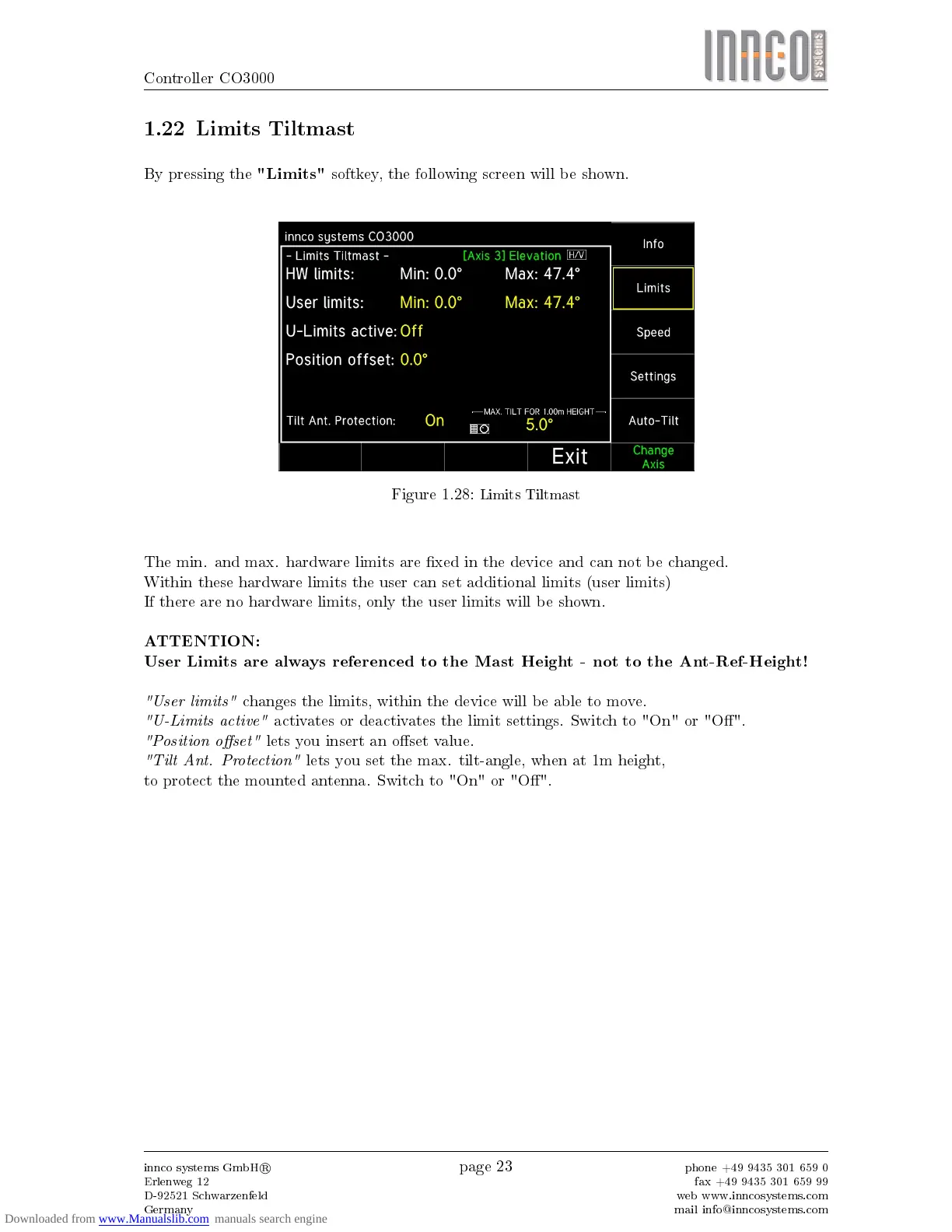

Figure 1.28: Limits Tiltmast
The min. and max. hardware limits are xed in the device and can not be changed.
Within these hardware limits the user can set additional limits (user limits)
If there are no hardware limits, only the user limits will be shown.
ATTENTION:
User Limits are always referenced to the Mast Height - not to the Ant-Ref-Height!
"User limits" changes the limits, within the device will be able to move.
"U-Limits active" activates or deactivates the limit settings. Switch to "On" or "O".
"Position oset" lets you insert an oset value.
"Tilt Ant. Protection" lets you set the max. tilt-angle, when at 1m height,
to protect the mounted antenna. Switch to "On" or "O".
