Slider Setup
2 Slider Setup
2.1 Brief Description
The slider is an additional unit to the antenna mast with auto-tilt function.
A toothed bar, mounted to the oor and a drive unit, mounted to the mast are the main components.
How to set up the toothed bar and the antenna mast is described in this manual.
2.2 Antenna Polarization
Please follow the steps as shown below. If necessary, take the controller manual at hand.

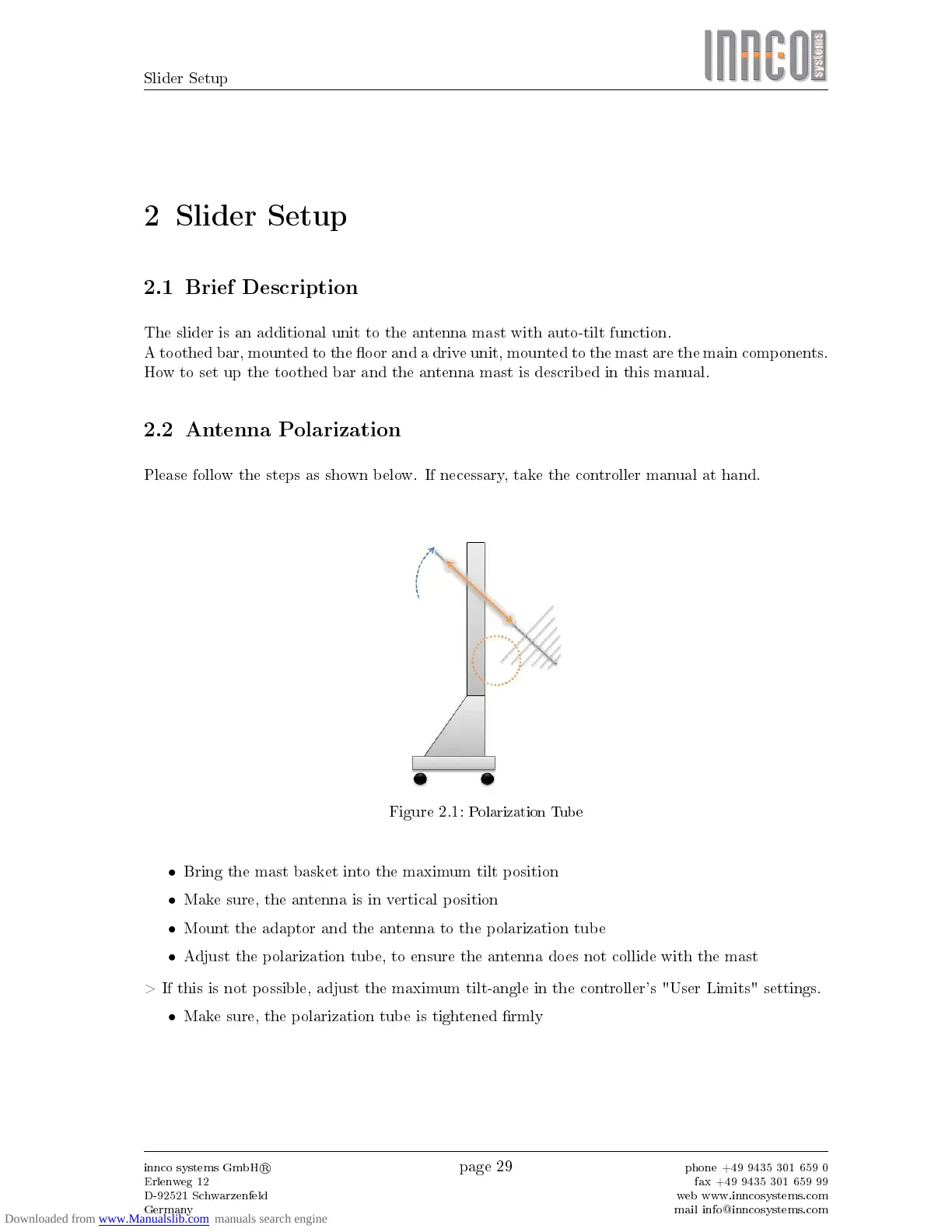

Figure 2.1:
Polarization Tube
•
Bring the mast basket into the maximum tilt position
•
Make sure, the antenna is in vertical position
•
Mount the adaptor and the antenna to the polarization tube
•
Adjust the polarization tube, to ensure the antenna does not collide with the mast
> If this is not possible, adjust the maximum tilt-angle in the controller's "User Limits" settings.
•
Make sure, the polarization tube is tightened rmly
