Slider Setup
2.3 Toothed Bar Setup

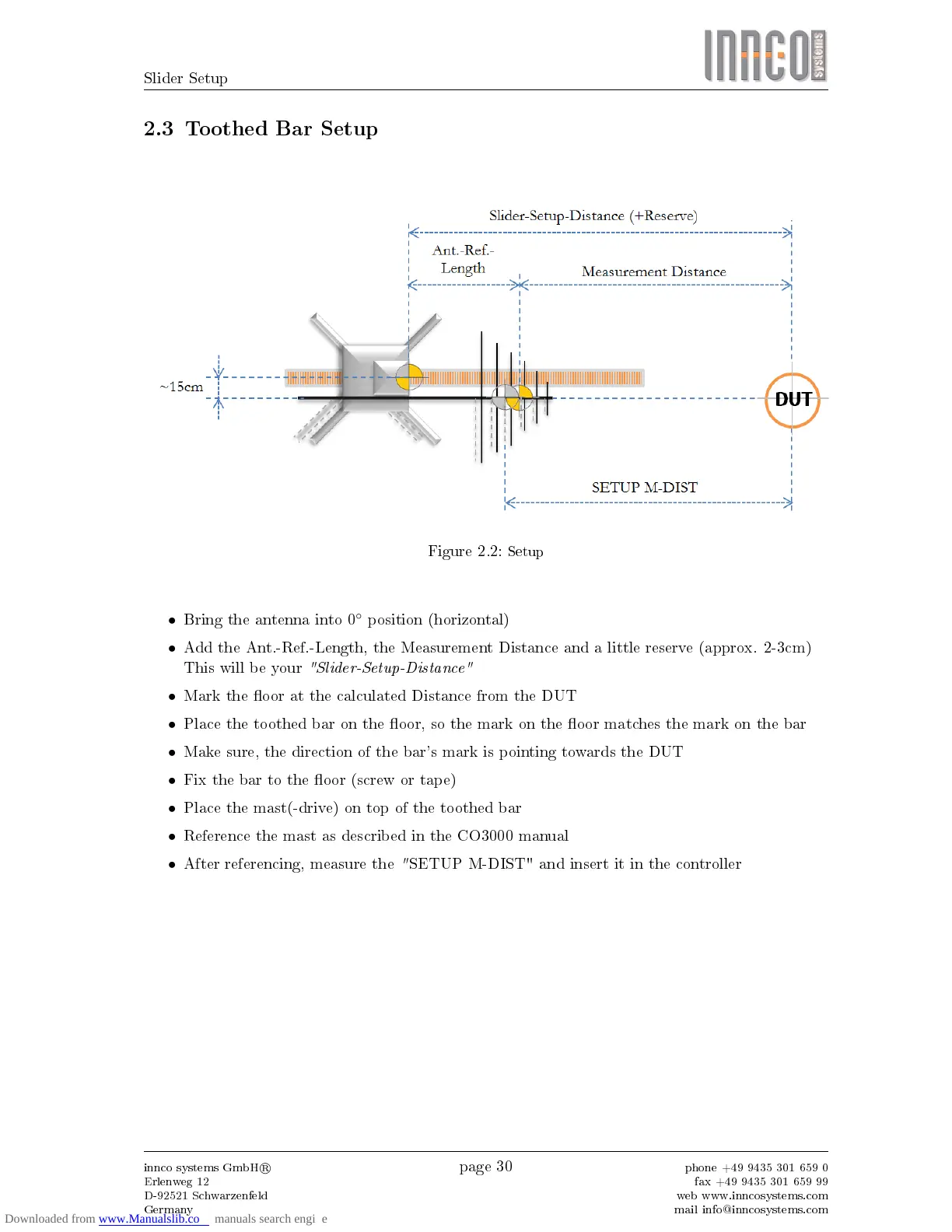

Figure 2.2: Setup
• Bring the antenna into 0
◦
position (horizontal)
• Add the Ant.-Ref.-Length, the Measurement Distance and a little reserve (approx. 2-3cm)
This will be your "Slider-Setup-Distance"
• Mark the oor at the calculated Distance from the DUT
• Place the toothed bar on the oor, so the mark on the oor matches the mark on the bar
• Make sure, the direction of the bar's mark is pointing towards the DUT
• Fix the bar to the oor (screw or tape)
• Place the mast(-drive) on top of the toothed bar
• Reference the mast as described in the CO3000 manual
• After referencing, measure the " SETUP M-DIST" and insert it in the controller
