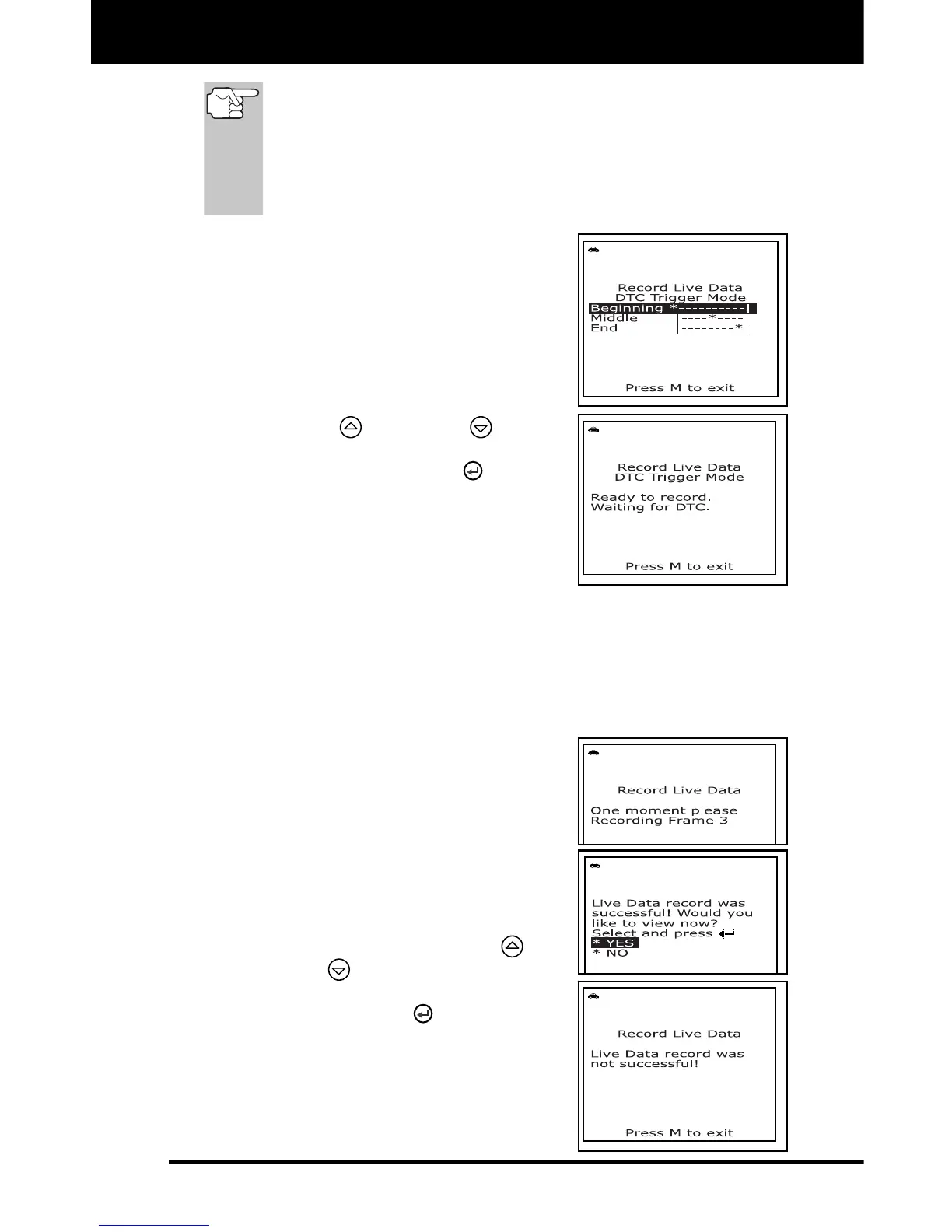

Live Data Mode
RECORDING (CAPTURING) LIVE DATA
108 3140d
The scan tool is capable of recording approximately 100
frames of Live Data. Record by DTC trigger lets you select the
point in time at which you wish the scan tool to begin recording
Live Data. You can set the trigger point to record the 100
frames of data before an event (when the DTC sets), after the
event, or in the middle (50 frames before and 50 frames after
the event.
Beginning - records approximately
100 frames of Live Data after the
DTC sets.
Middle - records approximately 50
frames of Live Data before and 50
frames after the DTC sets.
End - records approximately 100
frames of Live Data before the DTC
sets.
6. Use the UP
and DOWN buttons,
as necessary, to select the desired trigger
point, then press the ENTER
button.
A "One moment please. . ." message
shows on the display. When the scan
tool is ready to record Live Data, the
"Record Live Data" screen displays.
7. Put the engine in the operating condition
that causes the DTC to set.
If necessary, drive the vehicle until you reach the vehicle speed
at which the problem occurs.
8. When the scan tool detects a fault that causes a DTC to set, it
automatically records and saves approximately 20 frames of Live
Data information in its memory (according to your trigger selection)
for each PID supported by the vehicle.
All three LEDs will blink for three
seconds to indicate that Live Data is
being recorded, and a "One moment
please..." message shows on the
display, along with the number of
the frame being recorded.
When recording is complete, a
confirmation screen displays, asking
if you would like to view the
recorded data. Use the UP
and
DOWN
buttons, as necessary, to
select Yes or No, as desired, then
press the ENTER
button.
If recording was not successful, an
advisory message shows on the
display. Press the M button to return
to the Record Live Data menu.
