peripheral is replaced. For key exchanging, please power on unit in ccTalk protocol and wait for a several seconds
for key exchanging.
Use configuration button for rollback any previously set ccTalk key to original (see Configuration Button Functions).
Escrow Control
The BV30 has a single note escrow facility. This allows the BV30 to hold onto the note once validated, and then only
stack the note into a cashbox when the host machine confirms that the Vend operation has been completed. If no
confirmation of the Vend is received, then the note will be returned to the user after 30 seconds. If the host machine
itself aborts the transaction by setting the corresponding inhibit input high, the note is returned immediately. The

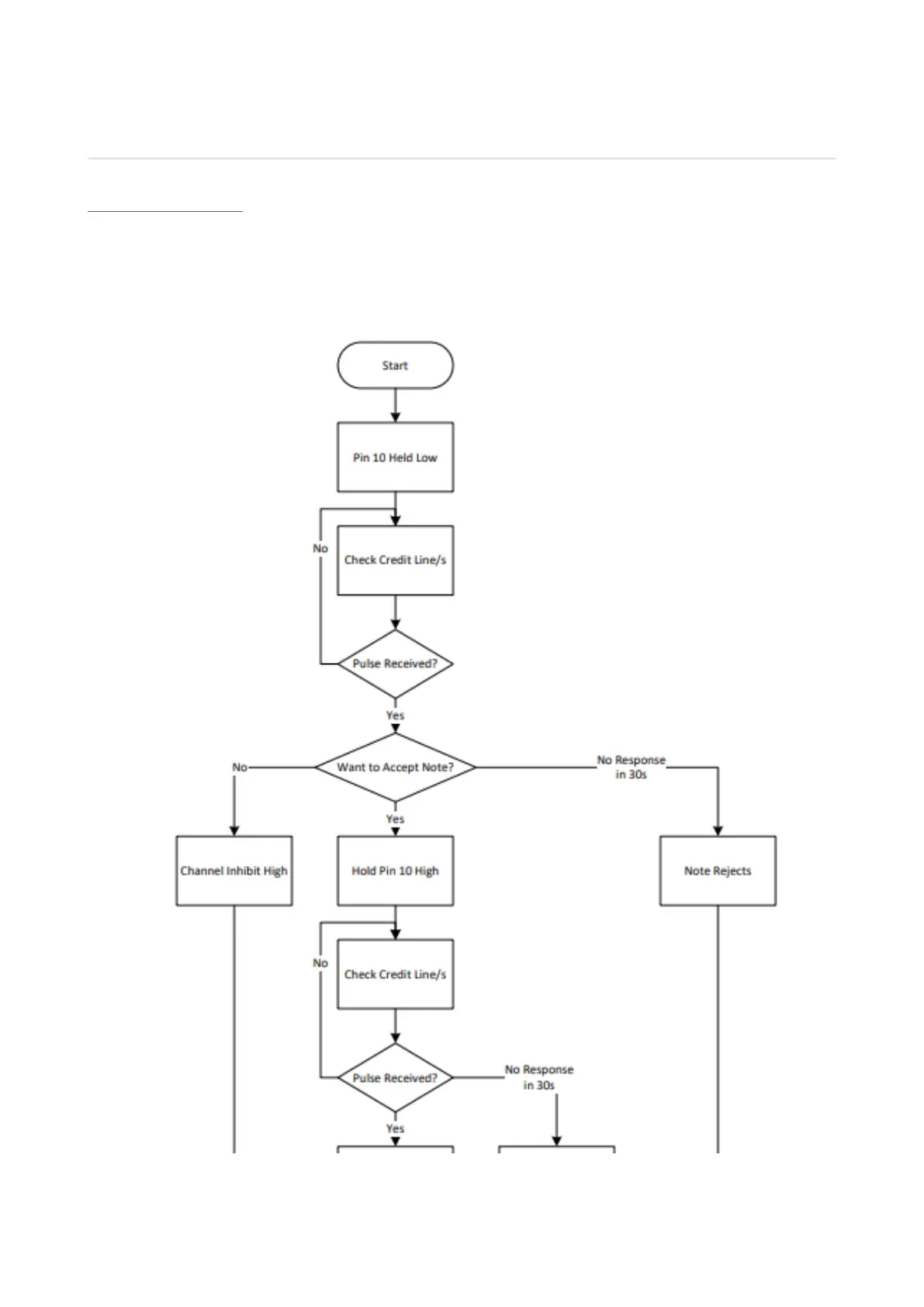

sequence of operation is as follows:
