BV30 User Manual – 49

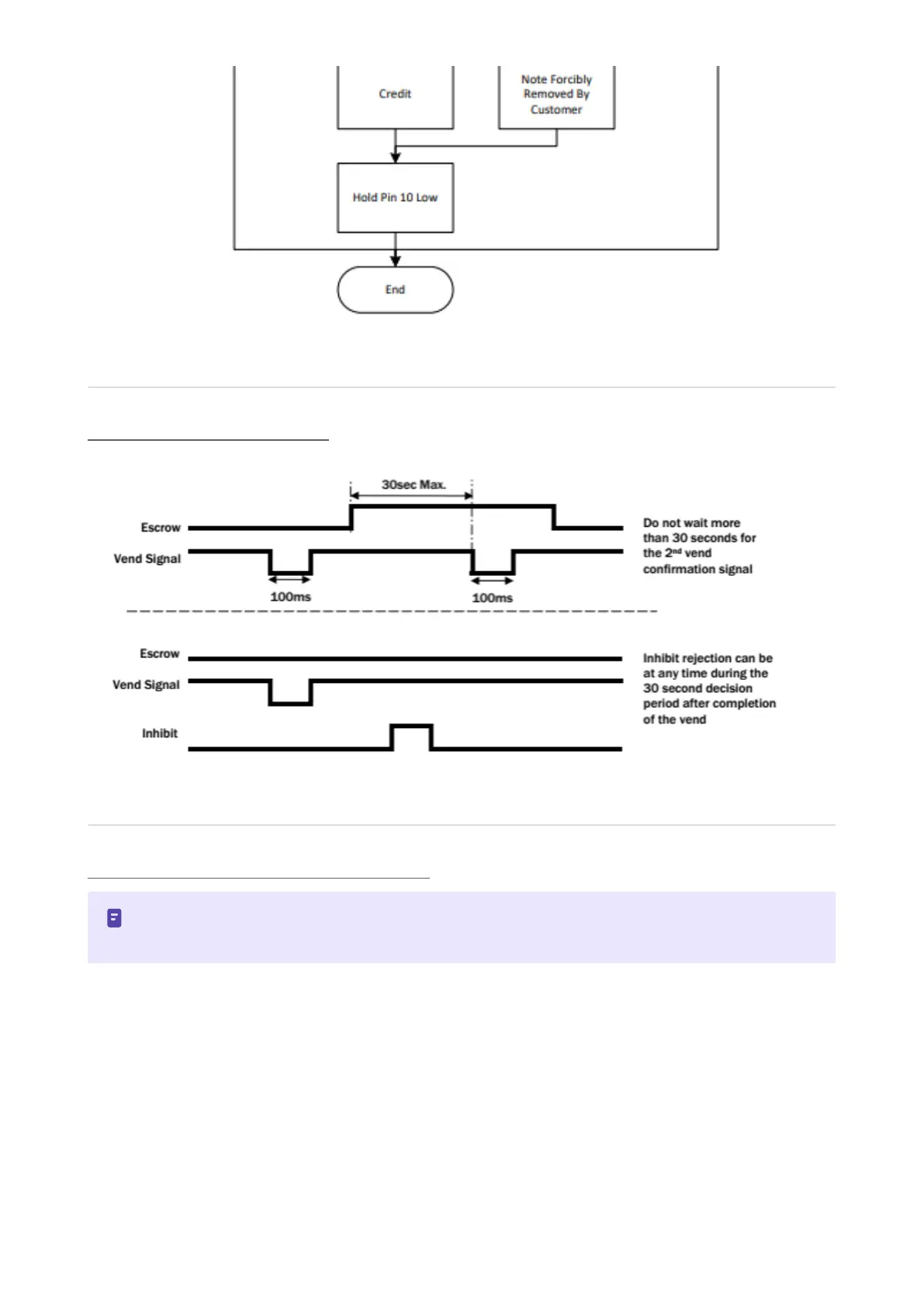

Escrow Timing Diagram
Low Power Mode Timing Diagram
Low Power Mode can be used with all none serial communication protocols to reduce the power consumption of
the BV30 when idle. When the BV30 is in this state the current consumption is reduced to approximately 1.2mA. The
BV20 goes into low power mode approximately 4 seconds after the validator is powered up and remains in this state
until a note is entered (Time A). Following a note insertion the BV30
returns to Low Power mode approximately 1 second after the Busy line goes High (After credit is given or note is
rejected). (Time B)
Low Power mode uses 3 control lines: Vend – Pin 1, Inhibit – Pin 5 and Busy – Pin 9
Low Power Mode can ONLY be used with the above Parallel, Pulse and Binary protocols and only be
enabled by correctly completing the configuration cards or Validator Manager program.
