3 Peripheral Devices and Options
-
103
-
Controller Model
Rated Output Current (A)
AC Output Reactor Model (Inovance)
220-NICE-L-C-4011 15.5 MD-OCL-20-0.35-4T-1%
220-NICE-L-C-4015 19 MD-OCL-20-0.35-4T-1%
220-NICE-L-C-4018
22.5 MD-OCL-30-0.23-4T-1%
220-NICE-L-C-4018F
220-NICE-L-C-4022
27.7 MD-OCL-30-0.23-4T-1%
220-NICE-L-C-4022F
220-NICE-L-C-4030
34.6 MD-OCL-40-0.18-4T-1%
220-NICE-L-C-4030F
■

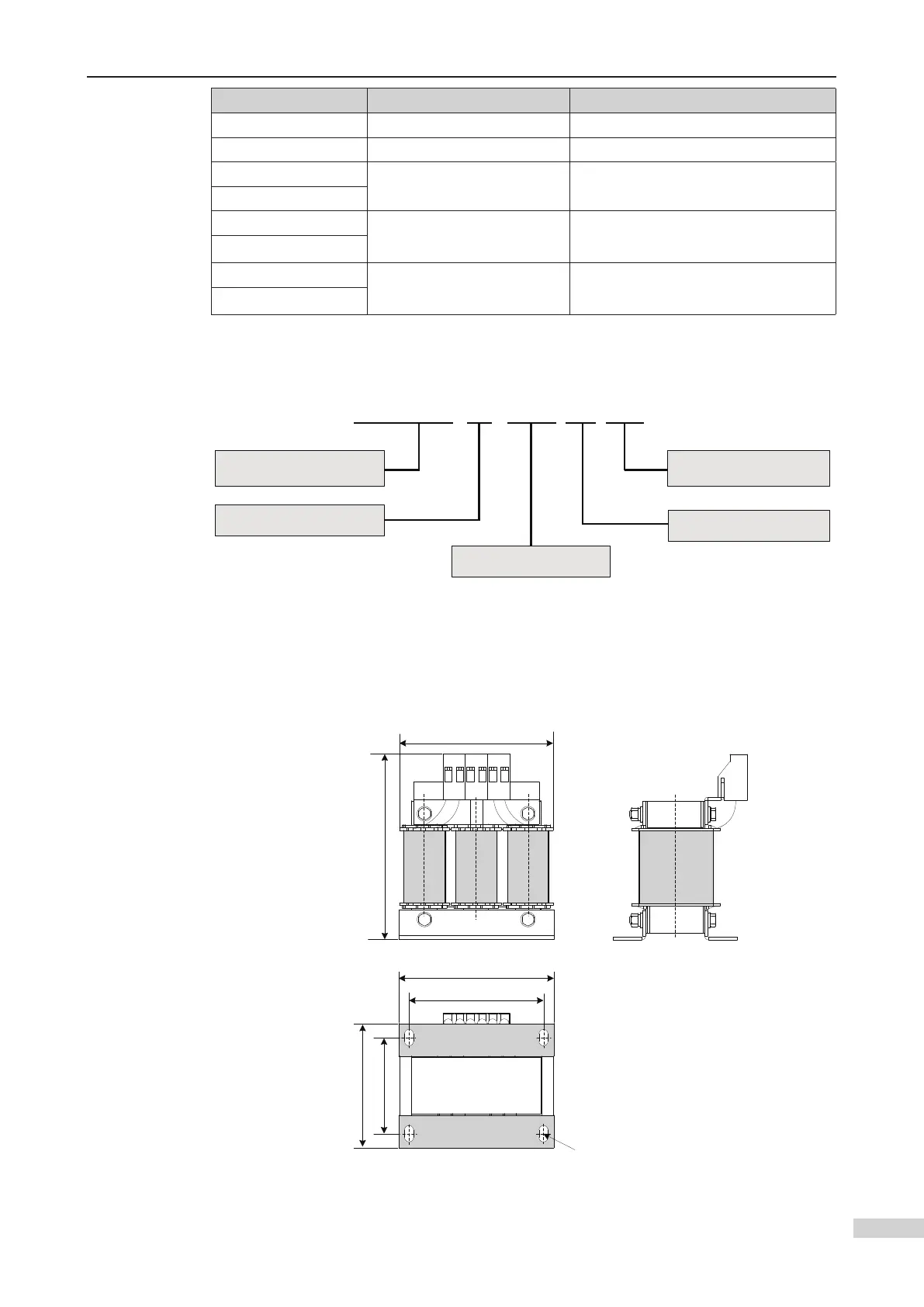

Designation rule of AC output reactor
MD-OCL-50-0.14-4T-1%
Inductance: 0.14 mH
Rated current: 50 A
Voltage drop
percentage: 1%
Rated voltage: 380 V
Inovance AC output
reactor
󶙽Designation rule of AC output reactor
■
Physical dimensions of AC output reactor

D
A
E
G
B
F
C
U
X V Y W
Z
󶙽
