3 Peripheral Devices and Options
-
106
-

U V W
X Y Z
A
D
B C
H
F
G
J
E
K
M
L
I
U
X

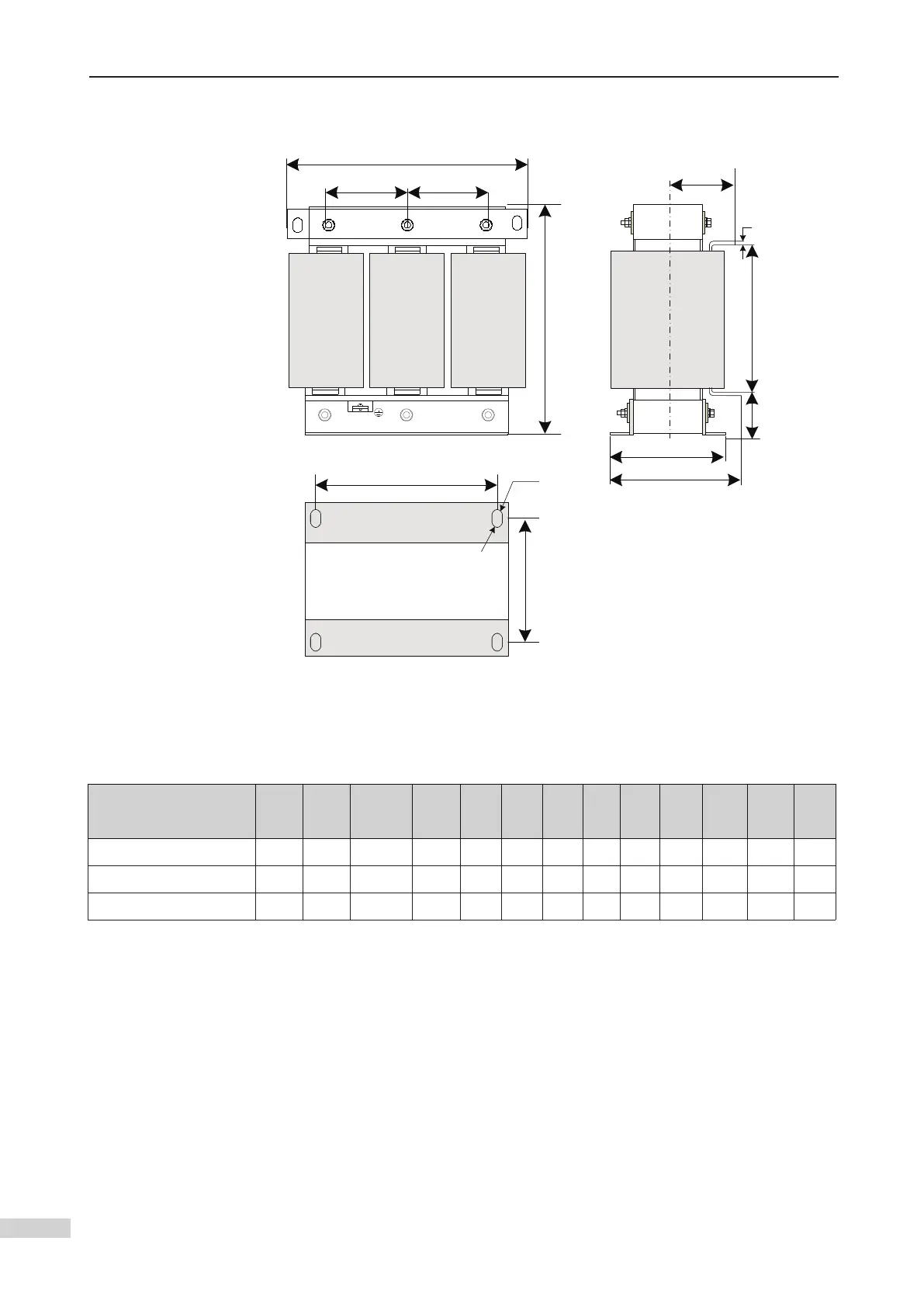

󶙽Physical dimension diagram of 150-250A AC output reactor
󶙽Physical dimensions of 150-250A AC output reactor
Rated motor current
(A)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
H
(mm)
I
(mm)
J
(mm)
K
(mm)
L
(mm)
M
(mm)
150 250 81 81 230 97 5 140 113 170 42 182  87
200 250 81 81 230 102 5 140 123 175 42 182  97
250 250 81 81 230 102 5 140 123 175 42 182  97
