Physical dimensions of 330 A AC output reactor
U V
W
X Y Z
A
C
B
D
E
U
X
H
J
I
F
G
K
M
L

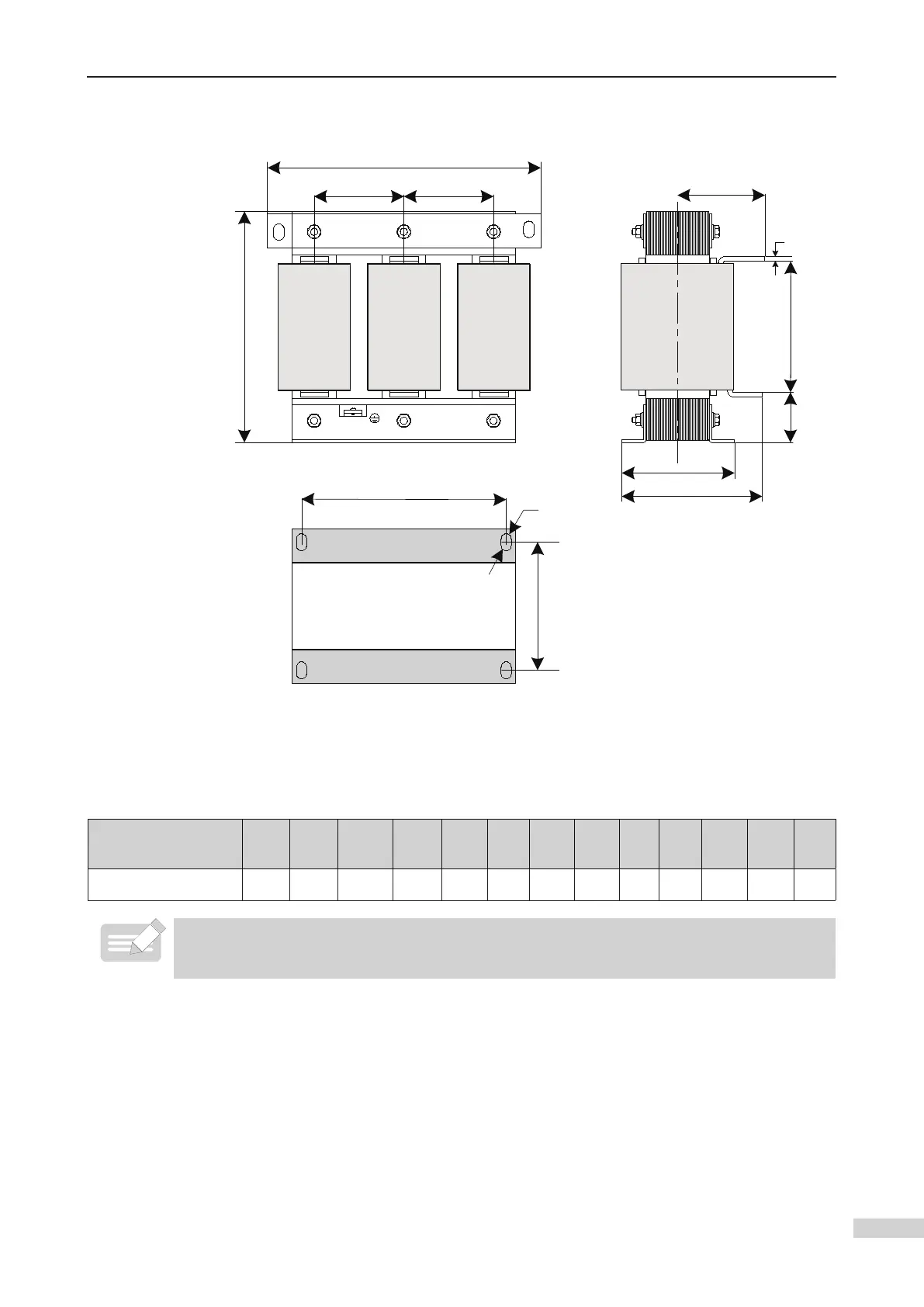

󶙽Physical dimension diagram of 330 A AC output reactor
󶙽Physical dimensions of 330 A AC output reactor
Rated motor current
(A)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
H
(mm)
I
(mm)
J
(mm)
K
(mm)
L
(mm)
M
(mm)
330 290 95 95 250 110 5 155 132 190 45 214  106
NOTE
◆
The dimensions of the AC reactors provided here are for reference only, and the actual
dimensions are subject to the material product.
