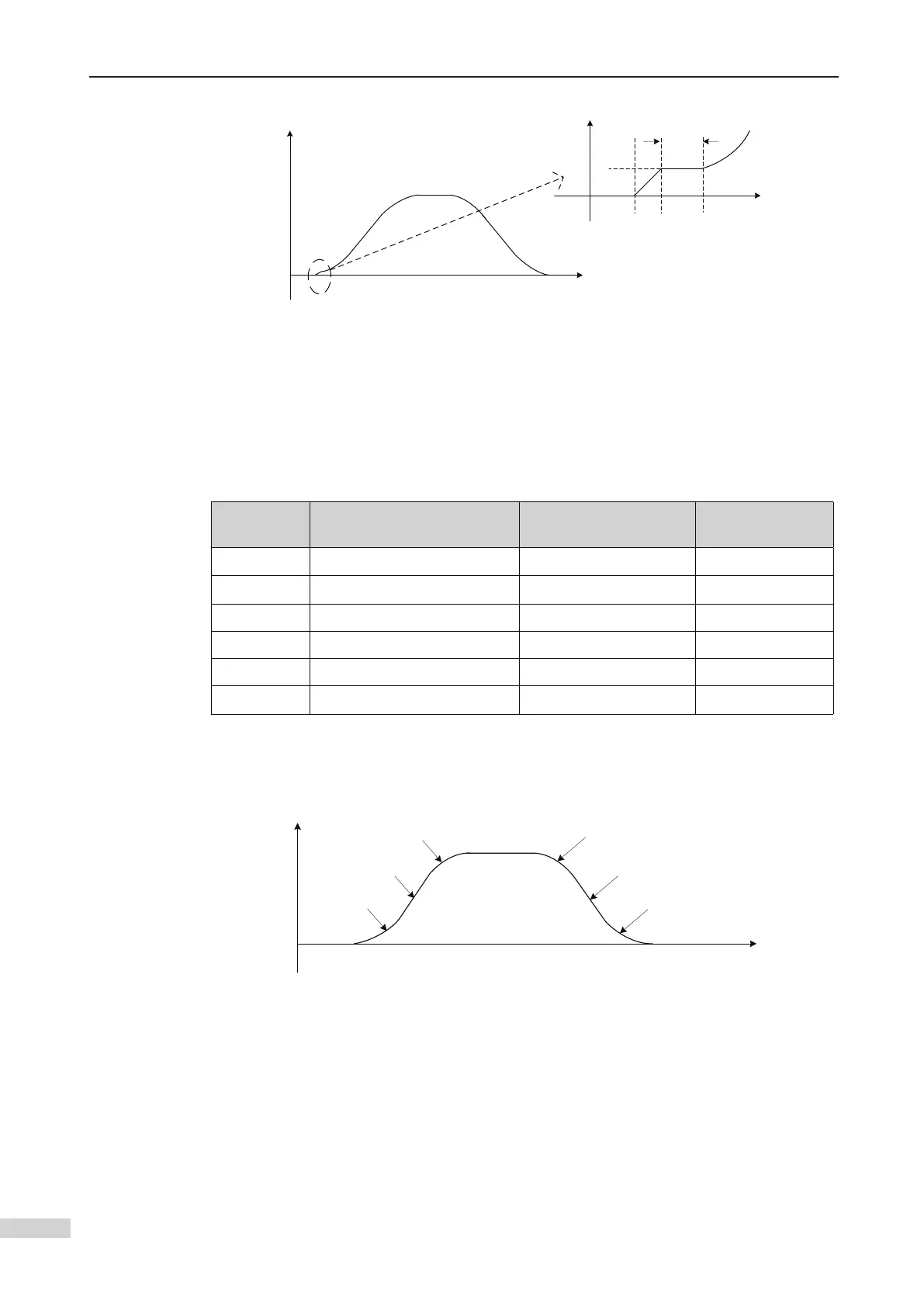

5 System Commissioning
-
172
-
V (speed)
V (speed)
F3-01
F3-00
t (time)
t (time)
Bad riding comfort due to static friction may often exist in villa elevators. When there
is large friction between the guide shoes and the guide rails, large static friction gen-
erates at the moment of startup, leading to bad riding comfort. Make the system starts
-
prove riding comfort.
2) Riding comfort adjustment to the running curve
Function
Code
Name Setting Range Default
F3-02 Acceleration rate 0.200 to 1.500 0.700
F3-03 Acceleration start jerk time 0.300 to 4.000 1.500
F3-04 Acceleration end jerk time 0.300 to 4.000 1.500
F3-05 Deceleration rate 0.200 to 1.500 0.700
F3-06 Deceleration end jerk time 0.300 to 4.000 1.500
F3-07 Deceleration start jerk time 0.300 to 4.000 1.500
Running curve
V (speed
)
F3-03
F3-
06
F3-04
F3-02
F3-05
F3-
07
t (time
)
F3-02, F3-03, and F3-04 are used to set the running curve during which the elevator
accelerates from startup to the maximum speed. If the acceleration process is too
short causing bad riding comfort, decrease F3-02 and increase F3-03 and F3-04 to
make the acceleration curve smoother. If the acceleration process is too long, increase
the value of F3-02 and decrease the values of F3-03 and F3-04.
Adjust F3-05, F3-06, and F3-07 similarly to make the deceleration process appropriate.
