6 Parameter Description
-
240
-

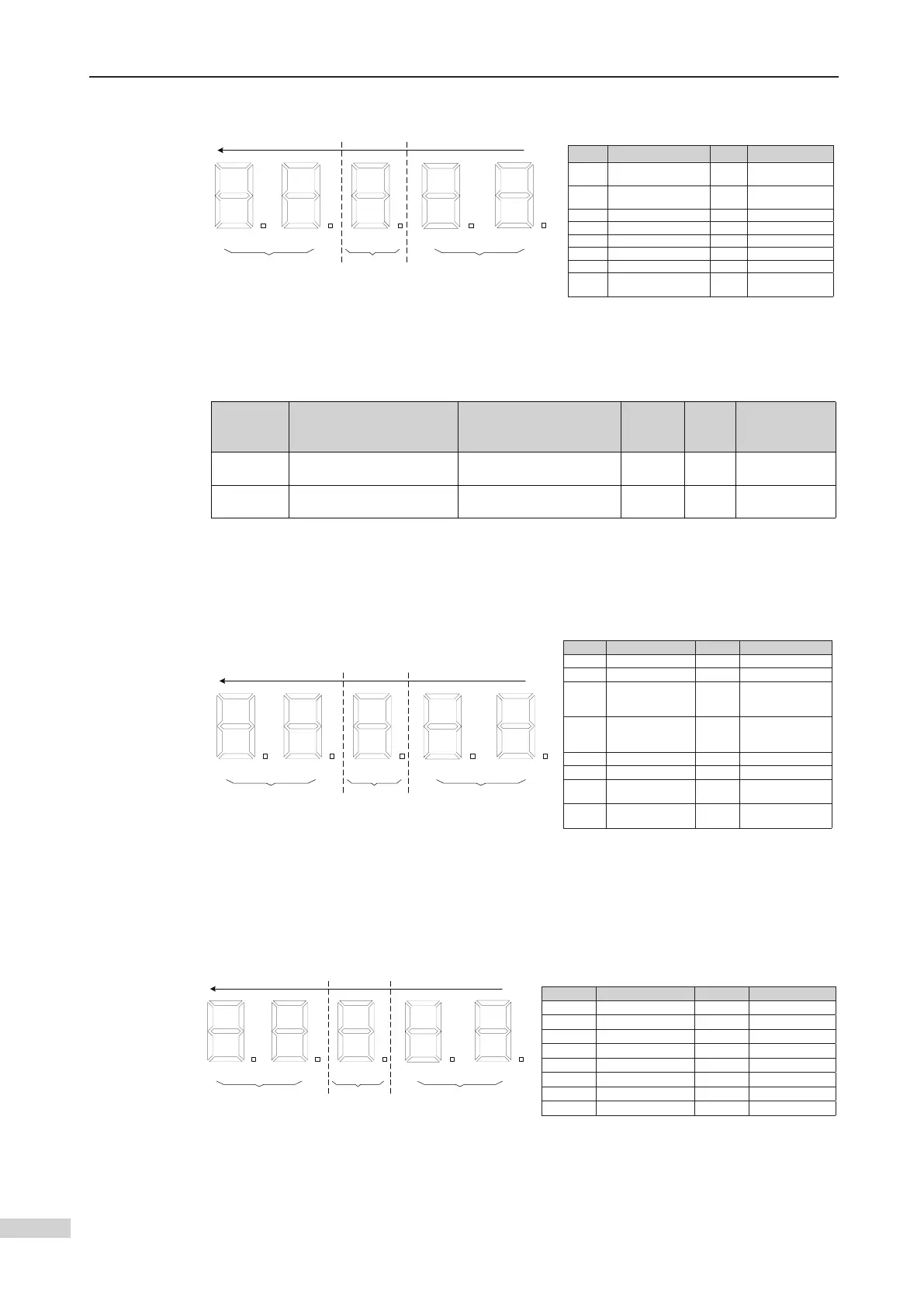

Description of FA-32 input state 2 display
Number 󶍾 Number 󶍾
16
Higher-voltage startup of
brake
24 Reserved
17
Elevator running in up
direction
25 Reserved
18 Lamp/Fan running 26 Reserved
19 Medical sterilization 27 Reserved
20 Non-door zone stop 28 Reserved
21 Electric lock 29 Reserved
22 Non-service state 30 Reserved
23
Emergency evacuation
completed
31 Reserved
24
25
26
27
28
29
30
31
5
4 3
2
16
17
18
19
20
21
22
23
1
Present signal No.
State of present
signal：
0: Inactive
1: Active
Each segment
indicates a signal
󶙽FA-32 input state 2
Function
Code
Name Setting Range Default Unit Property
FA-33 Car input state 0 to 65535 0  
FA-34 Car output state 0 to 65535 0  
FA-33 and FA-34 are used to display the car input and output states. Their operating
instructions are the same as the MCB input and output display.
Description of FA-33 car input display
Number 󶍾 Number 󶍾
0 Reserved 8 Overload input
1 Door 1 light curtain 9 Light-load signal
2 Door 2 light curtain 10
Up leveling
communication
state
3 Door 1 open limit 11
Down leveling
communication
state
4 Door 2 open limit 12 Reserved
5 Door 1 close limit 13 Inspection signal
6 Door 2 close limit 14
Running in up
direction
7 Full-load input 15
Running in down
direction
8
9
10
11
12
13
14
15
5
4 3
2
0
1
2
3
4
5
6
7
1
Present signal No.
State of present
signal：
0: Inactive
1: Active
Each segment
indicates a signal
󶙽FA-33 car input state
Description of FA-34 car output display
Number 󶍾 Number 󶍾
0 Reserved 8 Down arrival gong
1 Door 1 open 9 Reserved
2 Door 1 close 10 Reserved
3 Forced door close 1 11 Reserved
4 Door 2 open 12 Reserved
5 Door 2 close 13 Reserved
6 Forced door close 2 14 Reserved
7 Up arrival gong 15 Reserved
8
9
10
11
12
13
14
15
5
4 3
2
0
1
2
3
4
5
6
7
1
Present signal No.
State of present
signal：
0: Inactive
1: Active
Each segment
indicates a signal
󶙽FA-34 car output state
