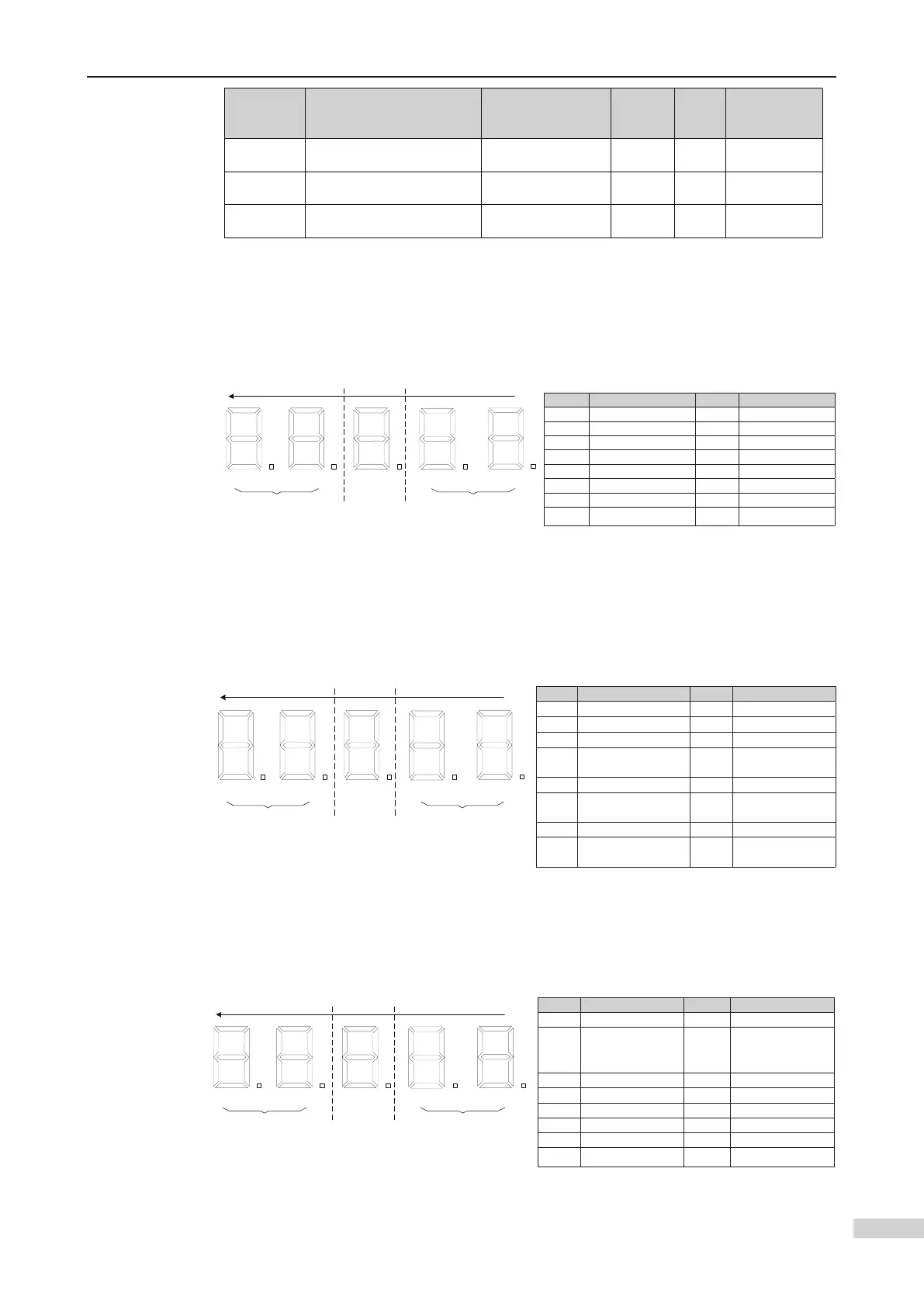

6 Parameter Description
-
241
-
Function
Code
Name Setting Range Default Unit Property
FA-35 Hall sate 0 to 65535 0  
FA-36 System state 1 0 to 65535 0  
FA-37 System state 2 0 to 65535 0  
These parameters are used to display the hall and system states. Their operating
instructions are the same as the MCB input and output display.
Description of FA-35 hall state display
Number 󶍾 Number 󶍾
0 Reserved 8 Reserved
1 Elevator lock signal 9 Reserved
2 Fire emergency signal 10 Reserved
3 󶍿 11 Reserved
4 VIP signal 12 Reserved
5 Security signal 13 Reserved
6 Door close button input 14 Reserved
7 Reserved 15 Reserved
8
9
10
11
12
13
14
15
5
4 3
2
0
1
2
3
4
5
6
7
1
Present signal No.
State of present
signal：
0: Inactive
1: Active
Each segment
indicates a signal
󶙽FA-35 hall state
Description of FA-36 system state 1 display
Number 󶍾 Number 󶍾
0 Door open 1 button 8 Door open 2 button
1 Door close 1 button 9 Door close 2 button
2 Door open delay 1 10 Door open delay 2
3
Direct travel ride
switch
11 Reserved
4 Attendant switch 12 Reserved
5
Direction change
switch
13 Reserved
6 Independent switch 14 Reserved
7
Fire emergency 2
switch
15 Reserved
8
9
10
11
12
13
14
15
5
4 3
2
0
1
2
3
4
5
6
7
1
Present signal No.
State of present
signal：
0: Inactive
1: Active
Each segment
indicates a signal
󶙽FA-36 system state 1
Description of FA-37 system state 2 display
Number 󶍾 Number 󶍾
0 Up direction display 8 Reserved
1 Down direction
display
9 Reserved
2 Running state 10 Reserved
3 System full-load 11 Reserved
4 System overload 12 Reserved
5 System half-load 13 Reserved
6 System light-load 14 Reserved
7 Reserved 15 Reserved
8
9
10
11
12
13
14
15
5
4 3
2
0
1
2
3
4
5
6
7
1
Present signal No.
State of present
signal：
0: Inactive
1: Active
Each segment
indicates a signal
󶙽FA-37 system state 2
