Inovance Monarch NICE-L-C-4037F

2 Installation and Wiring
-
50
-
(-)(+)
R S T
POWER
PB
U V W
MOTOR

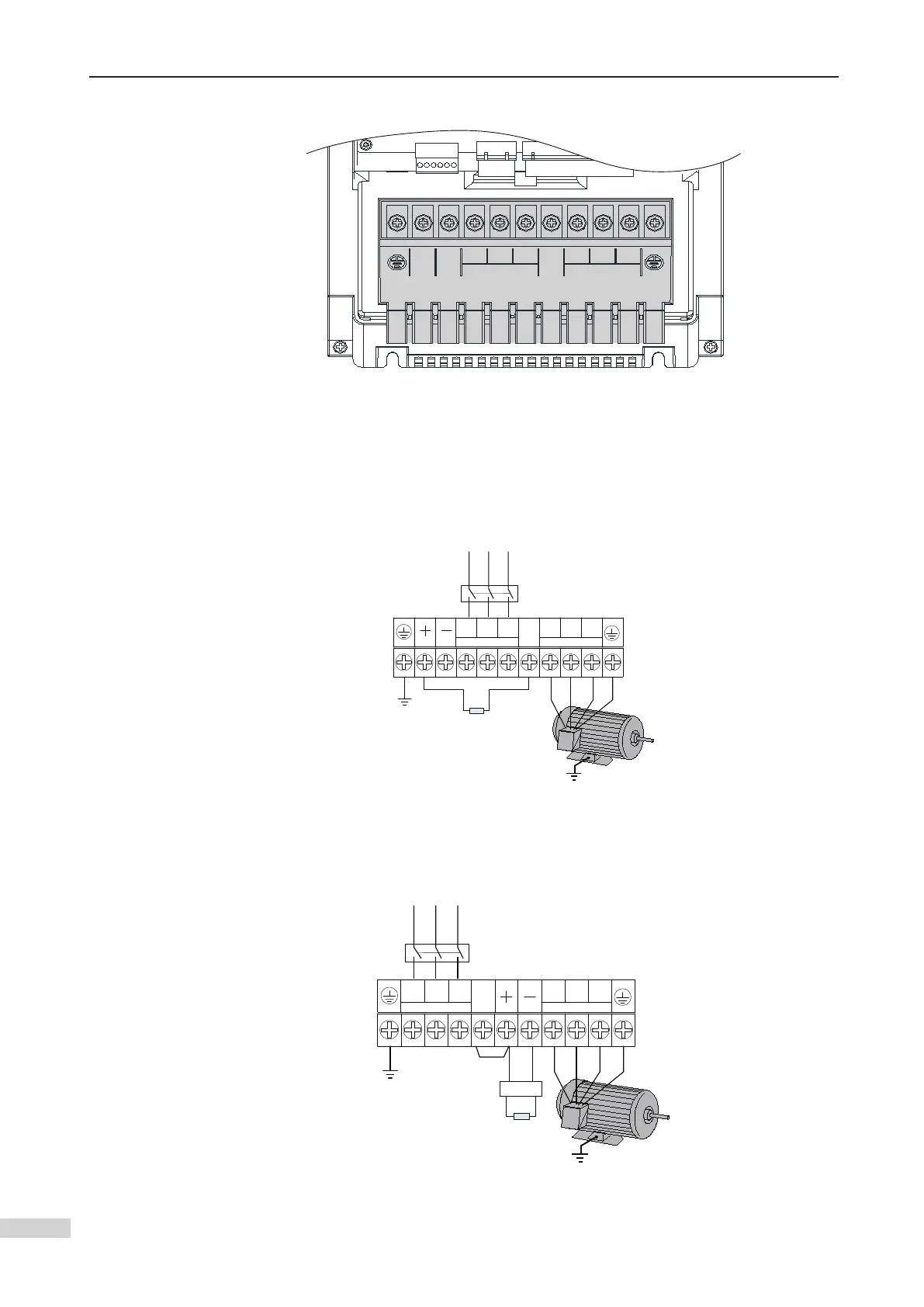

󶙽Main circuit terminal arrangement
For models of below 37 kW (F model 45 kW)
R
S
T
PB
U
V
W
POWER MOTOR
Three-phase
power supply
Safety contactor
Regen. resistor
For models of 37 kW and above (F model 45 kW)
Braking unit
R
S
T
P
U
V
W
POWER
MOTOR
Three
-phase AC
power supply
Safety contactor
Regen
. resistor
MDBUN
Jumper bar
󶙽Main circuit connection diagram
