2 Installation and Wiring
-
55
-
󶙽󶍾
Controller Model
Rated Input
Current (A)
Recommended I/O
Power Cable (mm
2
)
Torque of Torque
Driver (N·m)
Recommended
Cable Lug Model
NICE-L-C-4002 6.5 2.5 1.2 GTNR2.5-4
NICE-L-C-4003 10.5 2.5 1.2 GTNR2.5-4
NICE-L-C-4005 14.8 2.5 1.2 GTNR2.5-4
NICE-L-C-4007 20.5 4 2.5 GTNR4-5
NICE-L-C-4011 29.0 6 2.5 GTNR6-5
NICE-L-C-4015 36.0 6 2.5 GTNR6-5
NICE-L-C-4018 41 10 4.0 GTNR10-6
NICE-L-C-4018F 41 10 4.0 GTNR16-6
NICE-L-C-4022 49.5 10 4.0 GTNR16-6
NICE-L-C-4022F 49.5 10 4.0 GTNR16-6
NICE-L-C-4030 62 16 4.0 GTNR16-6
NICE-L-C-4030F 62 16 4.0 GTNR16-6
NICE-L-C-4037F 62 25 4.0 GTNR16-6
R S T
POWER
U V W
MOTOR
(-)
(+)
P
10
27
M8 combination screw
24

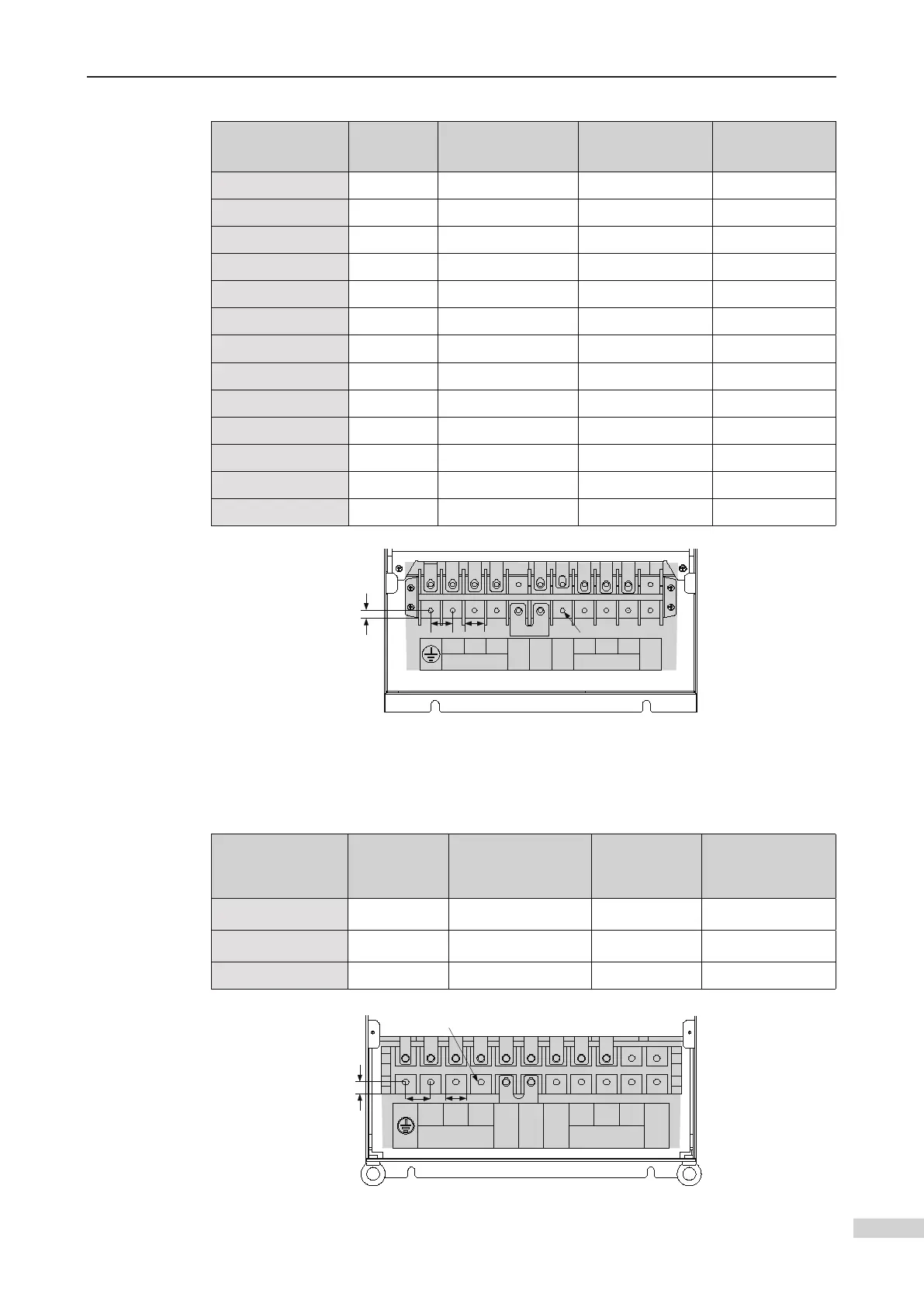

󶙽Main circuit cable terminal and size diagram of sheet metal structure, Size F
󶙽󶍾
Controller Model
Rated Input
Current (A)
Recommended I/O
Power Cable (mm
2
)
Torque of
Torque Driver
(N·m)
Recommended
Cable Lug Model
NICE-L-C-4037 77 25 10.5 TNR0.75-4
NICE-L-C-4045 93 35 10.5 TNR1.25-4
NICE-L-C-4055 113 50 10.5 GTNR2.5-4
M10 combination screw
17
36
30
R S T
POWER
U V W
MOTOR
(-)(+)
P
󶙽Main circuit cable terminal and size diagram of sheet metal structure, Size G
