2 Installation and Wiring
-
57
-

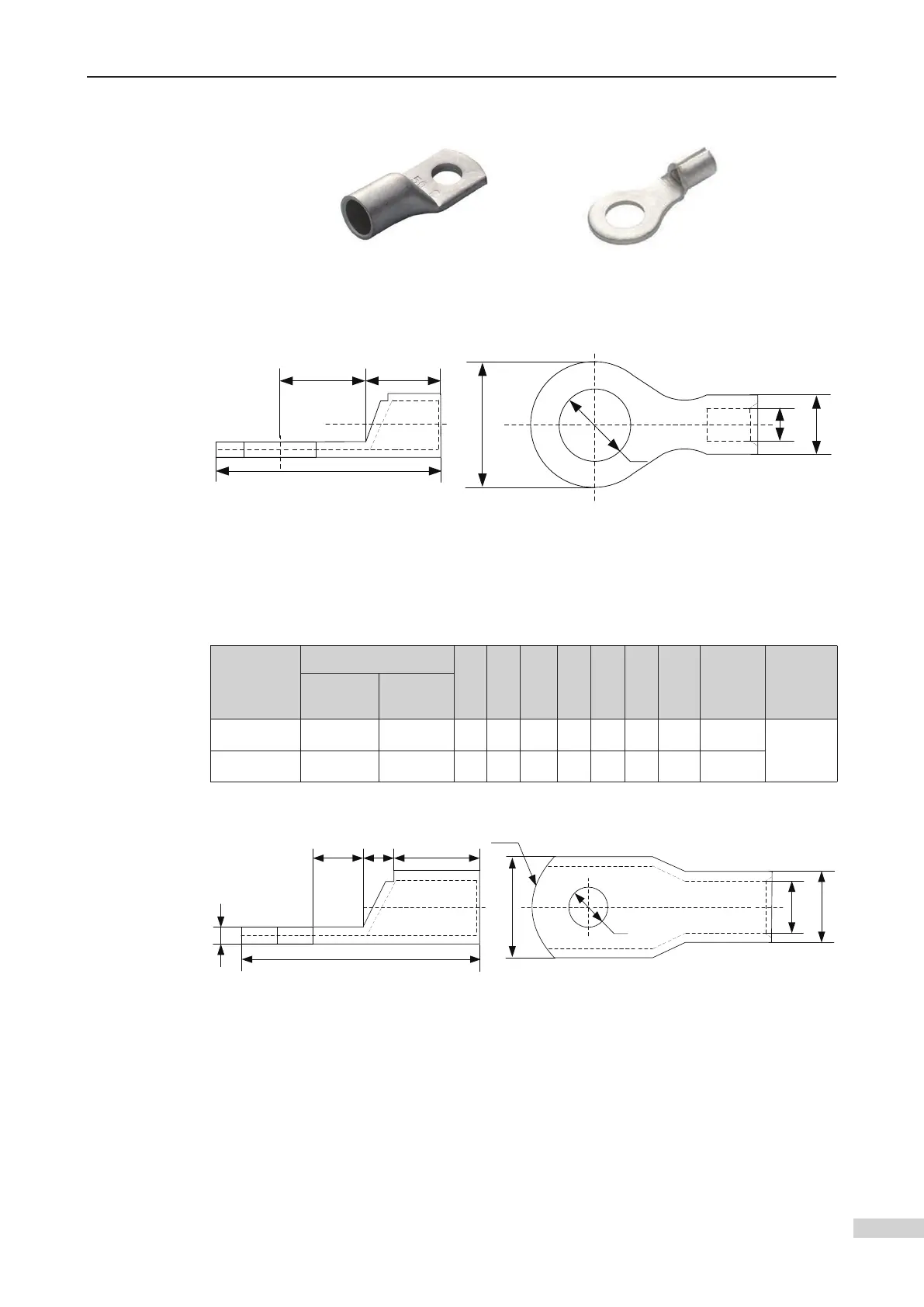

Reference data for recommended lugs (Suzhou Yuanli Metal Enterprise Co., Ltd)
GTNR series TNR series
L
B
d2
d1
D
E
F
󶙽Dimensions of TNR series cable lugs
󶙽Model and size of TNR series cable lugs
Model
Cable Range
D d1 E F B d2 L
Current
(A)
Crimping
Plier
AWG/
MCM
mm
2
TNR0.75-4 22-16 0.25-1.0 2.8 1.3 4.5 6.6 8.0 4.3 15.0 10
RYO-8
AK-1M
TNR1.25-4 22-16 0.25-1.65 3.4 1.7 4.5 7.3 8 5.3 15.8 19
B
d1 D
d2
R
L
F
H K E
󶙽Dimensions of GTNR series cable lugs
