Chapter 1
Preinstallation information
This chapter provides information that you need in advance to facilitate installation of
your retrofit system.

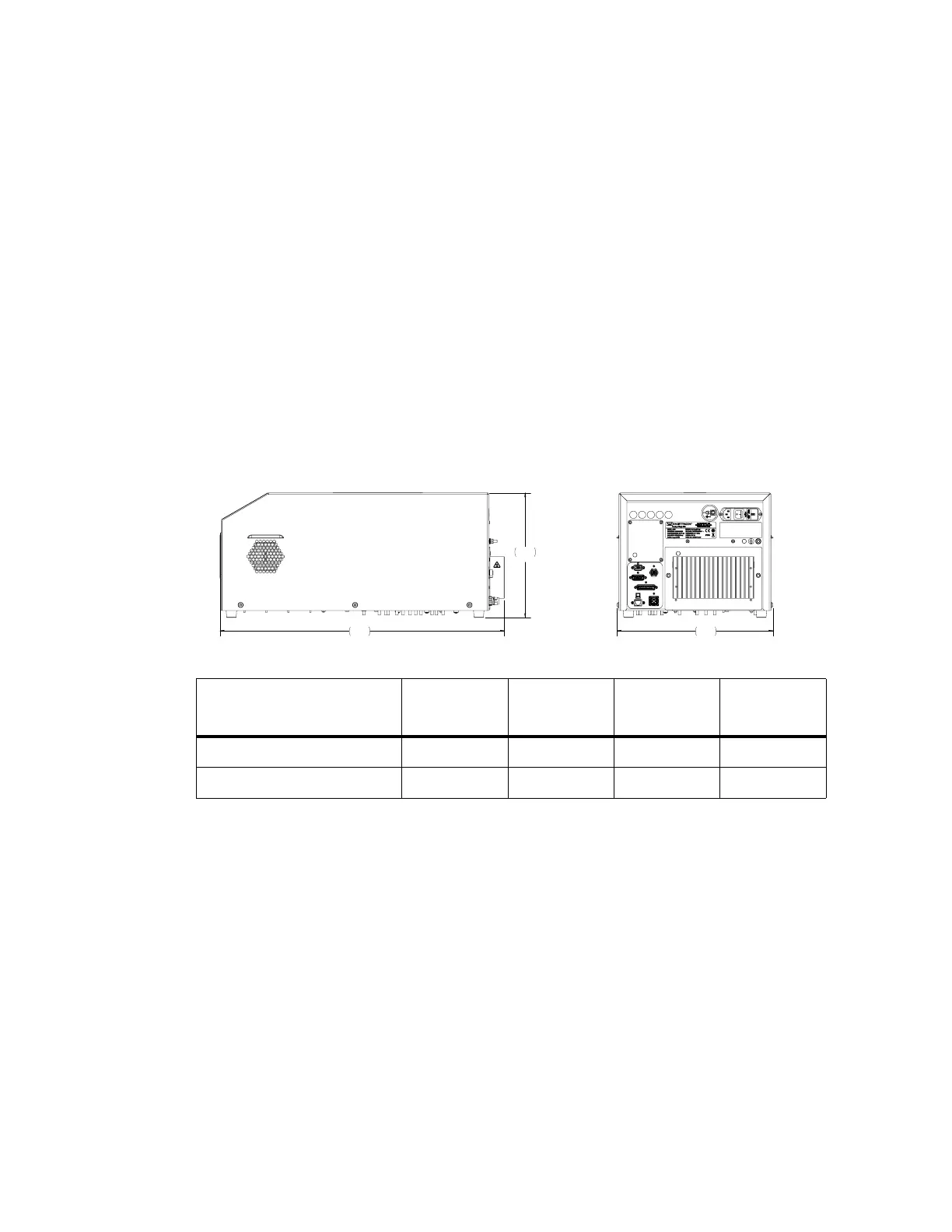

Dimensions and weight
Retrofit Controller
Refer to “System Description and Terminology” on page 20 to see a typical system
layout and note the following:
• the Retrofit Controller can be placed on either side of the load frame or on a bench
or shelf adjacent to the load frame
• the cables connecting the load frame to the Retrofit Controller are 3 m (9.8 ft) long
• the Retrofit Controller power cable is 2.5 m (8.2 ft) long
Component
Height (H)
mm (in)
Width (W)
mm (in)
Length (L)
mm (in)
Weight kg
(lb)
Total system packaged 864 (34) 914 (36) 1143 (45) 62 (136)
Retrofit Controller 285 (11.2) 355 (14) 647 (25.5) 24 (53)
