Chapter: Function of controls
54 M10-17547-EN
Power input connector

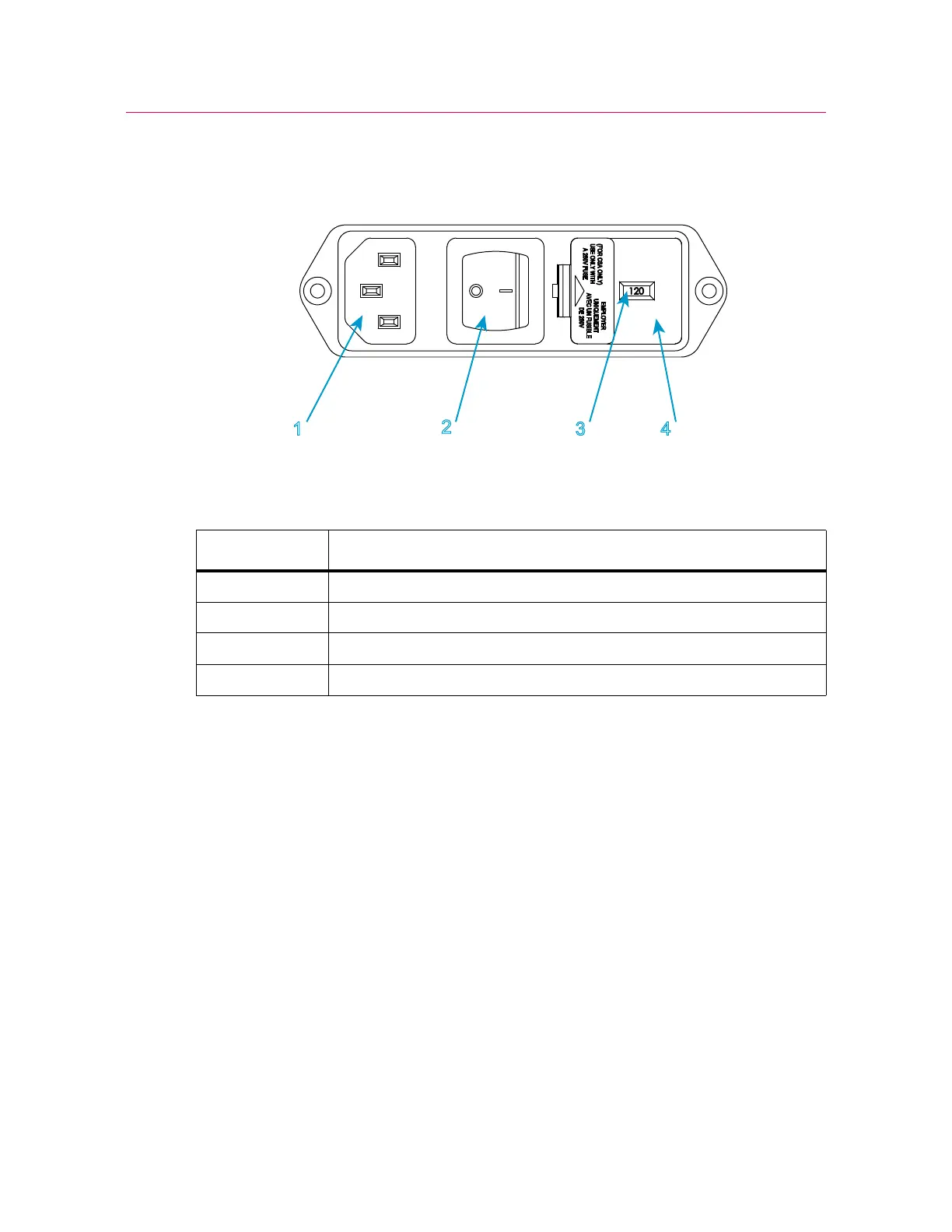

Figure 14. Power input connector
Legend for Figure 14
The power input connector, shown in Figure 14 on page 54, performs the following
functions:
• connects the testing system to the electrical power supply
• contains the ON/OFF switch
• holds the power fuse
• controls the voltage setting. The voltage setting can be changed if necessary, refer
to “Power supply compatibility” on page 39.
The power input connector is located on the rear panel of the Retrofit Controller.
Label Component
1IEC inlet connector
2Power switch
3 Selected voltage
4 Fuse carrier and voltage selector access
