Instron 6800 - Load Frame Connections

Chapter: Installation
44 M10-17547-EN
Load frame connections
Version 1

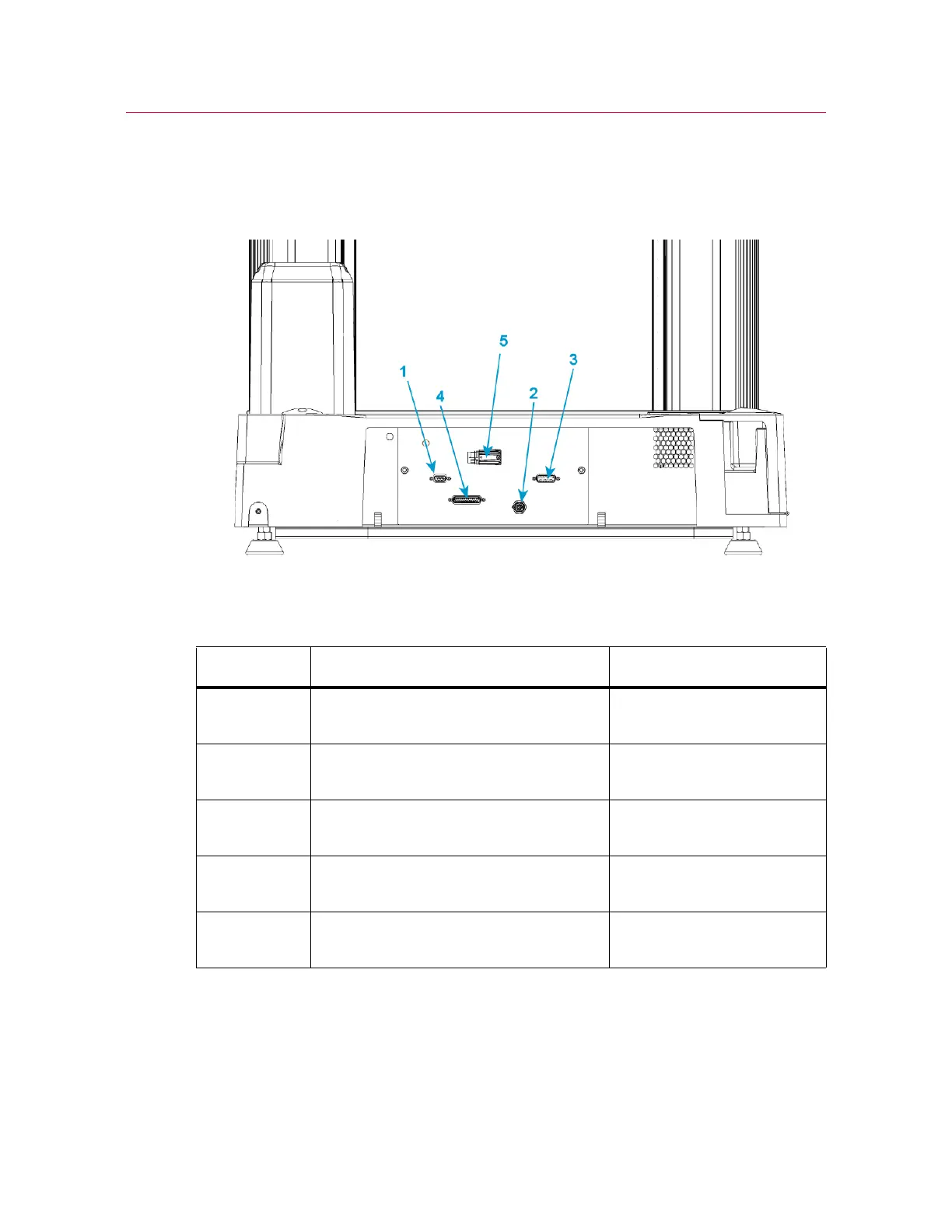

Figure 7. Frame connections
Legend for Figure 7
Label Component More detail
1
FEEDBACK
Motor feedback (encoder) connection Matching connection 1 shown
in Figure 9
4
PANEL
Connection for Indicator panel Matching connection 4 shown
in Figure 9
5
MOTOR
Connection for motor power Matching connection 5 shown
in Figure 9
3
ELS
Connection for limit rod stop, speed sensor
and emergency stop
Matching connection 3 shown
in Figure 9
2
HANDSET
Connection for handset Matching connection 2 shown
in Figure 9
