Instron 6800 - Retrofit Controller

45
System components
Product Support: www.instron.com
Version 2
There are no connectors on the frame when the retrofit is completed. All cables are fixed
inside the frame and each one has a unique connector that connects with the
appropriate receptacle on the rear of the Retrofit Controller.

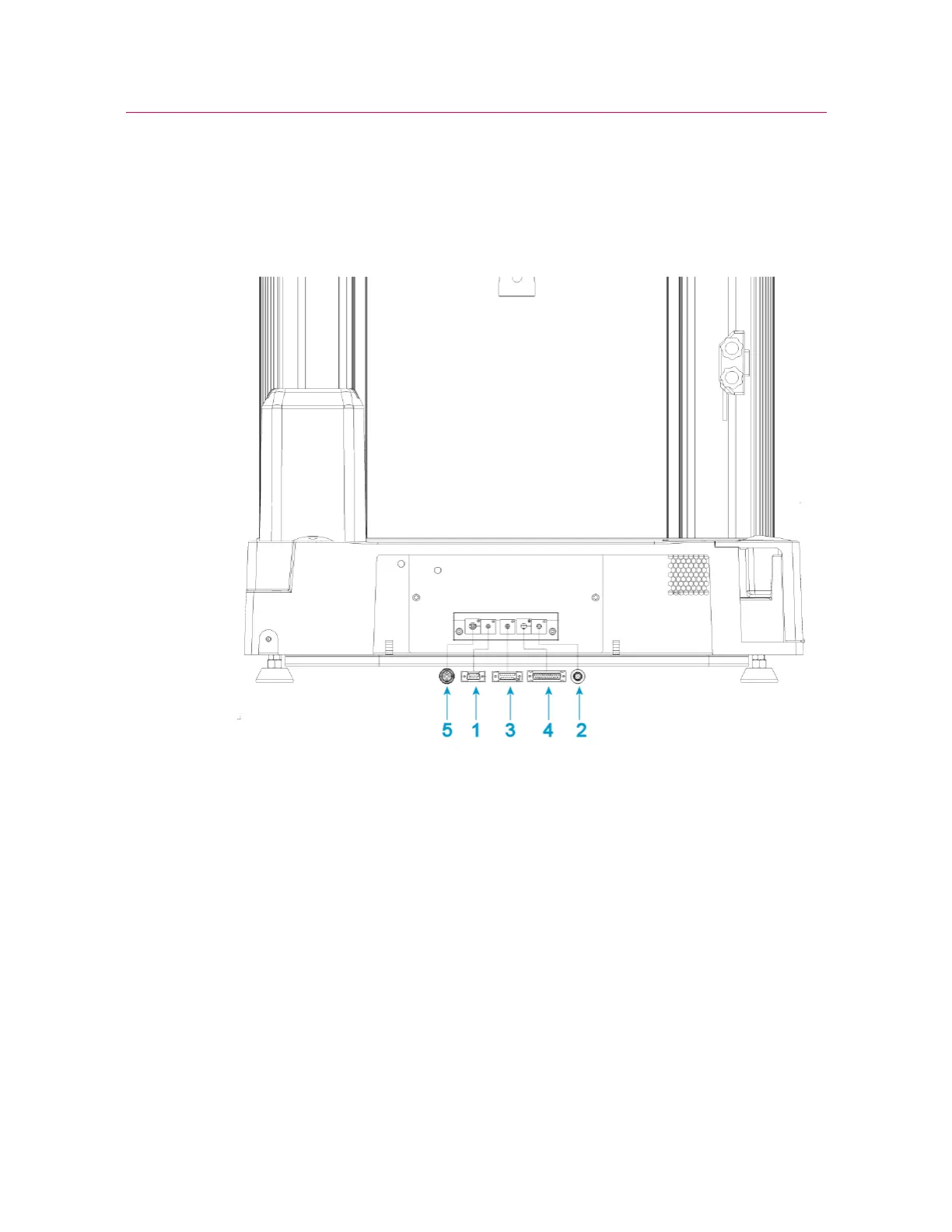

Figure 8. Frame connections
Retrofit Controller
The Retrofit Controller houses all the components required to control the testing system,
taking over all control functions from the original load frame, including the power input
connector.
A set of connectors on the rear panel of the Retrofit Controller connect to the original
load frame. The controller panel on the front of the Retrofit Controller replaces any
controller panel on the original frame for the connection of transducers and
accessories.
