29
Frame
Product Support: www.instron.com

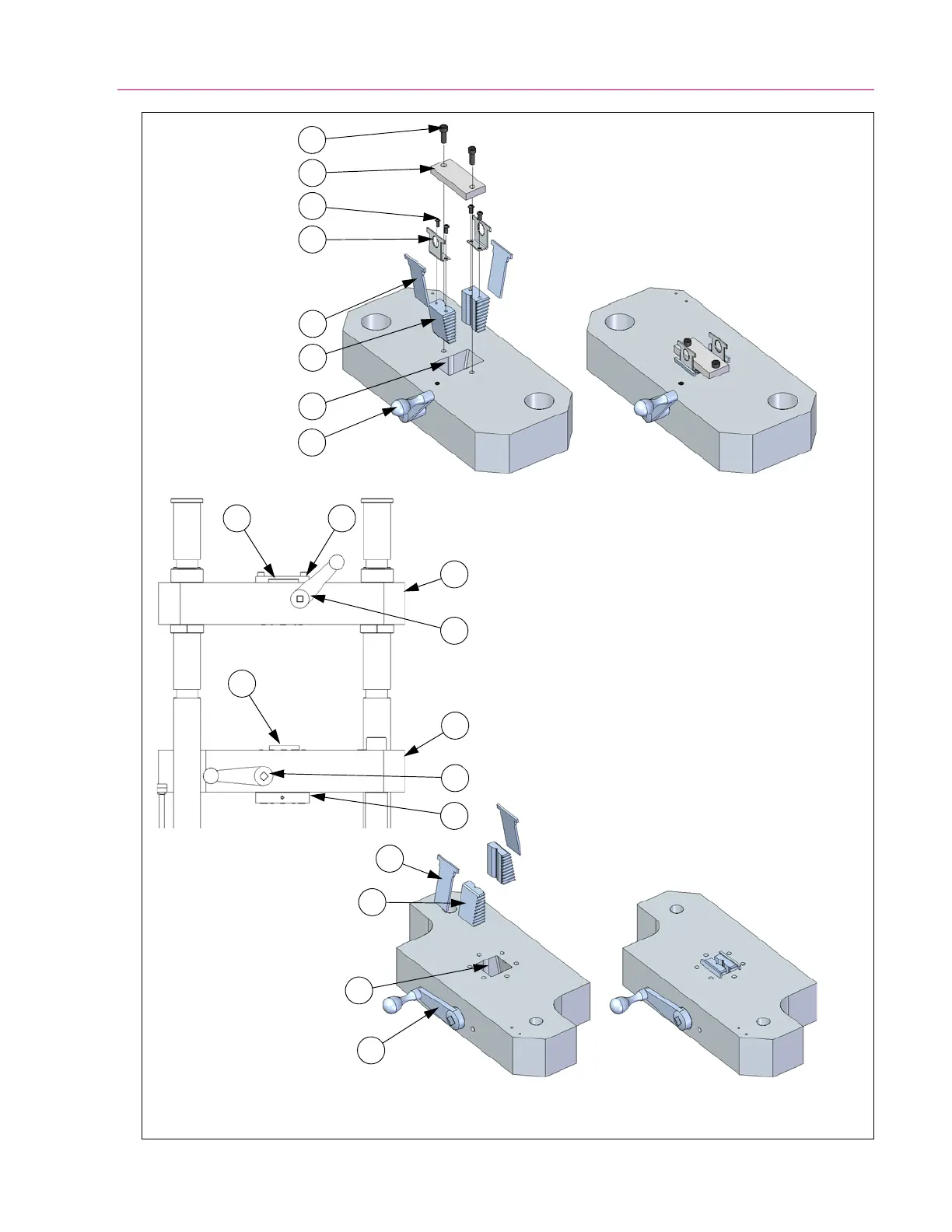

Figure 10. Components of the grip assemblies for G1-style crossheads.
1. Tension crosshead
2. Crank handle and pinion
3. Adjustable crosshead
4. Grip pocket
5. Grip stop plate
6. Socket head cap screw*
7. Jaw re t a ine r
8. Button head cap screw*
9. Filler plate
10. Grip jaw
11. Bumper plate
* See Operating Instructions for specifications.
View A
Tension Crosshead
Exploded View
Assembled View
View B
Adjustable Crosshead
Exploded View Assembled View
6
5
8
7
9
10
4
2
9 5
9
3
2
1
2
11
9
10
4
2
