Chapter 2: Specifications
22 M47-17027-EN
Frame
The technical specifications for the various standard DX frames can be found in Table 5. If unsure of the
options included with your frame, check the model number listed on the frame’s serial number tag; it
includes option designations.

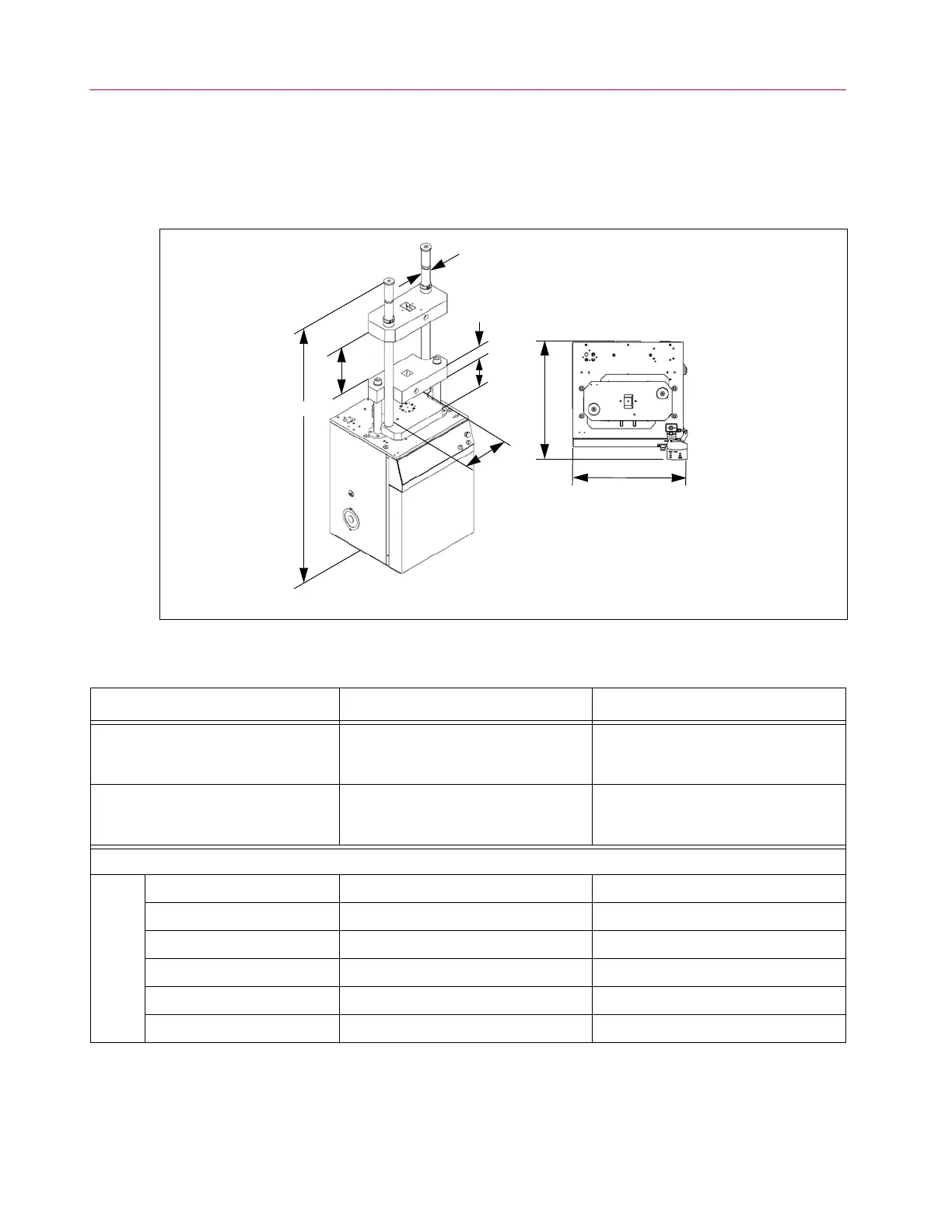

Figure 3. DX specification measurements.
C
F
A
B
D
For legend, refer to Table 5.
E
H
G
Table 5. DX frame technical specifications.
Specification
1
300DX 600DX
Maximum Capacity
2
300 kN
30,000 kgf
67,500 lbf
600 kN
60,000 kgf
135,000 lbf
Design Capacity
3
240 kN
24,000 kgf
54,000 lbf
480 kN
48,000 kgf
108,000 lbf
(A) Tension Test Opening (per crosshead style and tension crosshead position)
4
G1 First notch 0 - 508 mm (0 - 20 in) 44 - 508 mm (1.75 - 20 in)
Second notch 203 - 711 mm (8 - 28 in) 178 - 711 mm (7 - 28 in)
Third notch 406 - 914 mm (16 - 36 in) 381 - 914 mm (15 - 36 in)
Fourth notch 610 - 1118 mm (24 - 44 in) 584 - 1118 mm (23 - 44 in)
Fifth notch 813 - 1321 mm (32 - 52 in) 787 - 1321 mm (31 - 52 in)
Sixth notch 1016 - 1524 mm (40 - 60 in) N/A
