Hardware Configurations
arbhar can be set to four different configurations using the Hardware
Configuration Switches, AB and XY, found at the right side of the back
circuit board. The value of the parameters determined by the Hardware
Configuration Switches are set by the Mod CV Input on the CV
Expansion Module.
Note: It is recommended to change these settings while the module is
powered down.

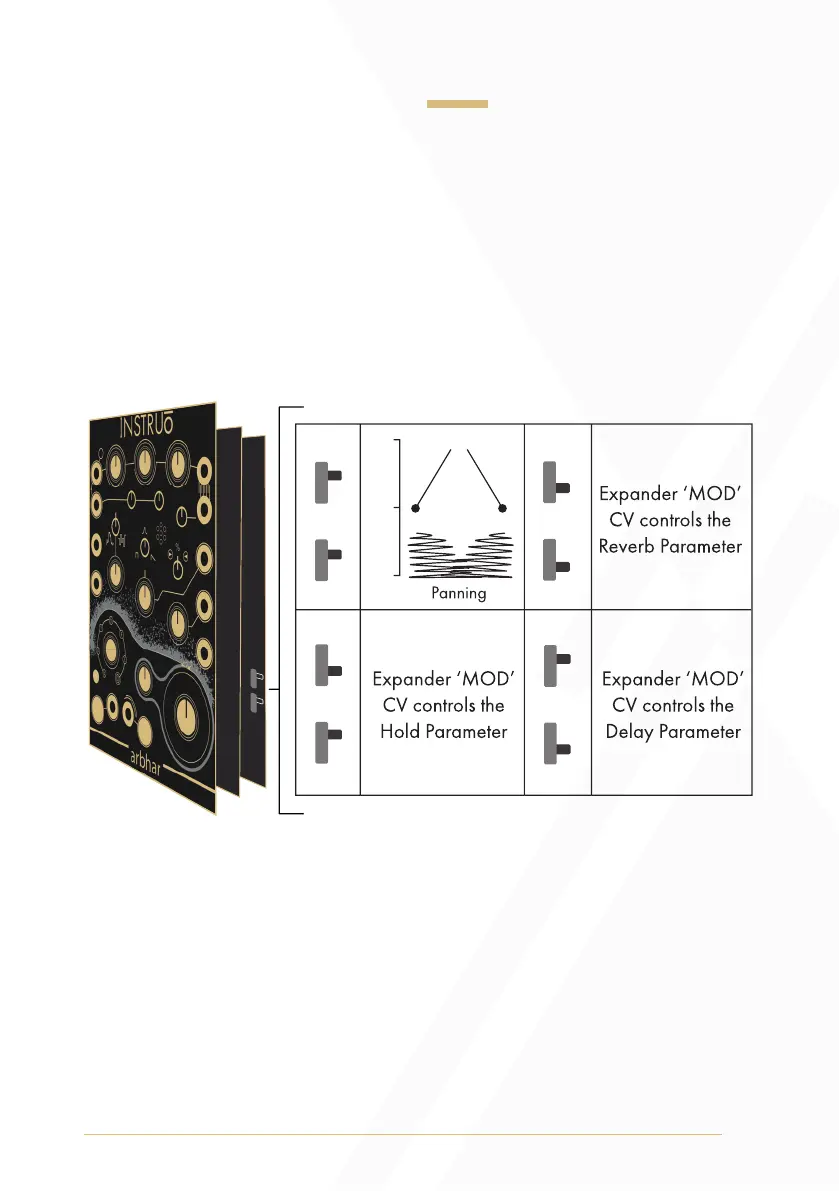

Stereo Panning Configuration:
Hardware Configuration Switch Position: A-X.
Two granular engines (24 grains + 20 grains) and Wavetable Mode.
The MOD CV Input on the CV Expansion Module sets the amount of
stereo panning.
B
A
Y
X
B
A
Y
X
B
A
Y
X
B
A
Y
X
5V
Mono
0V
Left Right
-5V
To Next Page
