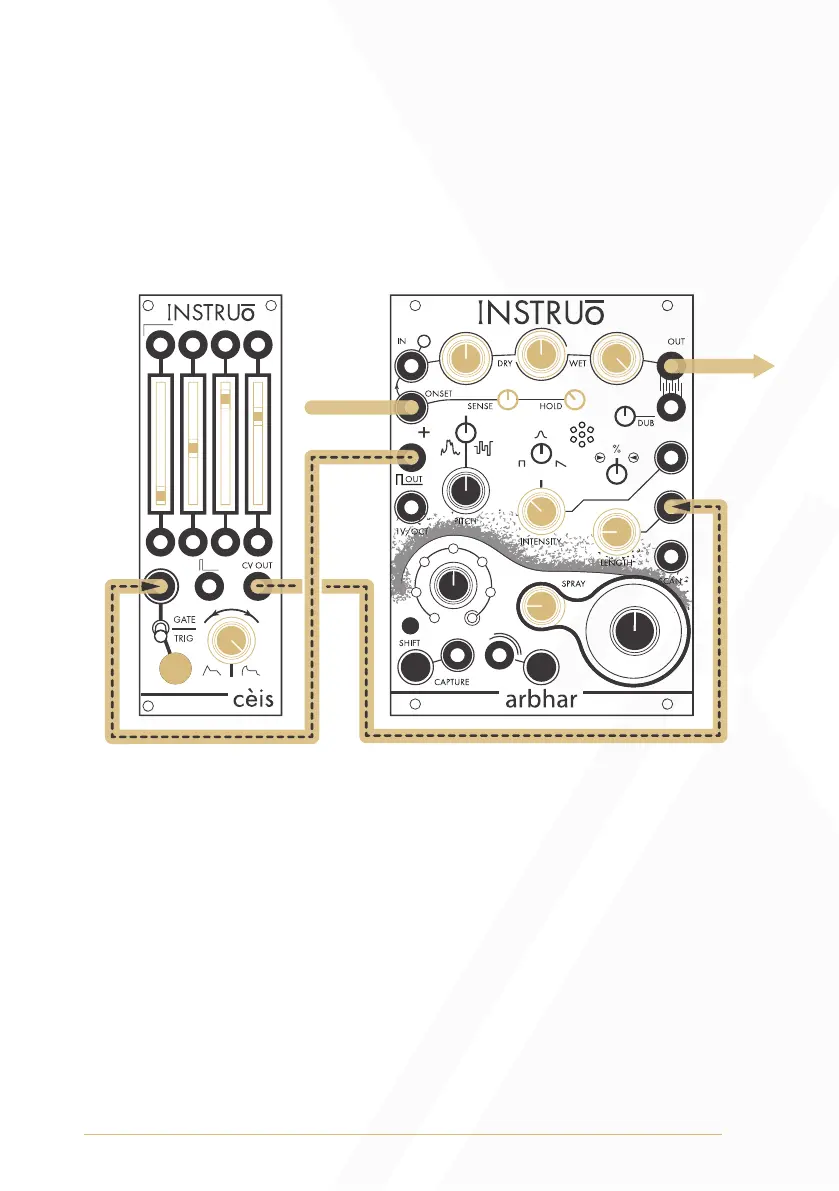

Onset Triggered Modulation:
Summary: Onset Control Mode is set to delta so that a gate signal will
generate from the Gate Output upon each onset detection. The Gate
Output triggers an envelope which is used to modulate the Length
parameter of arbhar.
Audio Path:
• Connect any audio signal to the Onset Input.
• Set the Input Level to a desired position and set the Output Level
fully clockwise.
• Set the Dry/Wet Mix knob to a desired position. If the Dry/Wet
Mix knob is fully clockwise (fully wet), then audio will not be heard
until audio has been captured.
• Monitor Output 1 for mono playback.
• Set the Sensitivity parameter to its centre position.
• Set the Hold parameters to its 10:00 position.
Gate Signal
Output
Audio Signal
To Next Page
