I/O & Capture
Condenser Microphone: The Condenser Microphone located on the
front panel can be used for capturing audio. It is normalled to the Onset
Input when no cables are patched to the Onset Input jack.
• The Onset Input is normalled to the Input. When no cables are
connected to either input, the Condenser Microphone will normal
through the Onset Input and to the Input.
Input: AC coupled audio input.

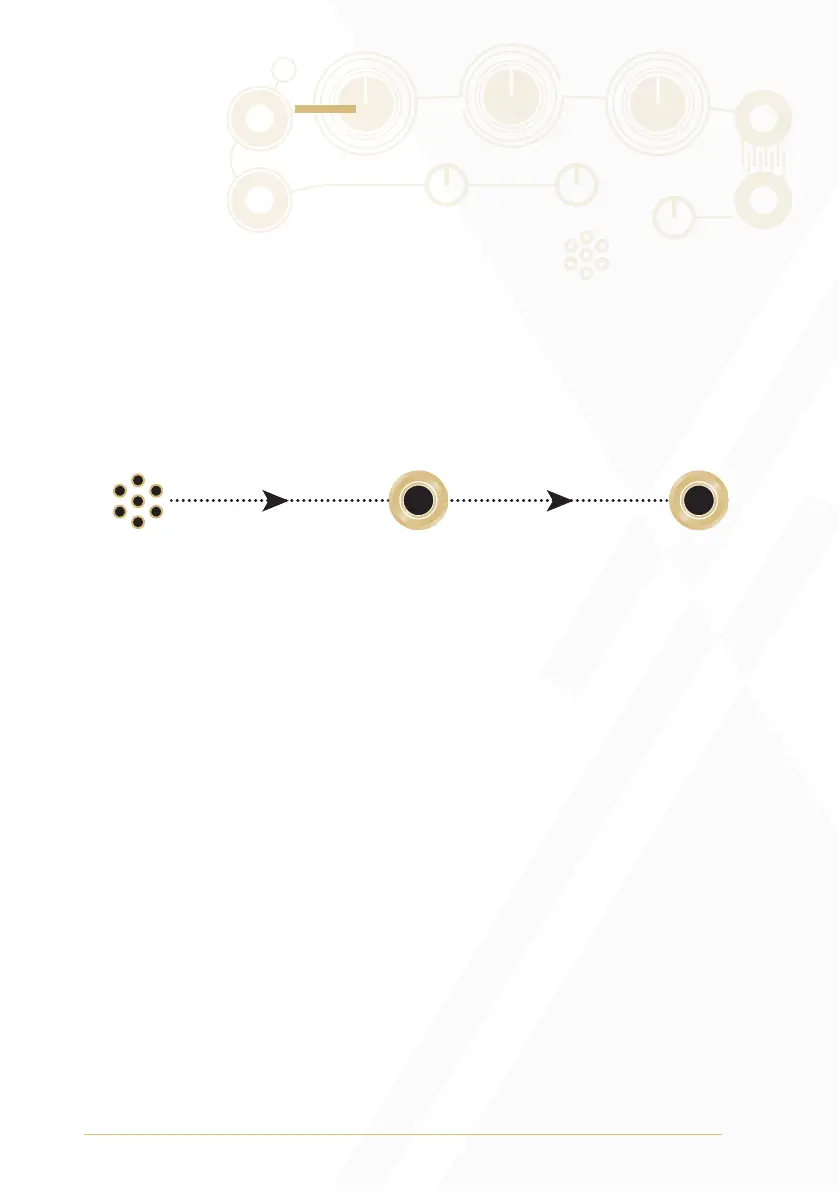

Normalised Signal Path:
Input Level: The Input Level knob sets the level of the signal present at
the Input. This includes the level of the normalled Condenser
Microphone signal. The input stage incorporates analogue limiting. This
allows arbhar to saturate rather than digitally clip when high amplitude
signals are used.
• If the knob is at its 10:00 position, the signal present at the Input is
approximately at unity gain. If the knob exceeds the 10:00 position,
arbhar drives the signal through the input pre-amplifier. Analogue
limiting will prevent signals from digitally clipping at the Input.
• The knob can be used to increase line level signals to modular level.
Input Indicator: The Input Indicator will illuminate amber when a signal
is present at the Input. The brightness of the LED indicates the amplitude
of the input signal.
Microphone ONSET IN
Signal to be Analysed Signal to be Recorded
