19
En
*1
Connect a turntable (MM) that has built-in a phono preamp to TV/CD IN or connect it to PHONO IN with the phono preamp turned
off. If your turntable (MM) doesn’t have a phono preamp, connect to PHONO IN. If your turntable has a moving coil (MC) type car-
tridge, you’ll need a commercially available MC head amp or MC transformer to connect to PHONO IN. See your turntable’s man-
ual for details.
If your turntable has a ground wire, connect it to the AV controller’s GND screw. With some turntables, connecting the ground wire
may produce an audible hum. If this happens, disconnect it.
*2
When you connect your personal computer to PC IN and select PC input selector, video of the personal computer is output from
HDMI outputs. However, because the AV controller selects the video input in the order of HDMI > component > analog RGB, if you
have assigned HDMI IN to the PC input selector, the AV controller will output signals from HDMI IN in priority to PC IN.
*3
To select the multichannel input, select the BD/DVD input selector and see “Audio Selector” (➔ 63). To adjust the subwoofer sensi-
tivity for the multichannel input, see “Subwoofer Input Sensitivity” (➔ 47).
• The AV controller can output audio and video signals from the AUX INPUT jacks to the VCR/DVR OUT jacks.
• With connection D, you can listen and record audio from the external components while you are in Zone 2. You can listen and record
audio from the external components in the main room; you can listen to the audio in Zone 2 as well.
• With connection C, you can enjoy Dolby Digital and DTS. (To record or listen in Zone 2 as well, use C and D.)
■ How to record the video
With the connections described above, you cannot record the video through the AV controller. To make a connection for
video recording (➔ 37).
With u (Remote Interactive), you can use the following
special functions:
■ System On/Auto Power On
When you start playback on a component connected via
u while the AV controller is on Standby, the AV con-
troller will automatically turn on and select that compo-
nent as the input source.
■ Direct Change
When playback is started on a component connected via
u, the AV controller automatically selects that compo-
nent as the input source.
■ Remote Control
You can use the AV controller’s remote controller to
control your other u-capable Integra/Onkyo compo-
nents, pointing the remote controller at the AV control-
ler’s remote control sensor instead of the component.
You must enter the appropriate remote control code first
(➔ 85).
•Use only u cables for u connections. u cables are supplied
with Integra/Onkyo players (DVD, CD, etc.).
• Some components have two u jacks. You can connect either
one to the AV controller. The other jack is for connecting addi-
tional u-capable components.
• Connect only Integra/Onkyo components to u jacks. Connect-
ing other manufacturer’s components may cause a malfunction.
• Some components may not support all u functions. Refer to
the manuals supplied with your other Integra/Onkyo compo-
nents.
• While Zone 2 is on, the System On/Auto Power On and Direct
Change u functions do not work.
• Do not use RI connections if you use HDMI Control (RIHD)
(➔ 60).

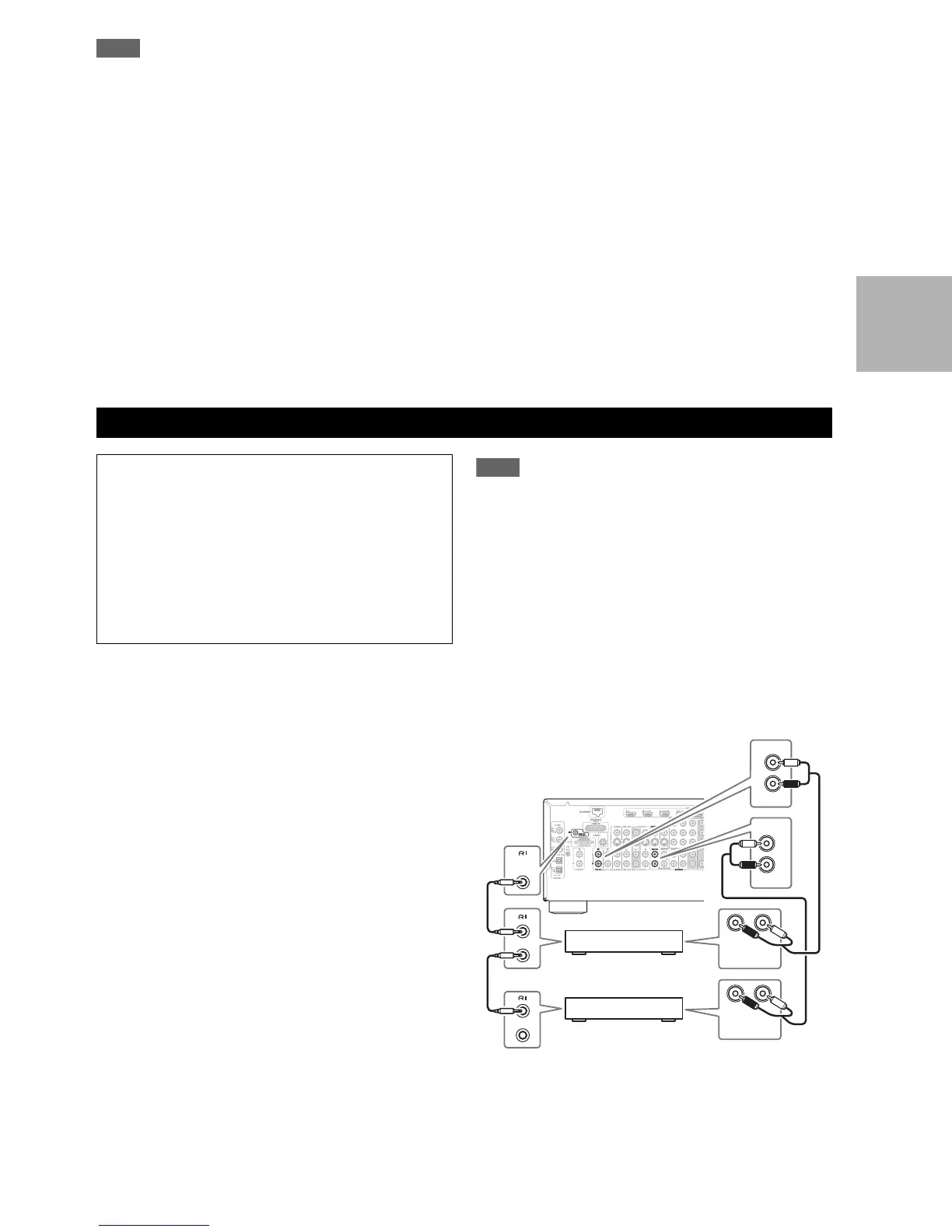

Connecting Integra/Onkyo u Components
Step 1:
Make sure that each Integra/Onkyo component is con-
nected with an analog audio cable (connection D in the
hookup examples) (➔ 18).
Step 2:
Make the u connection (see illustration below).
Step 3:
If you’re using an RI Dock, or cassette tape deck,
change the Input Display (➔ 26).
L R
FRONT
BD/DVD
L
R
IN
TV/CD
L
R
REMOTE
CONTROL
ANALOG
AUDIO OUT
L R
ANALOG
AUDIO OUT
e.g., CD player
e.g., DVD player
To Next Page
