Multi Zone
In addition to your main listening room, you can also enjoy playback in the other room, or as we call Multi Zone. And,
you can select a different source for each room.
Connecting Your Zone 2 Speakers
This setup allows 7.1-channel playback in your main lis-
tening room and 2-channel stereo playback in Zone 2,
with a different source in each room.
• With the default settings, the Zone 2 volume must be set on the
Zone 2 amp. If your Zone 2 amp has no volume control, set the
“Zone 2 Out” setting to “Variable” so that you can set the
Zone 2 volume on the AV controller (➔ 75).
Zone 2 Video Output
The AV controller features a composite video output for
connection to a TV in Zone 2, so you can enjoy both audio
and video in that zone.
•The ZONE 2 OUT V jack outputs video from components con-
nected to composite video inputs.

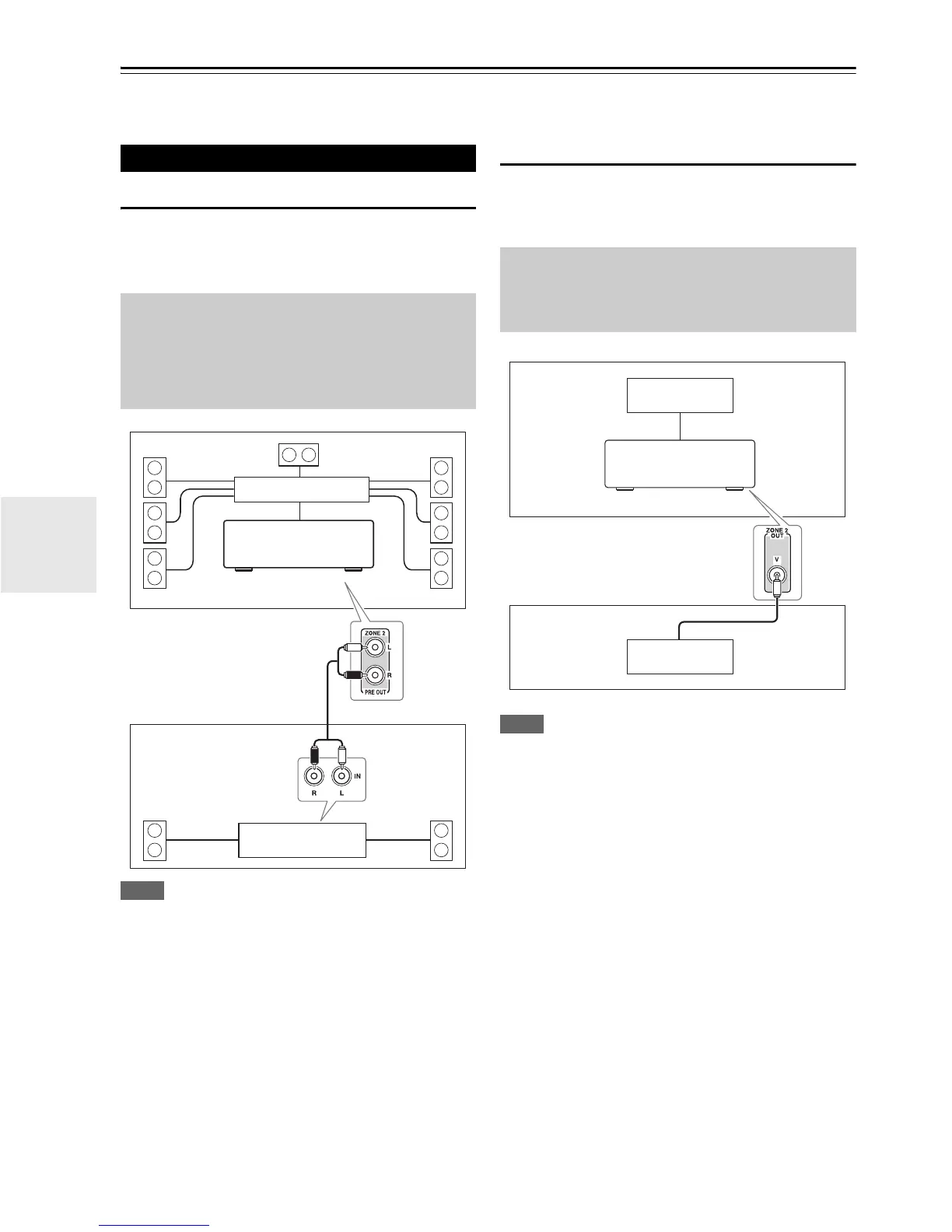

Connecting Zone 2
Hookup
• Use an RCA audio cable to connect the AV controller’s ZONE
2 PRE OUT L/R jacks to an analog audio input on your Zone
2 amp.
• Connect your Zone 2 speakers to the speaker terminals on
your Zone 2 amp.
AV controller
Main room
Zone 2
Receiver/
integrated amp
Multichannel power amp
Hookup
• Use a composite video cable to connect the AV control-
ler’s ZONE 2 OUT V jack to a composite video input
on your Zone 2 TV.
Main room
TV
Zone 2
AV controller
TV
