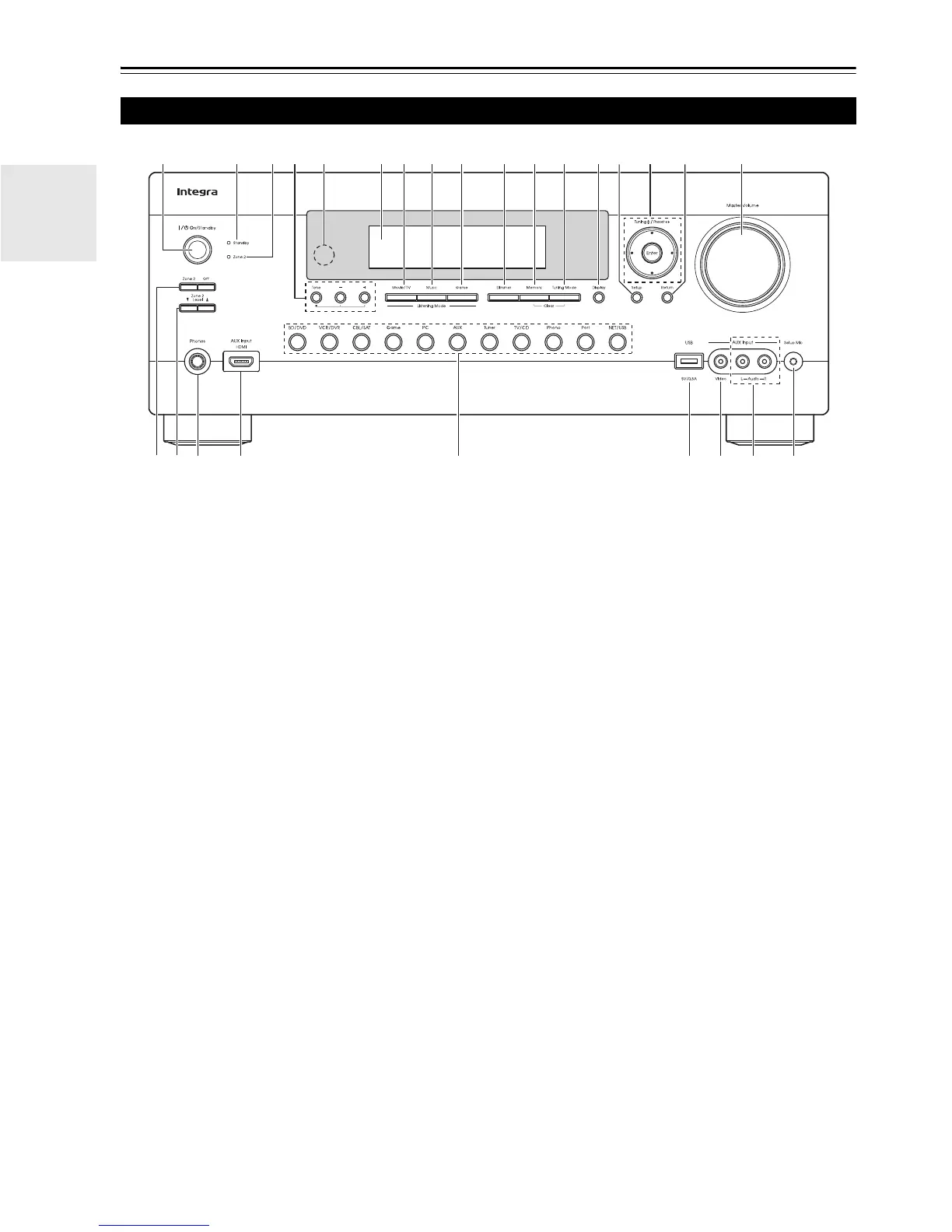

Front & Rear Panels
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
a On/Standby button (➔ 23)
b Standby indicator (➔ 23)
c Zone 2 indicator (➔ 75)
d Tone and –/+ buttons (➔ 62, 76)
e Remote control sensor (➔ 4)
f Display (➔ 9)
g Movie/TV button (➔ 38)
h Music button (➔ 38)
i Game button (➔ 38)
j Dimmer button (➔ 24)
k Memory button (➔ 31)
l Tuning Mode button (➔ 30)
m Display button (➔ 24)
n Setup button (➔ 44)
o Tuning, Preset (➔ 30), arrow and Enter buttons
p Return button
q Ma
ster Volume control (➔ 24)
r Zone 2 and Off buttons (➔ 75)
s Zone 2 Level buttons (➔ 76)
t Phones jack (➔ 26)
u AUX Input HDMI jack (➔ 17)
v Input selector buttons (➔ 24)
w USB port (➔ 72, 79)
x AUX Input Video jack (➔ 18)
y AUX Input Audio jacks (➔ 18)
z Setup Mic jack (➔ 28)
Front Panel
a
vx
y z
bc
de fhgijklmn o p q
tr
s u
w
