Integra DHC-40.2 User Manual

10
En
a DIGITAL IN COAXIAL and OPTICAL jacks
b RS232 terminal
Terminal for control.
c u REMOTE CONTROL jack
d ETHERNET port
e UNIVERSAL PORT jack
f MONITOR OUT V and S jacks
g HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
h COMPONENT VIDEO IN and MONITOR OUT
jacks
i IR IN (A/B) and OUT jacks
j 12V TRIGGER OUT (A/B/C) jacks
k ZONE 2 OUT V jack
l FM ANTENNA jack and AM ANTENNA terminal
m PC IN port
n AC INLET
o GND screw
p SIRIUS antenna jack
q Composite, S-Video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SA
T IN,
GAME IN, PC IN, TV/CD IN and PHONO IN)
r Multichannel input jacks
(FRONT L/R, CENTER, SURR
L/R, SURR BACK
L/R and SUBWOOFER)
s PRE OUT jacks
(FRONT L/R, CENTER, SURR L/R,
SB/FH/FW L/R, SUBWOOFER and ZONE 2 L/R)
*
SB···Surround Back, FH···Front High, FW···Front Wide

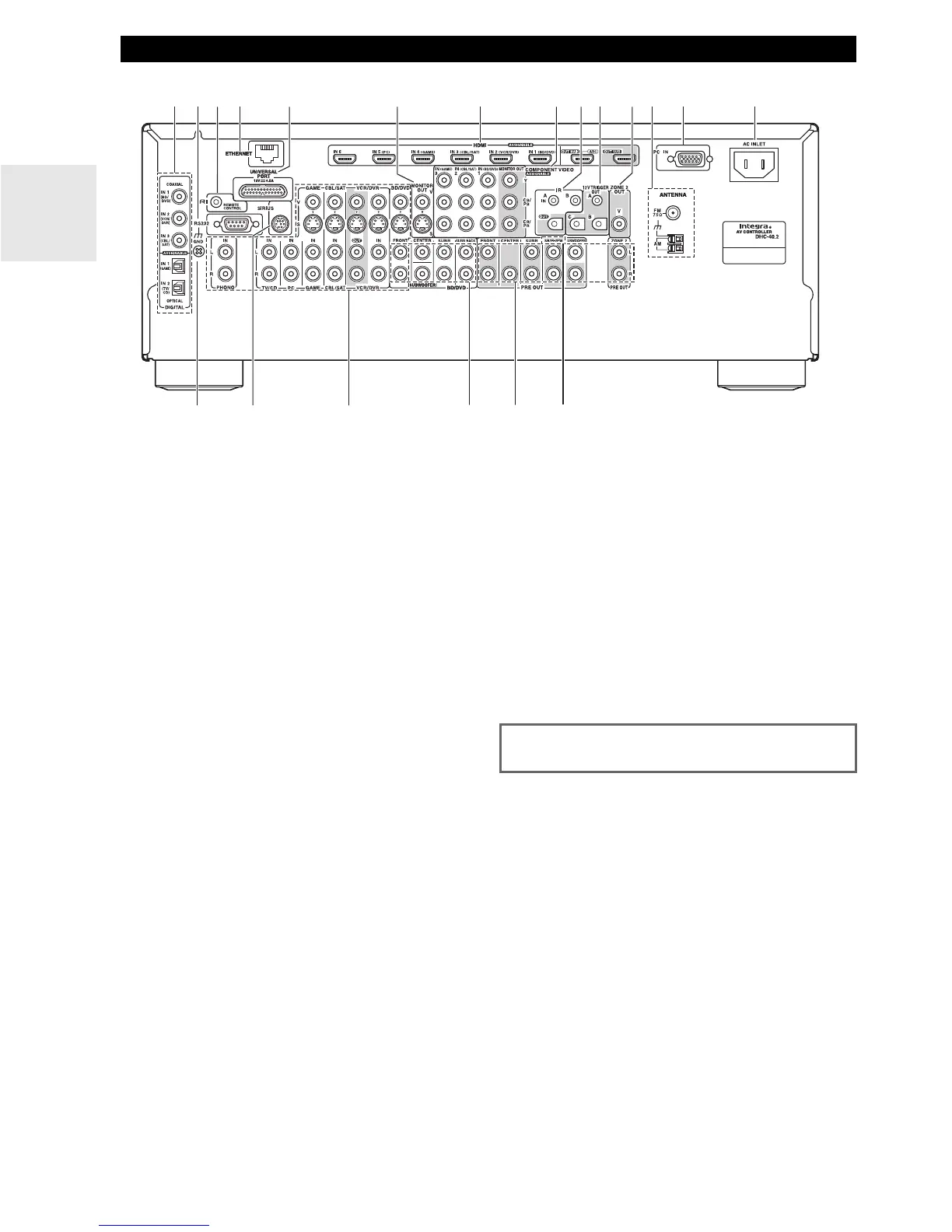

Rear Panel
ab
e
l
fd
g
m
nh j
o
qrs
c
i
k
p
*
See “Connecting the AV Controller” for connection
information (➔ 13 to 22).
