Integra DTM-5.3 User Manual

11
Connecting components

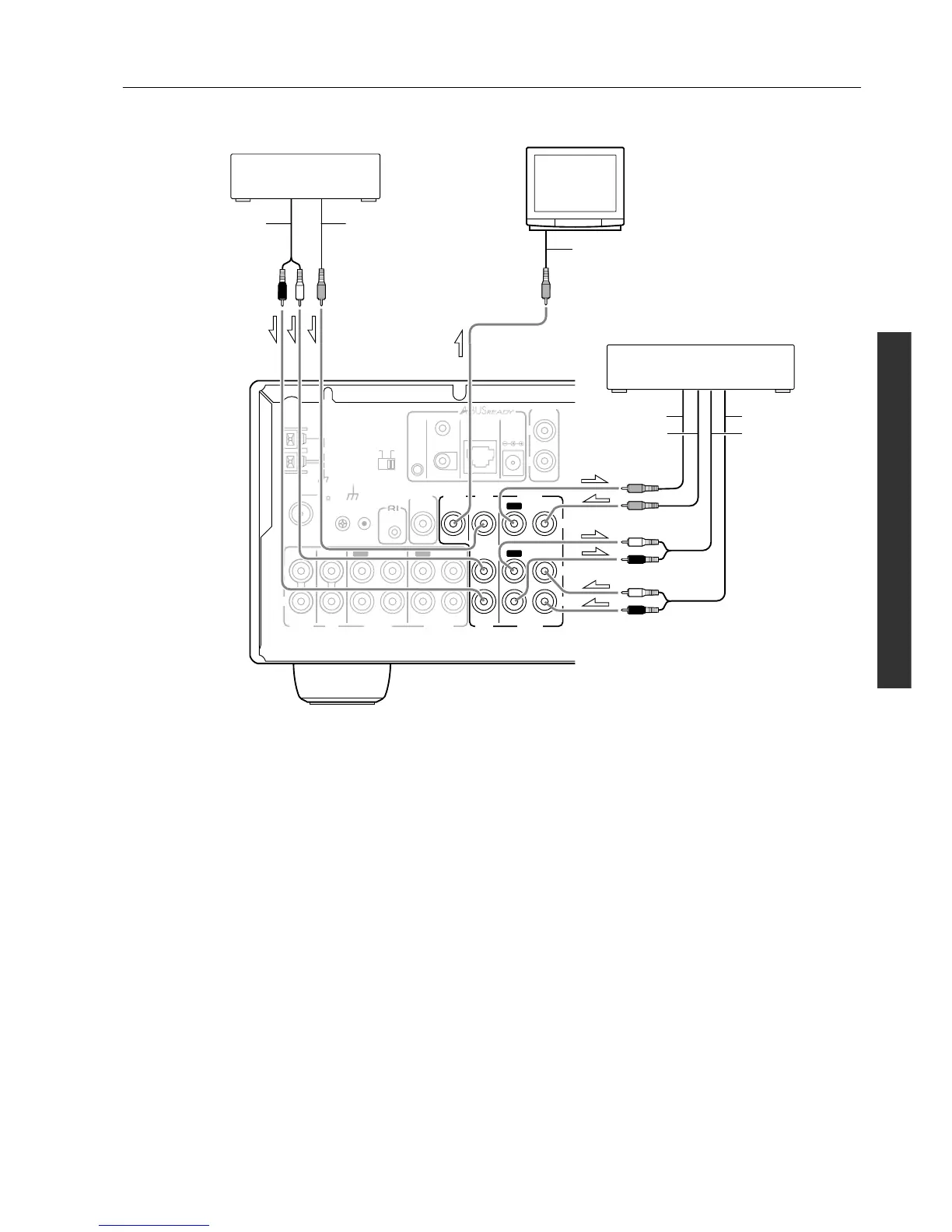

Example of video equipment connections
If there should be interference between the TV and this unit, place this unit as far from the TV as possible.
We do not recommend the use of a common TV/FM antenna. (Refer to “Connecting antennas” on page 13.)
REMOTE
CONTROL
ANTENNA
OUT
IN
IN
IN
IN
OUT
IN
IN
OUT
OUT
FM
75
GND
ZONE 2
CONTROL
SELECTOR
IR OUT 40K
IR OUT
56K
ZONE 2
OUT
DC IN
24V 1A
OUT
ZONE 2
VIDEO
DVD
MONITOR
OUT
PHONO
CD
TAPE 1
TAPE 2
VIDEO
DVD
V
R
L
A-BUS
IR
AM
R
L
R
L
SUBWOOFER
PRE OUT
IN
IN
A
B
DVD Player
(DVD)
Monitor TV
Video Cassette Recorder
(VIDEO)
VIDEO IN
VIDEO IN
AUDIO OUTPUT
VIDEO OUTPUT
AUDIO OUT
AUDIO IN
VIDEO OUT

Integra DTM-5.3 Specifications

Amplifier Section

power output	100 Watts per channel
dynamic power output at 2 ohms	2 × 170 Watts
dynamic power output at 4 ohms	2 × 135 Watts
dynamic power output at 8 ohms	2 × 140 Watts
total harmonic distortion at rated power	0.08%
IM distortion at rated power	0.08%
damping factor	60 at 8 ohms
phono input sensitivity and impedance	2.5 mV, 50 kohms
line input sensitivity and impedance	150 mV, 50 kohms
video input sensitivity and impedance	1 Vp-p, 75 ohms
phono overload	120 mV RMS at 1 kHz

Tuner Section FM

tuning range	87.5 to 108.0 MHz
usable sensitivity mono	11.2 dBf, 1.0 µV
usable sensitivity stereo	17.2 dBf, 2.0 µV
signal-to-noise ratio mono	76 dB
signal-to-noise ratio stereo	70 dB
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.25%

Tuner Section AM

tuning range	530 to 1, 710 kHz
usable sensitivity	30 µV
image rejection ratio	40 dB
signal-to-noise ratio	40 dB
total harmonic distortion	0.7%

General

power supply	AC 120 V, 60 Hz
power consumption	2.8 A
dimensions	17-1/8" × 5-7/8" × 13-7/16"
weight	19.8 lbs.
