Integra DTM-5.3 User Manual

6

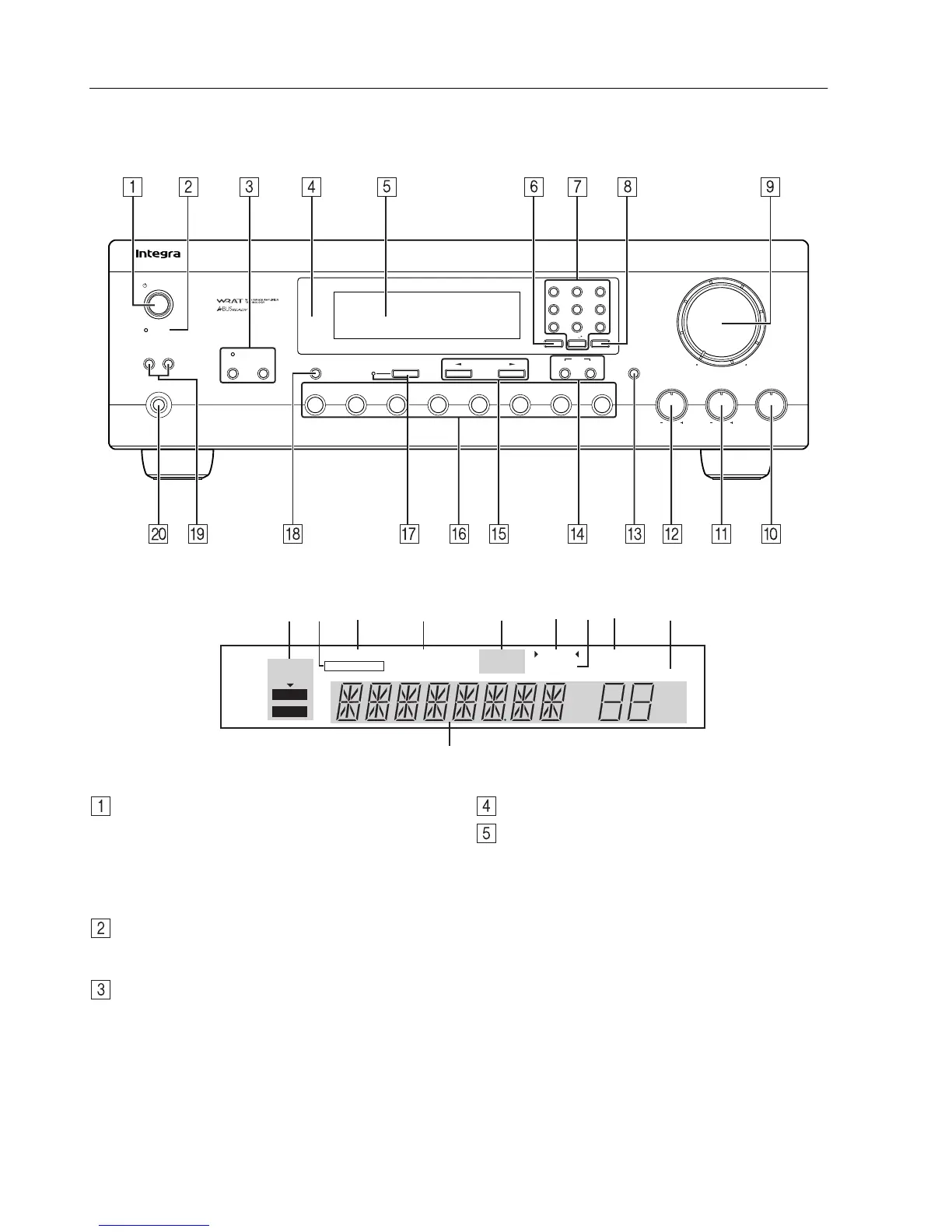

Front panel description
This section identifies and explains the controls and displays on the front panel of the DTM-5.3.
Front panel
Display
Standby/On button
Press this button to turn on the power to the DTM-5.3. The
display indicators light up. Press the button again to set the
unit in Standby mode, in which the display indicators turn off
and no control on the unit is available.
If the main room device is in Standby mode, you can adjust
the zone 2 room.
Standby indicator
This indicator lights up in Standby mode and when the unit
receives a signal from the remote controller.
Zone 2 button and indicator, Off button
This button enables you to enjoy music in another room
(Zone 2). When you press the Zone 2 button, the currently-
selected playback source for Zone 2 appears on the display. If
“Z2 SRC” appears, the source for Zone 2 is the same as the
currently-selected playback source. To change the source for
Zone 2, press the Zone 2 button, then press an input selector
button within five seconds. The Zone 2 indicator lights up. To
select “Z2 SRC” for Zone 2, press the Zone 2 button twice.
To turn off the Zone 2 output, press the Off button. The Zone
2 indicator turns off.
Remote control sensor
Display
A. STEREO MODE, AUTO, MONO indicator
Pressing the FM Mode button each time toggles between
AUTO and MONO indicators.
B. T-2 MONITOR indicator
This indicator lights up when you press the Tape 2 Moni-
tor button, which enables you to monitor the audio signal
during recording to a three-head cassette tape deck con-
nected to the TAPE 2 jack.
C. SPEAKERS A B indicator
This indicates which speaker system you are currently
using.
D. AUDIO MUTE indicator
This indicator flashes while you are using the Mute func-
tion.
E. FM MUTE ON OFF indicator
Pressing the FM Mode button each time toggles between
ON and OFF.
Standby/On
Speakers
A
B
Phones
Bass
Treble Balance
L
R
Master Volume
Video
Tape 2
Monitor
Tape 1
FM
AM Phono CDDVD
Zone 2 Off
Memory
Clear
Character
Direct Tuning
FM Mode
Display
Standby
DTM
-
5.3
1 ABC 2 DEF 3 GHI
4 JKL
5 MNO 6 PQR
7 STU 8 VWX 9 YZ
-
Direct Tuning 0
/
10
/
Scan
SPEAKERS A B
STEREO
MODE
AUDIO MUTE FM MUTE TUNED MEMORY
T-2 MONITOR
ON OFF
STEREO
AUTO
MONO
kHz
MHz
CH MIN
SLEEP
AB C D E GFHI
J

Integra DTM-5.3 Specifications

Amplifier Section

power output	100 Watts per channel
dynamic power output at 2 ohms	2 × 170 Watts
dynamic power output at 4 ohms	2 × 135 Watts
dynamic power output at 8 ohms	2 × 140 Watts
total harmonic distortion at rated power	0.08%
IM distortion at rated power	0.08%
damping factor	60 at 8 ohms
phono input sensitivity and impedance	2.5 mV, 50 kohms
line input sensitivity and impedance	150 mV, 50 kohms
video input sensitivity and impedance	1 Vp-p, 75 ohms
phono overload	120 mV RMS at 1 kHz

Tuner Section FM

tuning range	87.5 to 108.0 MHz
usable sensitivity mono	11.2 dBf, 1.0 µV
usable sensitivity stereo	17.2 dBf, 2.0 µV
signal-to-noise ratio mono	76 dB
signal-to-noise ratio stereo	70 dB
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.25%

Tuner Section AM

tuning range	530 to 1, 710 kHz
usable sensitivity	30 µV
image rejection ratio	40 dB
signal-to-noise ratio	40 dB
total harmonic distortion	0.7%

General

power supply	AC 120 V, 60 Hz
power consumption	2.8 A
dimensions	17-1/8" × 5-7/8" × 13-7/16"
weight	19.8 lbs.
