Integra DTM-5.3 User Manual

21
Receiving stations
Listening to stereo radio stations (FM only)
If you tune in a stereo FM station, the STEREO indicator will be
illuminated if the signal is sufficiently strong.
If the signal is weak, it may be impossible to tune in the desired
station. In this case, tune as follows:
Press the FM Mode button. FM MUTE OFF lights up. At this time,
the station will be received in mono and noise will be heard.
Select the station to which you wish to listen.
If the MONO indicator lights up while a station is tuned in, the sta-
tion will be received in mono even if it is a stereo station.
You can change the STEREO MODE AUTO/MONO settings by
pressing the FM MODE button.

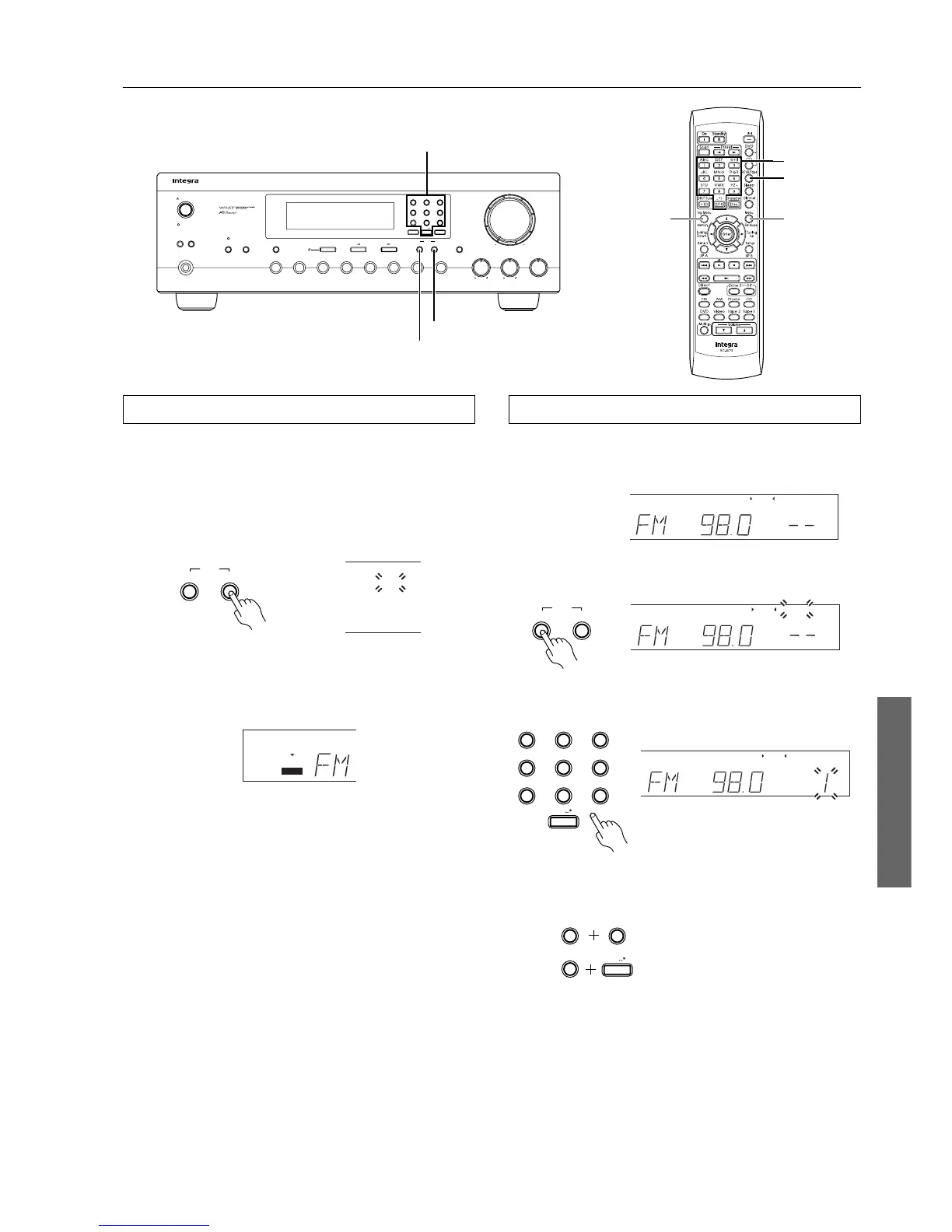

Programming radio stations
A total of 40 stations can be stored in the memory.
1 Select the frequency that you wish to store in memory.
(Refer to “Tuning the radio” on page 20.)
2 Press the Memory button.
The MEMORY indicator will light for 8 seconds.
3 Select the desired memory number using the number
buttons.
Press button 0/10 when choosing memory number 10.
E.g.:
Standby/On
Speakers
A
B
Phones
Bass
Treble Balance
L
R
Master Volume
Video
Tape 2
Monitor
Tape 1
FM
AM Phono CDDVD
Zone 2 Off
Memory
Clear
Character
Direct Tuning
FM Mode
Display
Standby
DTM
-
5.3
1 ABC 2 DEF 3 GHI
4 JKL
5 MNO 6 PQR
7 STU 8 VWX 9 YZ
-
Direct Tuning 0
/
10
/
Scan
FM Mode
Memory
Number buttons
FM Mode
RCVR/Tape
Memory
Number
buttons
Memory
Clear
FM Mode
FM MUTE
OFF
STEREO
MODE
AUTUTO
MONOMONO
STEREO
MODE
FM MUTE TUNED
ON
STEREO
AUTAUTO
MONOMONO
MHz
CH
FM MUTE TUNED MEMORY
ON
STEREO
MHz
CH
Memory
Clear
FM Mode
FM MUTE TUNED
ON
STEREO
MHz
CH
1 ABC 2 DEF 3 GHI
4 JKL
5 MNO 6 PQR
7 STU 8 VWX 9 YZ
-
0
/
10
/
1 ABC
2 DEF
5 MNO
0
/
10
/
15:
20:

Integra DTM-5.3 Specifications

Amplifier Section

power output	100 Watts per channel
dynamic power output at 2 ohms	2 × 170 Watts
dynamic power output at 4 ohms	2 × 135 Watts
dynamic power output at 8 ohms	2 × 140 Watts
total harmonic distortion at rated power	0.08%
IM distortion at rated power	0.08%
damping factor	60 at 8 ohms
phono input sensitivity and impedance	2.5 mV, 50 kohms
line input sensitivity and impedance	150 mV, 50 kohms
video input sensitivity and impedance	1 Vp-p, 75 ohms
phono overload	120 mV RMS at 1 kHz

Tuner Section FM

tuning range	87.5 to 108.0 MHz
usable sensitivity mono	11.2 dBf, 1.0 µV
usable sensitivity stereo	17.2 dBf, 2.0 µV
signal-to-noise ratio mono	76 dB
signal-to-noise ratio stereo	70 dB
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.25%

Tuner Section AM

tuning range	530 to 1, 710 kHz
usable sensitivity	30 µV
image rejection ratio	40 dB
signal-to-noise ratio	40 dB
total harmonic distortion	0.7%

General

power supply	AC 120 V, 60 Hz
power consumption	2.8 A
dimensions	17-1/8" × 5-7/8" × 13-7/16"
weight	19.8 lbs.
