Integra DTM-5.3 User Manual

25
Recording a source
Video disc player (or video camcorder) to VCR
recording
Video disc programs can be recorded onto a VCR (VIDEO).
1 Load a disc in the video disc player, and a blank tape in
the VCR (VIDEO).
2 Press the DVD button.
3 Begin playback on the video disc player and begin
recording on the VCR.
Adding new sound to a video tape during video
editing
During video tape editing, you can add sound to the recording VCR
from various audio program sources.
1 Insert the disc or tape from which you wish to record into
the DVD or VCR connected to the DVD connector.
2 Insert a blank video tape in the VCR connected to the
VIDEO connector.
3 Press the DVD button.
4 Select the audio program source (Tape 1, FM, AM,
Phone, CD).
5 Begin playback of the video connected to the DVD con-
nector. Start the sound source, then start recording on
the VIDEO.
Refer to the video disc player, video camcorder or VCR instruction
manuals for additional information.
Standby/On
Speakers
A
B
Phones
Bass
Treble Balance
L
R
Master Volume
Video
Tape 2
Monitor
Tape 1
FM
AM Phono CDDVD
Zone 2 Off
Memory
Clear
Character
Direct Tuning
FM Mode
Display
Standby
DTM
-
5.3
1 ABC 2 DEF 3 GHI
4 JKL
5 MNO 6 PQR
7 STU 8 VWX 9 YZ
-
Direct Tuning 0
/
10
/
Scan

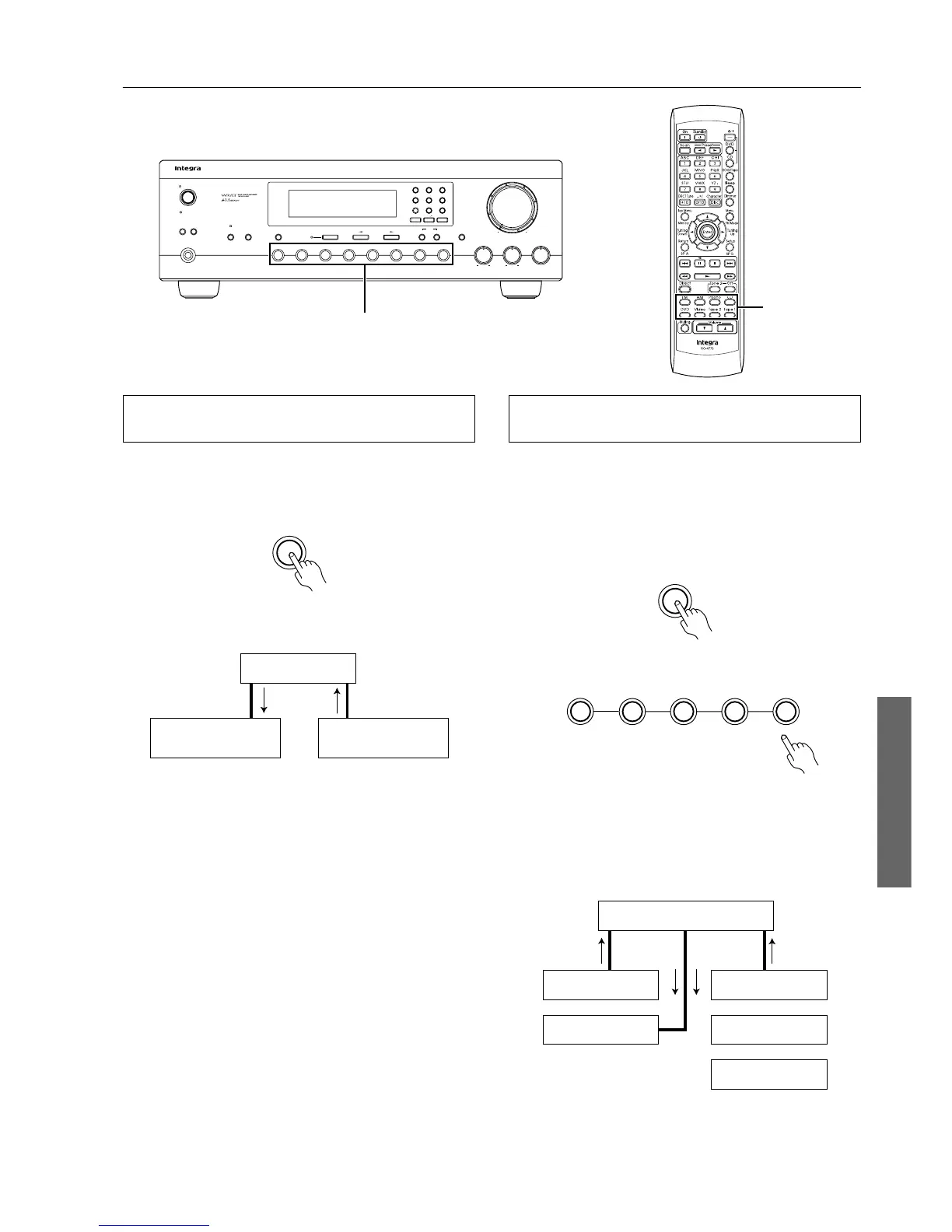

Input selector buttons
Input selector
DVD
DTM-5.3
Recording Playback
DVD
VCR (VIDEO)
DVD
Tape 1
FM
AM Phono CD
DTM-5.3
Audio
recording
Video
recording
Audio
playback
Video
playback
Turntable
DVD, VCR (DVD)
VCR (VIDEO)
CD player
Tape dack

Integra DTM-5.3 Specifications

Amplifier Section

power output	100 Watts per channel
dynamic power output at 2 ohms	2 × 170 Watts
dynamic power output at 4 ohms	2 × 135 Watts
dynamic power output at 8 ohms	2 × 140 Watts
total harmonic distortion at rated power	0.08%
IM distortion at rated power	0.08%
damping factor	60 at 8 ohms
phono input sensitivity and impedance	2.5 mV, 50 kohms
line input sensitivity and impedance	150 mV, 50 kohms
video input sensitivity and impedance	1 Vp-p, 75 ohms
phono overload	120 mV RMS at 1 kHz

Tuner Section FM

tuning range	87.5 to 108.0 MHz
usable sensitivity mono	11.2 dBf, 1.0 µV
usable sensitivity stereo	17.2 dBf, 2.0 µV
signal-to-noise ratio mono	76 dB
signal-to-noise ratio stereo	70 dB
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.25%

Tuner Section AM

tuning range	530 to 1, 710 kHz
usable sensitivity	30 µV
image rejection ratio	40 dB
signal-to-noise ratio	40 dB
total harmonic distortion	0.7%

General

power supply	AC 120 V, 60 Hz
power consumption	2.8 A
dimensions	17-1/8" × 5-7/8" × 13-7/16"
weight	19.8 lbs.
