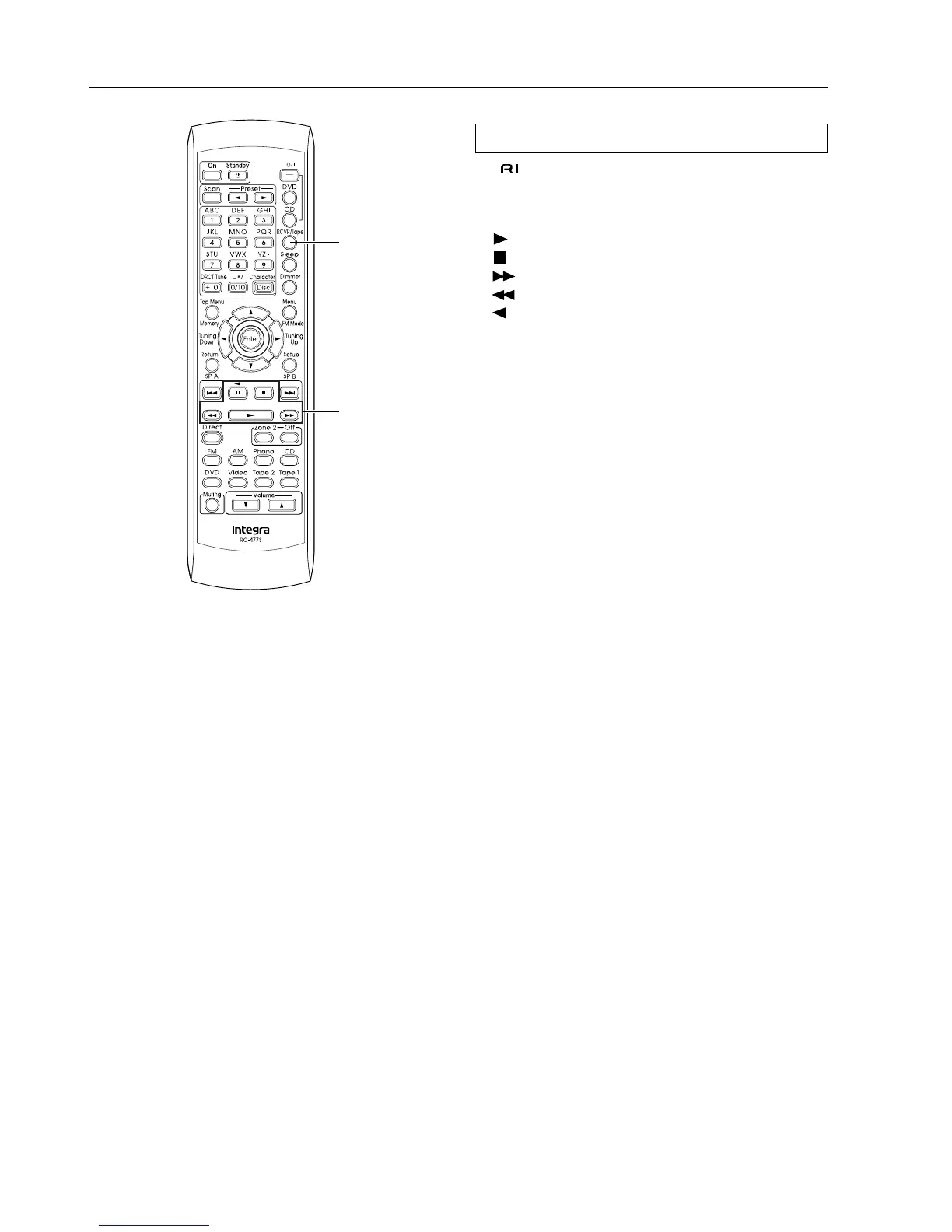

Controlling other components
Controlling an Integra/Onkyo cassette tape deck
The connector of the Integra/Onkyo cassette tape deck must be
connected to the DTM-5.3.
1 Press the RCVR/Tape button.
2 Press the desired operation button.
: Plays side A (the side facing the front) of the tape.
: Stops playback, recording, fast forward or rewinding.
: Fast forwards the tape.
: Rewinds the tape.
: Plays side B (the side facing the rear) of the tape.
RCVR/Tape
Tape operation
buttons

Other manuals for Integra DTM-5.3

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Integra DTM-5.3 and is the answer not in the manual?

Integra DTM-5.3 Specifications

Amplifier Section IconAmplifier Section
power output100 Watts per channel
dynamic power output at 2 ohms2 × 170 Watts
dynamic power output at 4 ohms2 × 135 Watts
dynamic power output at 8 ohms2 × 140 Watts
total harmonic distortion at rated power0.08%
IM distortion at rated power0.08%
damping factor60 at 8 ohms
phono input sensitivity and impedance2.5 mV, 50 kohms
line input sensitivity and impedance150 mV, 50 kohms
video input sensitivity and impedance1 Vp-p, 75 ohms
phono overload120 mV RMS at 1 kHz
Tuner Section FM IconTuner Section FM
tuning range87.5 to 108.0 MHz
usable sensitivity mono11.2 dBf, 1.0 µV
usable sensitivity stereo17.2 dBf, 2.0 µV
signal-to-noise ratio mono76 dB
signal-to-noise ratio stereo70 dB
total harmonic distortion mono0.15%
total harmonic distortion stereo0.25%
Tuner Section AM IconTuner Section AM
tuning range530 to 1, 710 kHz
usable sensitivity30 µV
image rejection ratio40 dB
signal-to-noise ratio40 dB
total harmonic distortion0.7%
General IconGeneral
power supplyAC 120 V, 60 Hz
power consumption2.8 A
dimensions17-1/8" × 5-7/8" × 13-7/16"
weight19.8 lbs.
