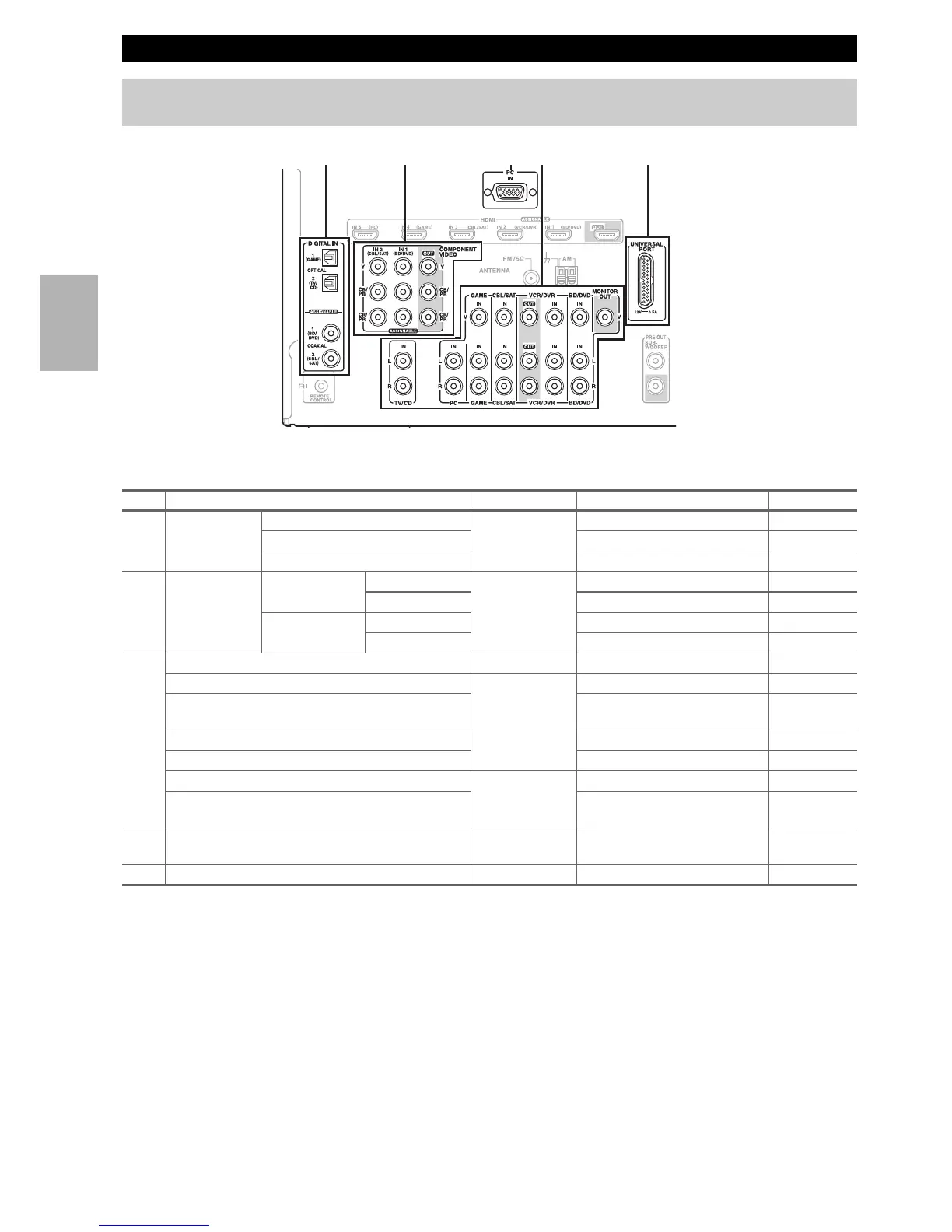

Connect your components to the appropriate jacks. The default input assignments are shown below.
✔: Assignment can be changed (➔ 37).
Connecting External Components
The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to
the MONITOR OUT V or the COMPONENT VIDEO OUT, use the AV receiver’s display when changing settings.
No. Jack Signal Components Assignable
A
COMPONENT
VIDEO
IN 1 (BD/DVD) Component video Blu-ray Disc/DVD player ✔
IN 2 (CBL/SAT) Satellite, cable, set-top box, etc. ✔
OUT TV, projector, etc.
B
DIGITAL IN OPTICAL IN 1 (GAME) Digital audio Game console ✔
IN 2 (TV/CD) TV, CD player ✔
COAXIAL IN 1 (BD/DVD) Blu-ray Disc/DVD player ✔
IN 2 (CBL/SAT) Satellite, cable, set-top box, etc. ✔
C
MONITOR OUT Composite video TV, projector, etc.
BD/DVD IN Analog audio and
composite video
Blu-ray Disc/DVD player
VCR/DVR IN VCR or DVD recorder/Digital
Video Recorder
CBL/SAT IN Satellite, cable, set-top box, etc.
GAME IN Game console
PC IN Analog audio Personal computer
TV/CD IN
TV, CD player, Turntable
*1
,
Cassette tape deck, MD, CD-R
D
UNIVERSAL PORT Analog audio/
Video
Universal port optional dock
(UP-A1 etc.)
E
PC IN Analog RGB Personal computer
*2
DA CB E
To Next Page
