53
En
Note
• Only analog input sources are output by the ZONE 2 PRE OUT
jacks. Digital input sources are not output. If no sound is heard
when an input source is selected, check if it’s connected to an
analog input.
• While Zone 2 is on, u functions will not work.
• You cannot select different AM or FM radio stations for your
main room and Zone 2. The same FM/AM radio station will be
heard in each room. For example, if you have an FM station for
the main room, that station will also be used in Zone 2.
• The Zone 2 level, balance, and tone functions have no effect on
the ZONE 2 PRE OUT jacks when the “Zone 2 Out” setting is
set to “Fixed” (➔ 51).
The 12V triggers A, B, and C can be used to turn on 12V
trigger-capable components automatically when they are
selected as the input source. The triggers can be set so that
they activate when a connected component is selected as
the input source for the main room, Zone 2 or any combi-
nation of rooms. When triggered, the output from a 12V
TRIGGER OUT goes high (+12 volts and 150 milliam-
peres max. at TRIGGER OUT A; +12 volts and 25 milli-
amperes max.at TRIGGER OUT B and C).

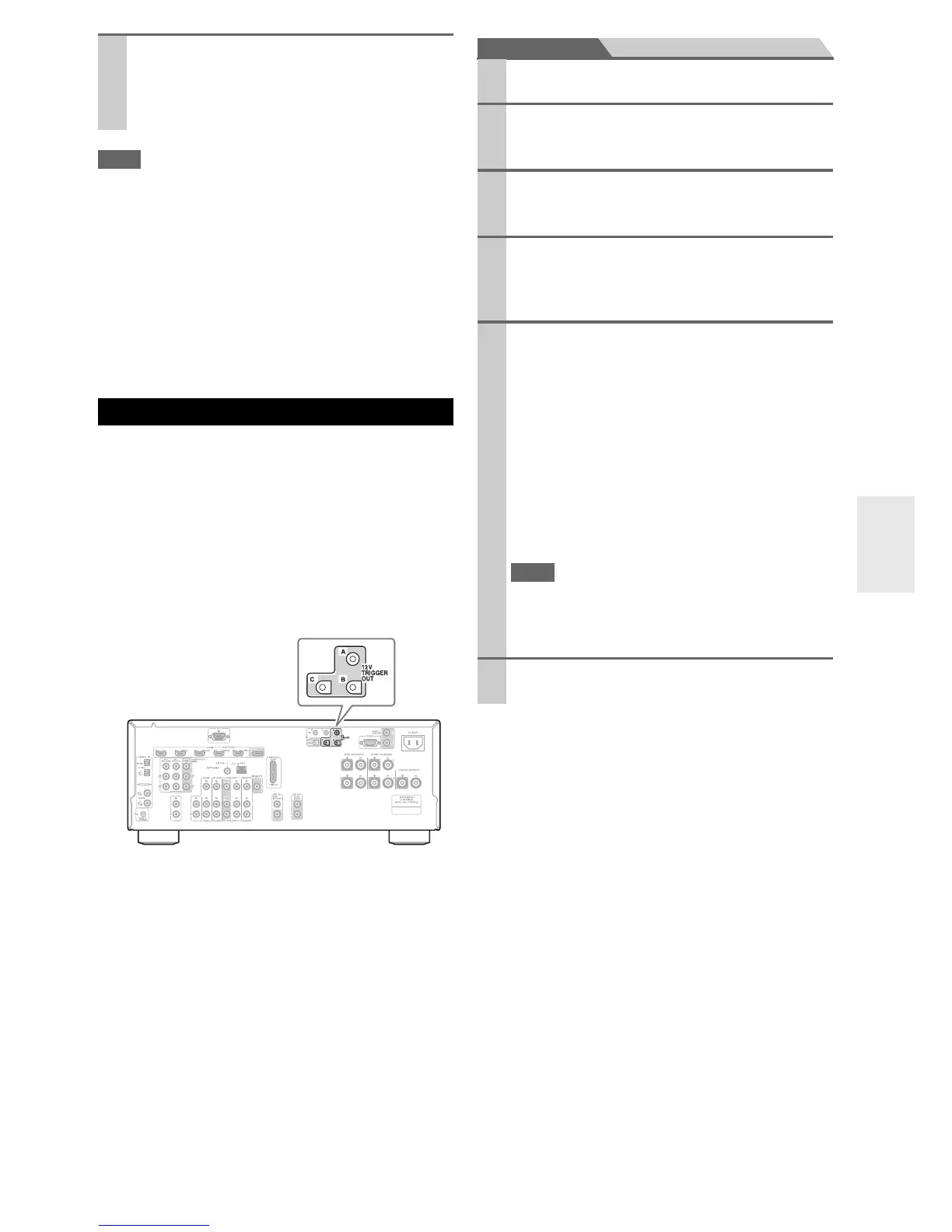

Hookup
• Use a miniplug cable to connect the AV receiver’s 12V TRIG-
GER OUT A, B, or C jack to the 12 V trigger input on a con-
nected component.
When several components are turned on simultaneously
by using triggers A, B, and C, depending on the type of
components, a large amount of current may be drawn
momentarily. To prevent this, you can delay trigger signals
A, B, and C individually. Another application for trigger
delay is eliminating the “thump” noise that’s sometimes
heard when a source component is turned on. Delaying the
trigger signal for your power amplifier so that it’s the last
component to be turned on will accomplish this.
Menu Miscellaneous
3
Use + and – to adjust the Bass, Treble or Balance.
• You can boost or cut the Bass or Treble from –10dB to
+10dB in 2 dB steps.
• You can adjust the balance from 0 in the center to +10dB
to the right or +10dB to the left in 2 dB steps.
Using the 12V Triggers
1
Press Receiver followed by Setup.
The main menu appears.
2
Use q/w to select “Miscellaneous”, and then press
Enter.
The Miscellaneous menu appears.
3
Use q/w to select “12V Trigger A, B or C Setup”,
and then press Enter.
The 12V Trigger A, B or C Setup screen appears.
4
Use q/w to select “Delay”, and use e/r to select:
0sec, 1sec, 2sec, or 3sec.
When 0 sec is selected, the trigger signal is output as
soon as the input source is changed.
5
Use q/w to select an input source, and use e/r to
select an option.
` Off:
No trigger signal is output. A 12-volt trigger
signal is output when the connected component
is selected as the source for:
` Main:
Main room.
` Zone 2:
Zone 2.
` Main/Zone 2:
Main room or Zone 2.
Note
• By default, all input sources on the “12V Trigger A
Setup” menu are set to “Main”, those on the “12V Trig-
ger B Setup” menu are set to “Main/Zone 2”, and those
on the “12V Trigger C Setup” menu are set to “Zone 2”
6
When you’ve finished, press Setup.
The setup menu closes.
