8
En
For detailed information, see the pages in parentheses.
a Audio input indicators
b Listening mode and format indicators (➔ 29, 49)
c Audyssey indicators (➔ 23, 41)
d Tuning indicators (➔ 26)
e SLEEP indicator (➔ 22)
f MUTING indicator (➔ 22)
g Message area
a DIGITAL IN OPTICAL and COAXIAL jacks
b COMPONENT VIDEO IN and OUT jacks
c HDMI IN and OUT jacks
d PC IN jack
e FM ANTENNA jack and AM ANTENNA terminal
f MONITOR OUT V jack
g UNIVERSAL PORT jack
h IR IN A/B and OUT jacks
i 12V TRIGGER OUT jacks
j SPEAKERS terminals
(CENTER, FRONT, SURR)
k RS232 jack
*
l ZONE 2 PRE OUT jacks
m AC INLET jack
n u REMOTE CONTROL jack
o Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT
IN, GAME IN, PC IN, TV/CD IN)
p PRE OUT: SUBWOOFER jacks
q PRE OUT: SURR BACK jacks
* Terminal for control.

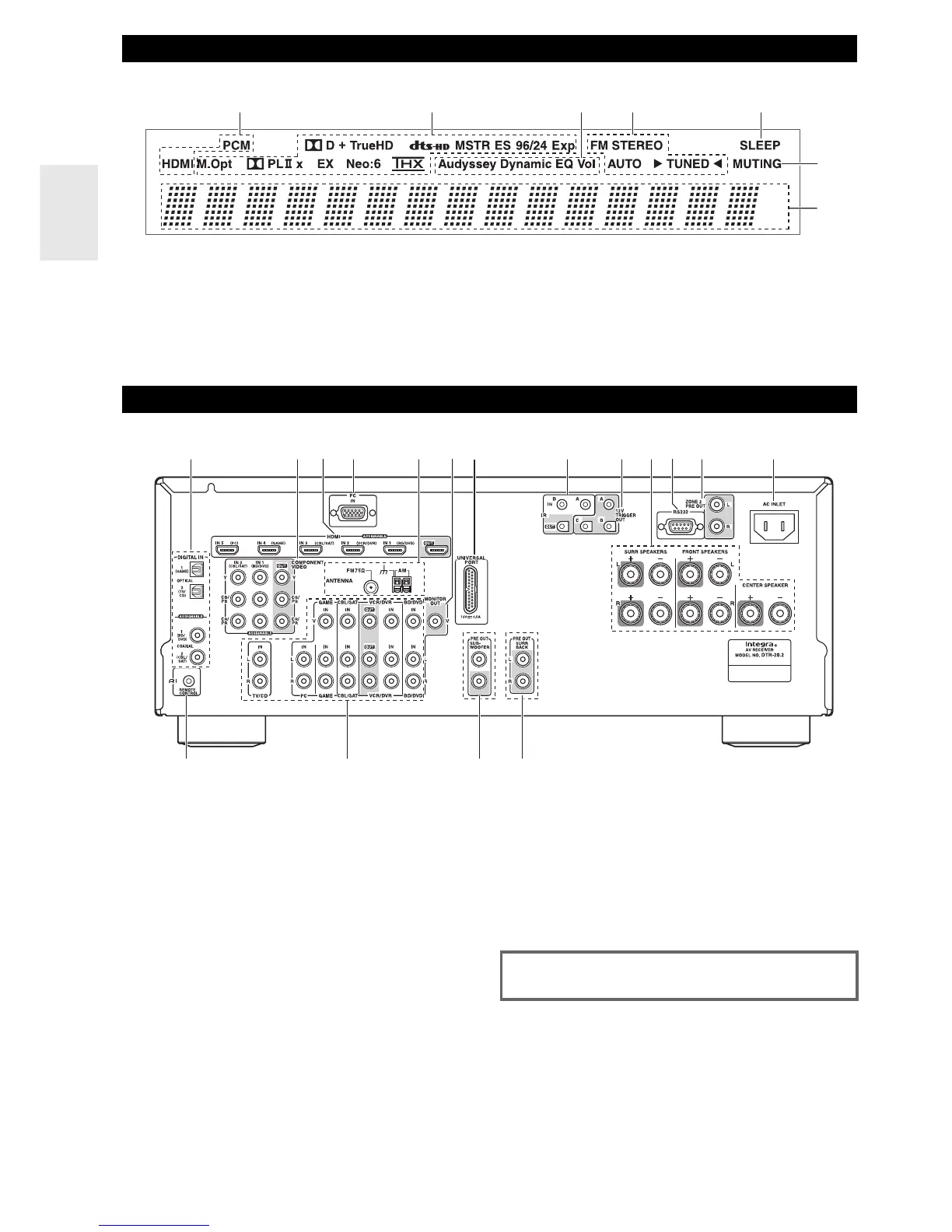

Display
a b e
g
f
c d
Rear Panel
j l mh iga b d e
onpq
c fk*
See “Connecting the AV Receiver” for connection infor-
mation (➔ 11 to 19).
To Next Page
