32
Connecting the AV Receiver—Continued
• With connection , you can listen to and record audio from the game console or listen in Zone 2.
• To enjoy Dolby Digital and DTS, use connection . (To record or listen in Zone 2 as well, use and .)

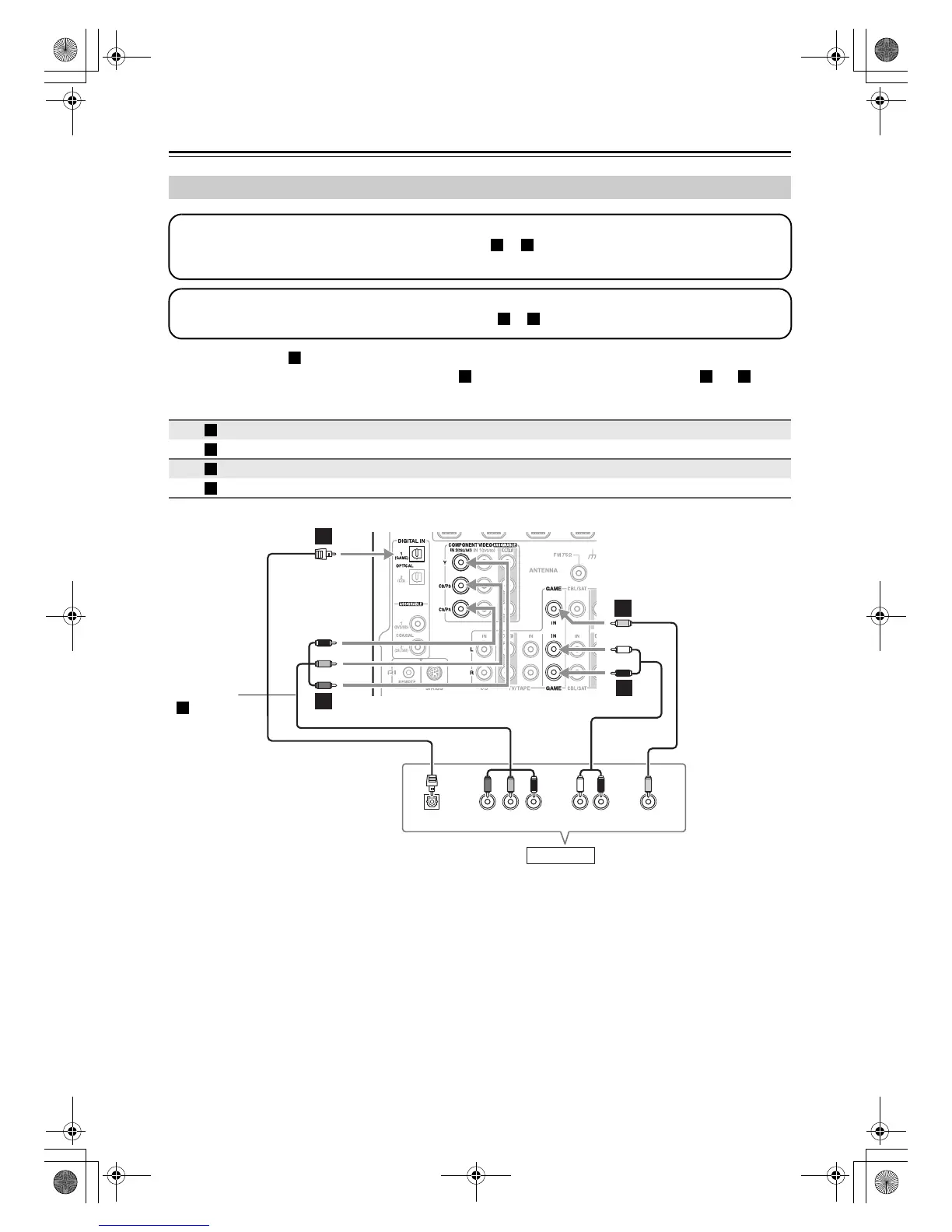

Connecting a Game Console
Connection AV receiver Signal flow Game console
COMPONENT VIDEO IN 2 (CBL/SAT) ⇐ Component video output
GAME IN V ⇐ Composite video output
GAME IN L/R ⇐ Analog audio L/R output
DIGITAL IN OPTICAL 1 (GAME) ⇐ Digital optical output
Step 1: Video Connection
Choose a video connection that matches the game console ( or ), and then make the connection.
You must connect the AV receiver to your TV with the same type of connection.
A B
Step 2: Audio Connection
Choose an audio connection that matches the game console ( or ), and then make the connection.
a b
a
b a b
A
B
a
b
YPB
COMPONENT VIDEO OUT
P
R AUDIO
OUT
VIDEO
OUT
LR
OPTICAL
OUT
b
A
BB
a
Game Console
Connection
must be
assigned
(see
page 42)
A
DTR-30.1_En_A.book 32 ページ ２００９年４月９日 木曜日 午後１時３０分
