43

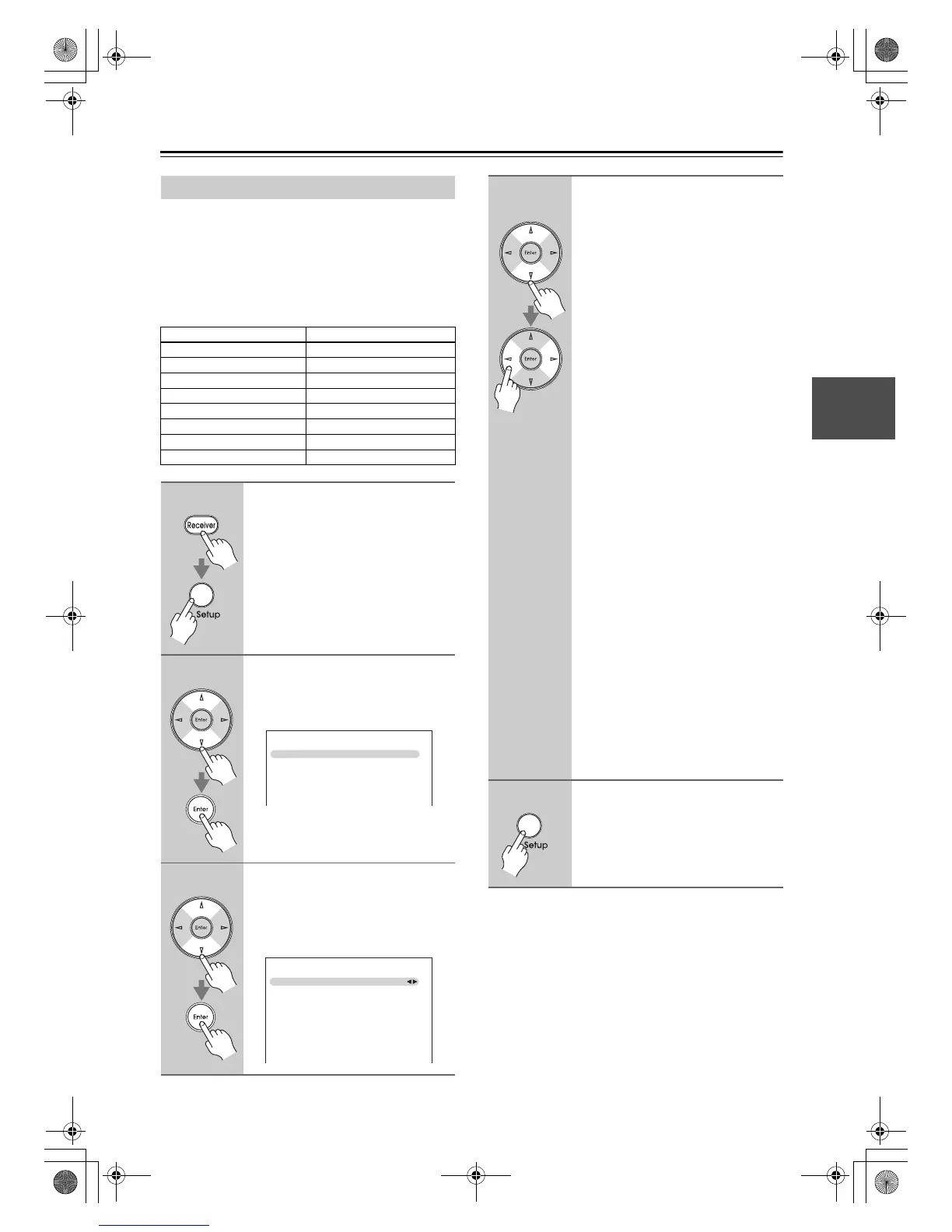

First Time Setup—Continued
If you connect a component to a digital input jack, you
must assign that jack to an input selector. For example, if
you connect your CD player to the OPTICAL IN1 jack,
you should assign that jack to the CD input selector. By
default, the COAXIAL IN1 jack is assigned to the DVD/
BD input selector, although this can be changed.
Here are the default assignments.
Notes:
• If you connect an input component (such as UP-A1
series Dock that seated iPod) to the UNIVERSAL
PORT jack, you cannot assign any input to Port
selector.
• This procedure can also be performed on the AV
receiver by using its [Setup] button, arrow buttons, and
[Enter] button.
Digital Input Setup
Input selector Default assignment
DVD/BD COAX1
VCR/DVR -----
CBL/SAT COAX2
Game OPT1
AUX -----
TV/Tape -----
CD OPT2
Port -----
1
Press the [Receiver] button fol-
lowed by the [Setup] button.
The main menu appears onscreen.
If the main menu doesn’t appear, make
sure the appropriate external input is
selected on your TV.
2
Use the Up and Down [
q
]/[
w
] but-
tons to select “1. Input Assign”,
and then press [Enter].
The “Input Assign” menu appears.
3
Use the Up and Down [q]/[w] but-
tons to select “3. Digital Audio
Input”, and then press [Enter].
The “Digital Audio Input” menu
appears.
1. Input Assign
1. HDMI Input
2. Component Video Input
3. Digital Audio Input
1–3. Digital Audio Input
DVD/BD
VCR/DVR
CBL/SAT
GAME
AUX
TV/TAPE
CD
PORT
COAX 1
- - - - -
COAX 2
OPT 1
- - - - -
- - - - -
OPT 2
- - - - -
4
Use the Up and Down [q]/[w] but-
tons to select an input selector,
and use the Left and Right
[e]/[r] buttons to select
“COAX1”, “COAX2”, “OPT1”,
“OPT2”, or “- - - - - (analog)”.
• When an HDMI IN is assigned to an
input selector in “HDMI Input
Setup” on page 41, this input assign-
ment is automatically set to the same
HDMI IN. And in addition to the
usual inputs (e.g., COAX1, COAX2,
etc.), you can also select HDMI
inputs.
• Press the [Enter] button when you do
not use the signal of audio from the
HDMI IN. The “ ” mark is dis-
played like “COAX1 ”.
Examples:
If you connect your DVD player to the
OPTICAL IN 1 jack, set “DVD/BD” to
“OPT1”.
If you want to listen to audio from the
component connected to the OPTICAL
IN 2 jack when the VCR/DVR input
selector is selected, set “VCR/DVR” to
“OPT2”.
If you want to listen to audio from the
component connected to the
COAXIAL IN 1 jack when the CBL/
SAT input selector is selected, set
“CBL/SAT” to “COAX1”.
For the input selector that you want to
listen the analog audio, set to “-----” in
the Digital Audio Input setting and
HDMI Input setting (see page 41).
5
Press the [Setup] button.
The setup menu closes.
*
*
DTR-30.1_En_A.book 43 ページ ２００９年４月９日 木曜日 午後１時３０分
