1000Base-T Test Fixtures and Calibration Load Fixtures
1000BASE-T/100BASE-TX/10BASE-T Physical Layer Compliance Tests Manual
100 Intel Confidential
A.4 Fixture 40.8.3.1.A

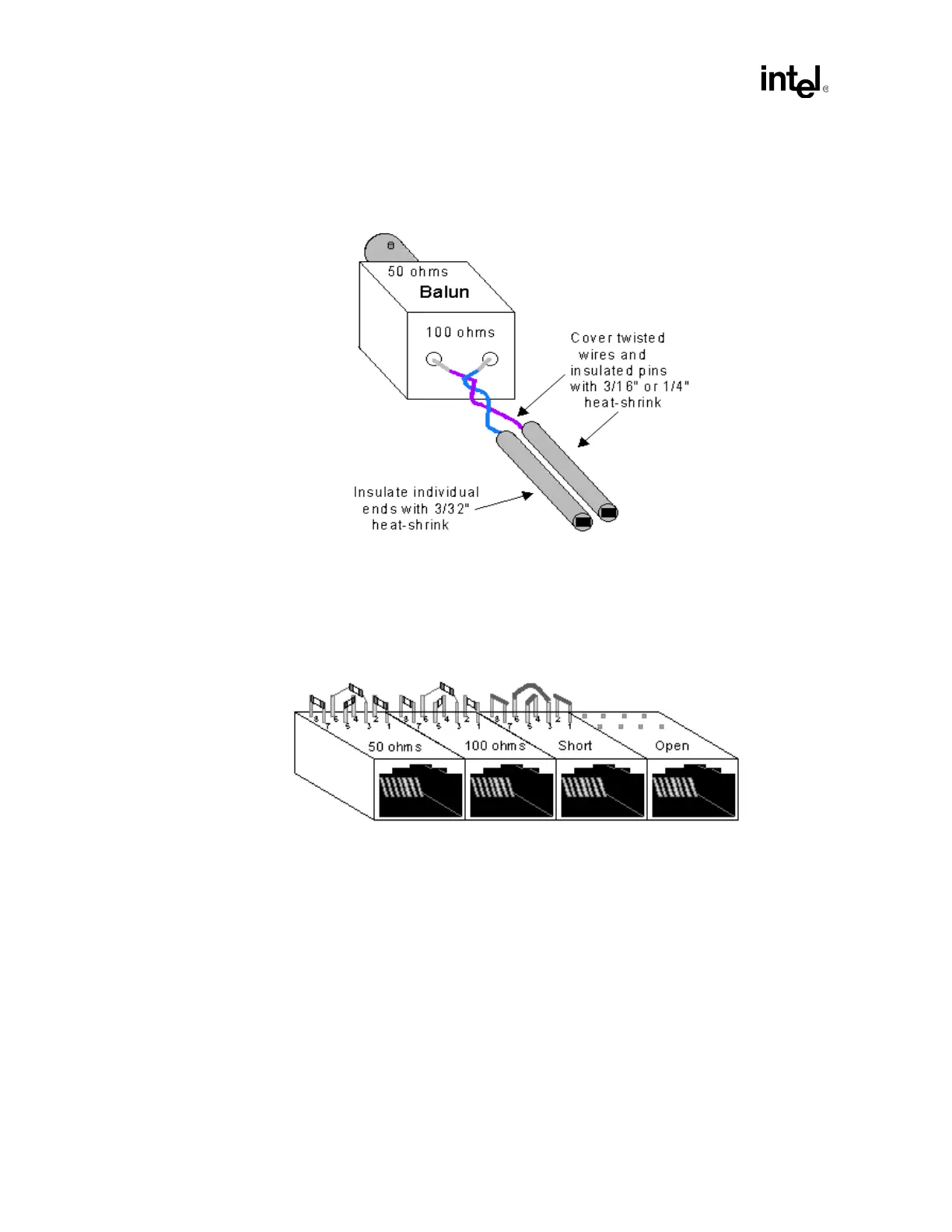

Fixture 40.8.3.1.A is a Balun test fixture. A North Hills NH13732 or similar balun should be used.
A.5 Fixture 40.8.3.1.B
Fixture 40.8.3.1.B is used to calibrate the network/spectrum analyzer. The illustration shows the
network analyzer calibration loads.
