Intel 1000BASE-T User Manual

1000BASE-T/100BASE-TX/10BASE-T Physical Layer Compliance Tests Manual
Intel Confidential 11

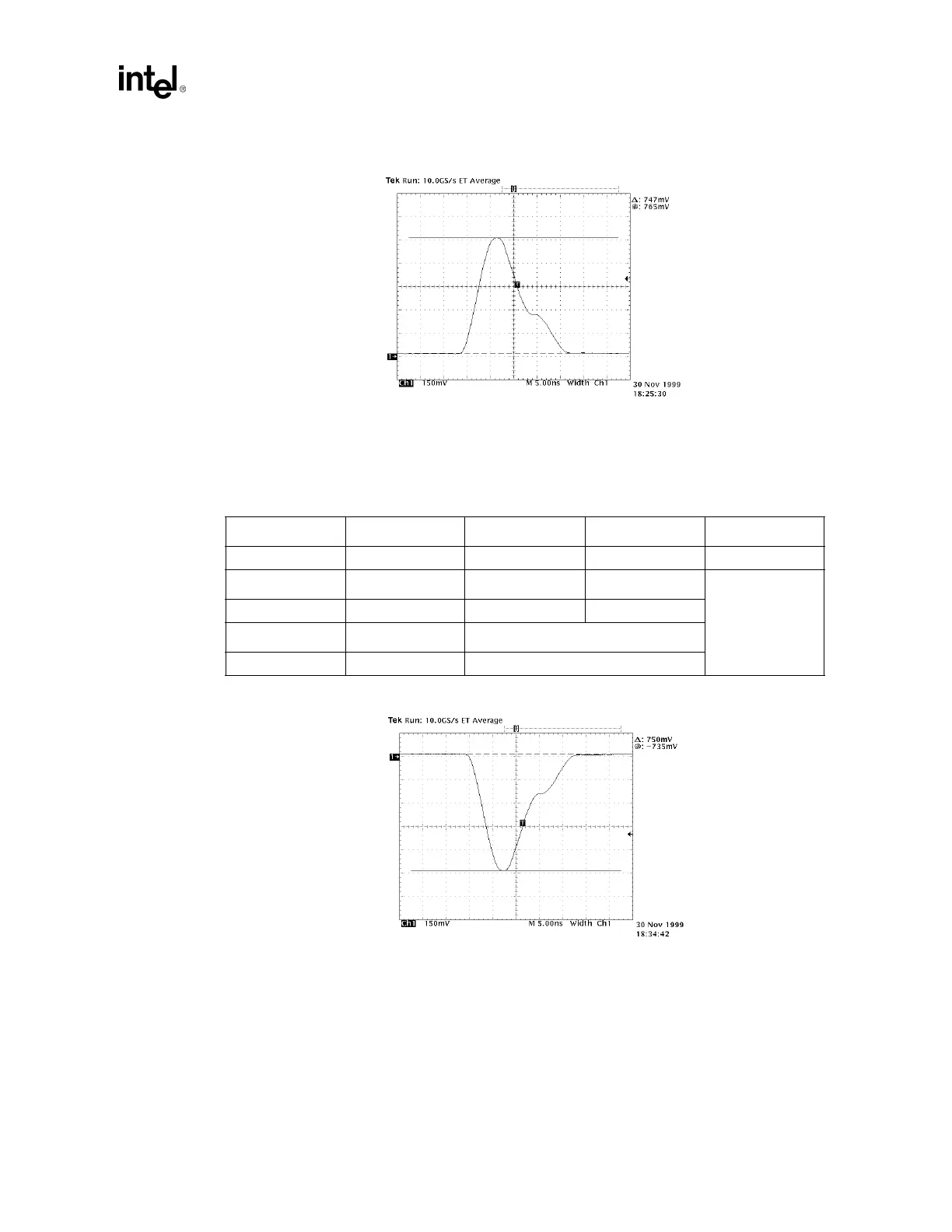

1000BASE-T Peak Differential Output Voltage and Level Accuracy
Figure 2-2. Example Point A Measurement
6. Repeat Step 5 for Point B:
Table 2-2. Point B Peak Voltage
Figure 2-3. Example Point B Measurement
7. Repeat 5 for Point C:
Trigger Settings Trigger Type Polarity Limits Level
Pulse width Negative 5.6 ns to 8.6 ns -500 mV
Scaling Vertical Scale Vertical Position Horizontal Scale
150 mV / division +3.0 division 5 ns / division
Cursors Display Mode Acquisition Mode
Horizontal bars Vectors Average on
