1000BASE-T/100BASE-TX/10BASE-T Physical Layer Compliance Tests Manual
Intel Confidential 65
100Base-TX Receiver Return Loss

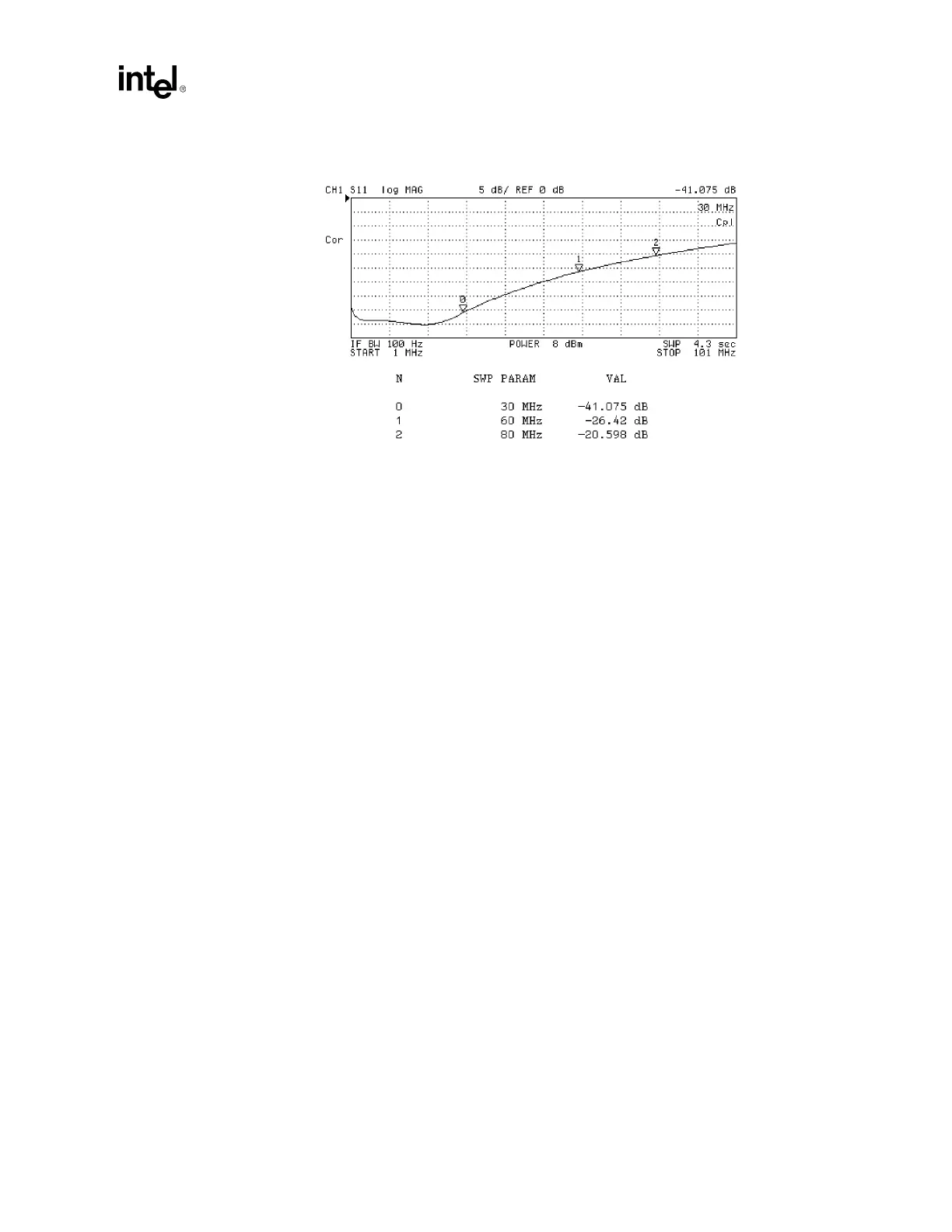

Figure 16-2. Receiver Return Loss Data
10. Set the marker to the worst case return loss between 2 MHz and 30 MHz. Record the
amplitude (dB of return loss).
11. Repeat step 11 from 30 MHz to 60 MHz and from 60 MHz to 80 MHz.
12. Verify the measurements meet specifications.
