Installing the Motherboard
16
Removing the Heatsink Support Base
✏
NOTE
To remove the heatsink support base from the motherboard, you need a special removal tool
(MID #58982) that is available from Dexter Design (call 503-648-7000 for ordering information).
To remove the heatsink support base follow these steps:
1. With your fingers, remove the two retention pins (A) from the heatsink support base (B) as
shown in Figure 7.
OM06231
A
B
A

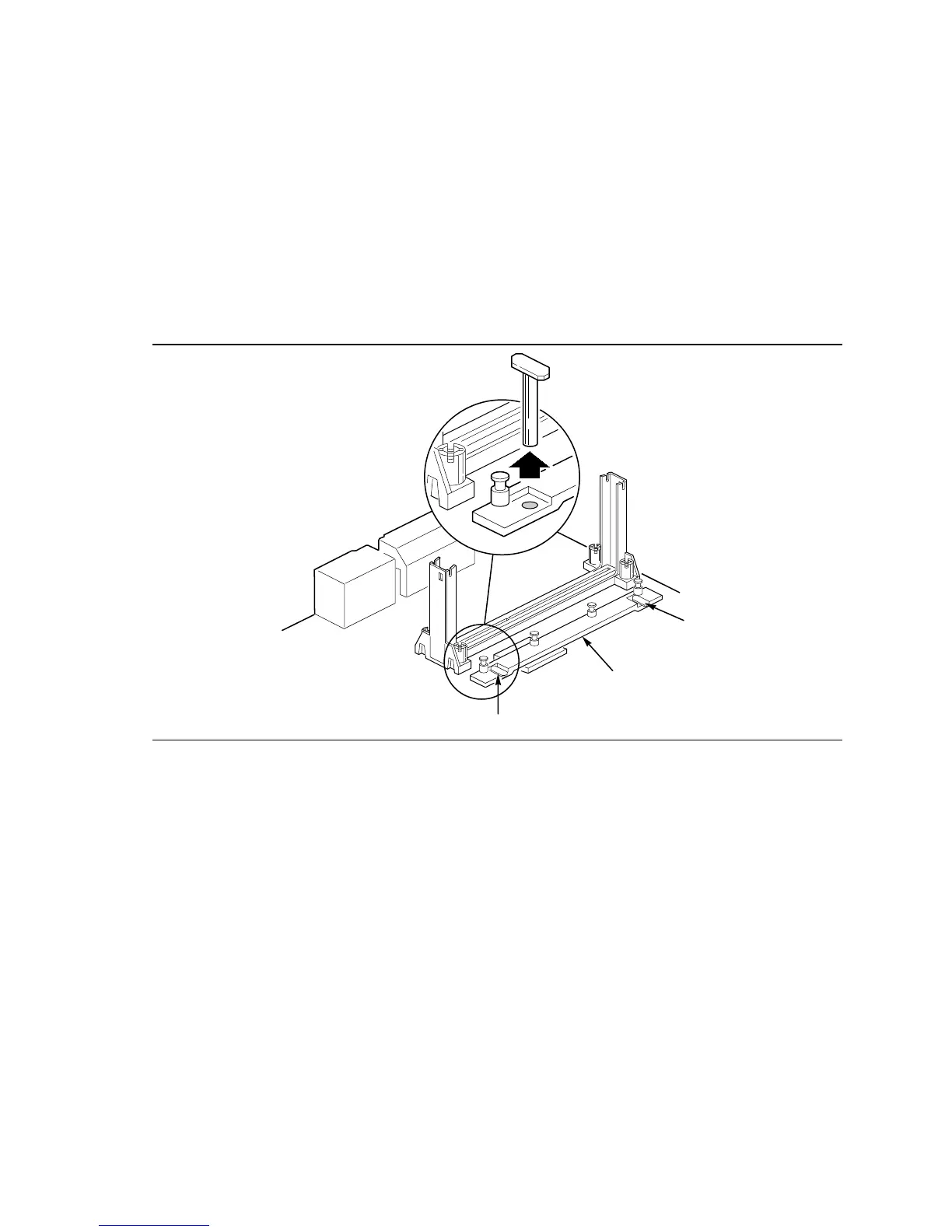

Figure 7. Removing the Heatsink Support Retention Pins
