AL440LX Motherboard Product Guide
23
Installing and Removing the Motherboard
Refer to your chassis manual for instructions on installing and removing the motherboard.
✏
NOTES
You will need a Phillips (#2 bit) screwdriver.
Refer to Appendix B for regulatory requirements and installation instructions and precautions.
WARNING
This procedure should be done only by qualified technical personnel. Disconnect the computer
from its power source before doing the procedures described here. Failure to disconnect the
power before you open the computer can result in personal injury or equipment damage.
The motherboard is secured to the chassis by seven screws. Figure 13 shows the locations of the
mounting screw holes.
OM06220

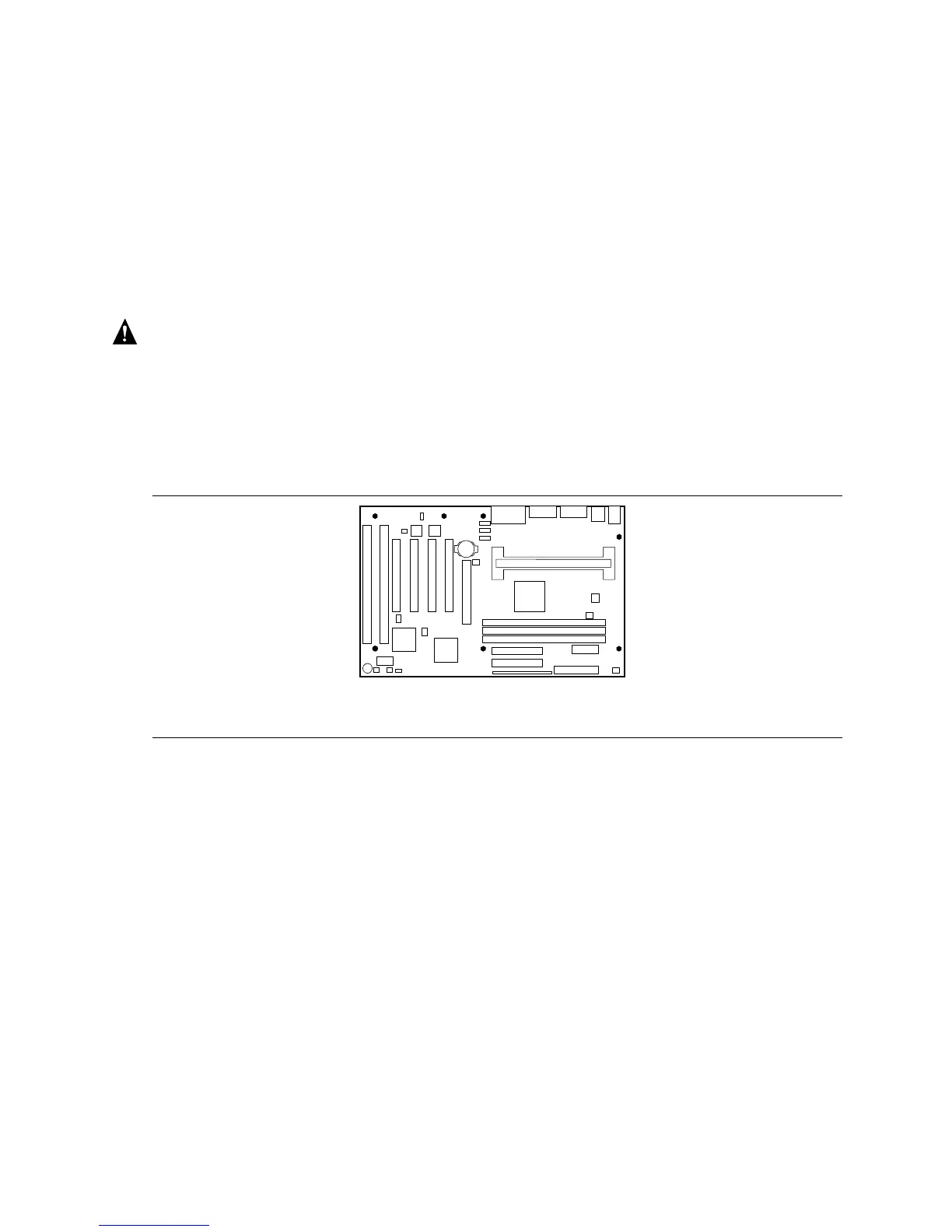

Figure 13. Mounting Screw Holes
To Next Page
