Technical Reference
Motherboard Connectors

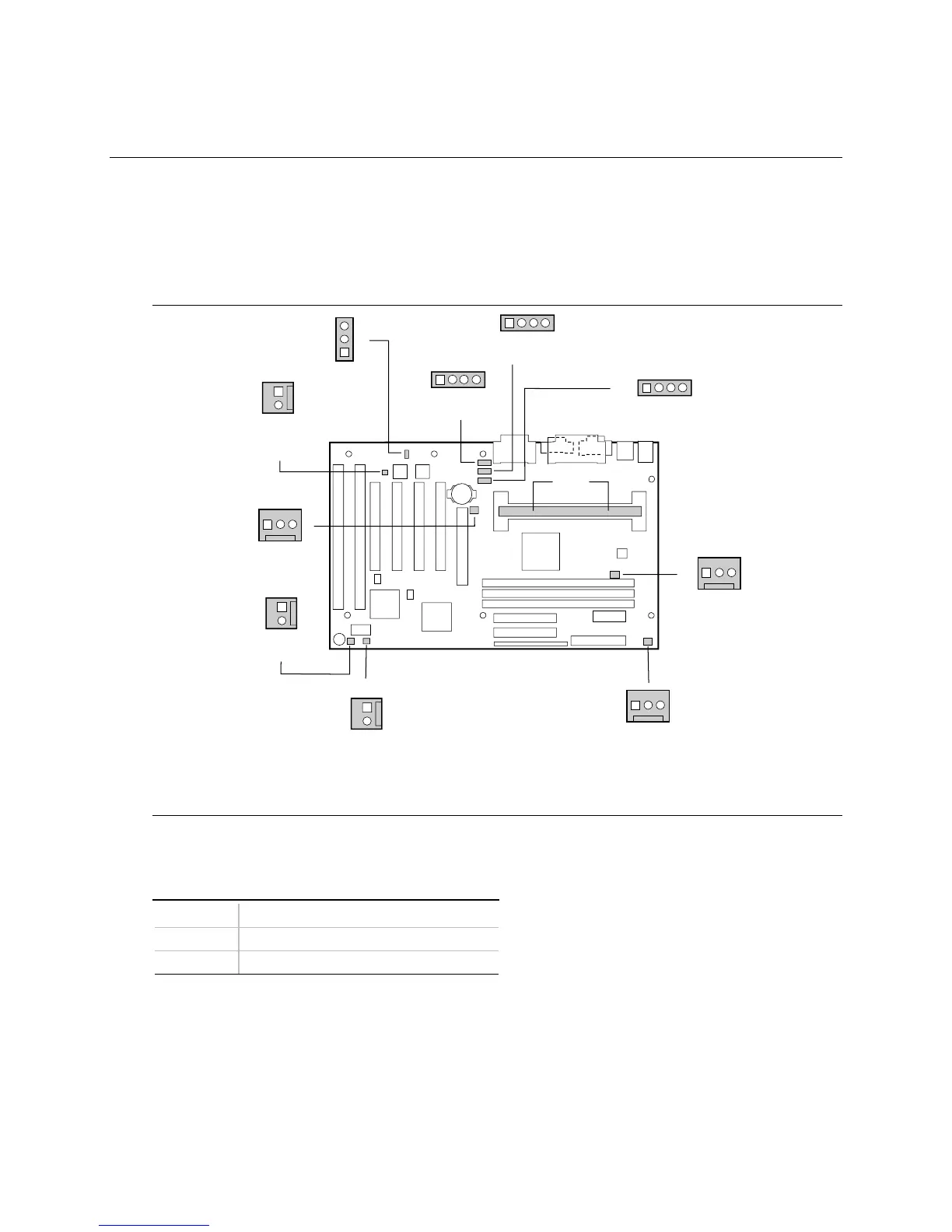

The following figure shows the location of the motherboard connectors.
OM06236
Slot 1
J4J1
J1C1
1
3
1
J2F2
Line In Audio
1
J2F1
Telephony
4
1
J1F1
CD-ROM Audio
4
4
Fan 1
J8M1
3
1
Fan 3
J5L1
(Active
Heatsink
Fan)
1
J8A1
Wake on Ring
2
1
J8B1
SCSI Hard
Drive LED
2
1
Fan 2
J3F1
1
J2B1
Chassis
Security
1
Wake on
LAN
Figure 15. Motherboard Connectors
Table 20.
Chassis Security Header (J2B1)
Pin
Signal Name
1
Ground
2
CHS_SEC
44
46
Table of Contents
Default Chapter
2
Revision History
2
Table of Contents
3
Product Description
7
Features
7
Components
8
Figures
8
Motherboard Components
8
Back Panel I/O Connectors
9
Installing the Motherboard
11
Before You Begin
11
Installing a Processor
12
Installing the Retention Mechanism
12
Installing the Processor Retention Mechanism
12
Installing the Processor
13
Setting the Processor Speed
14
Upgrading to a Boxed Pentium ® II Processor
14
Installing the Heatsink Support Top Bar
14
Removing the Installed Processor
15
Removing the Heatsink Support Top Bar and the Processor
15
Removing the Heatsink Support Base
16
Removing the Heatsink Support Retention Pins
16
Placing the Heatsink Support Base Removal Tool on the Retention Pins
17
Upgrading the Processor
18
Using the Heatsink Support Base Removal Tool
18
Installing Memory
19
Location of DIMM Sockets
19
Removing Memory
20
Installing a DIMM
20
Replacing the Battery
21
Replacing the Battery
22
Installing and Removing the Motherboard
23
Mounting Screw Holes
23
Configuring the Motherboard
25
Before You Begin
25
Configuration Modes
26
Configuration Header
26
Setting the Processor Speed
27
Tables
27
Jumper Settings for the Setup Program
27
Clearing the Passwords
28
Using the Setup Program
29
Setup Menus
29
Setup Menu Bar
29
Function Keys
30
Maintenance Menu
30
Setup Function Keys
30
Main Menu
31
Floppy Options Submenu
32
IDE Device Configuration Submenus
33
Advanced Menu
34
Resource Configuration Submenu
35
Peripheral Configuration Submenu
36
Keyboard Features Submenu
37
Video Configuration Submenu
37
DMI Event Logging Submenu
37
Security Menu
38
Power Menu
38
Boot Menu
39
Hard Drive Submenu
40
Removable Devices Submenu
40
Exit Menu
40
Upgrading the BIOS
41
Preparing for the Upgrade
41
Obtaining the Upgrade Utility
41
Recording the Current BIOS Settings
41
Creating a Bootable Floppy Diskette
42
Creating the BIOS Upgrade Floppy Diskette
42
Upgrading the BIOS
42
Recovering the BIOS
43
Changing the BIOS Language
44
Technical Reference
45
Motherboard Connectors
45
Chassis Security Header (J2B1)
45
Wake on LAN Header (J1C1)
46
ATAPI CD Audio Connector (J1F1)
46
ATAPI Telephony Connector (J2F1)
46
ATAPI Line in Connector (J2F2)
46
Fan 1 Header (J8M1)
46
Fan 2 Header (J3F1)
47
Fan 3 Header (J5L1) (Active Heatsink Fan)
47
SCSI Hard Drive LED Input Header (J8B1)
47
Wake on Ring Header (J8A1)
47
Front Panel Connectors
48
Motherboard Resources
49
Memory Map
49
DMA Channels
49
I/O Map
50
PCI Configuration Space Map
52
Interrupts
52
A Error Messages
53
BIOS Beep Codes
53
BIOS Error Messages
53
Beep Codes
53
B Regulatory and Integration Information
55
Regulatory Requirements
55
Safety Standards
55
Electromagnetic Compatibility (EMC) Regulations
56
Product Certification Markings
56
Installation Precautions
57
Installation Instructions
57
Ensure Electromagnetic Compatibility (EMC)
58
Ensure Host Computer and Accessory Module Certifications
58
Prevent Power Supply Overload
59
Place Battery Marking on the Computer
59
Use Only for Intended Applications
59
