Installing the Motherboard
18
3. Carefully rock the tool back and forth until the heatsink support base disengages from the holes
in the motherboard (Figure 9). There is an audible click when the base disengages from the
motherboard.
OM06233

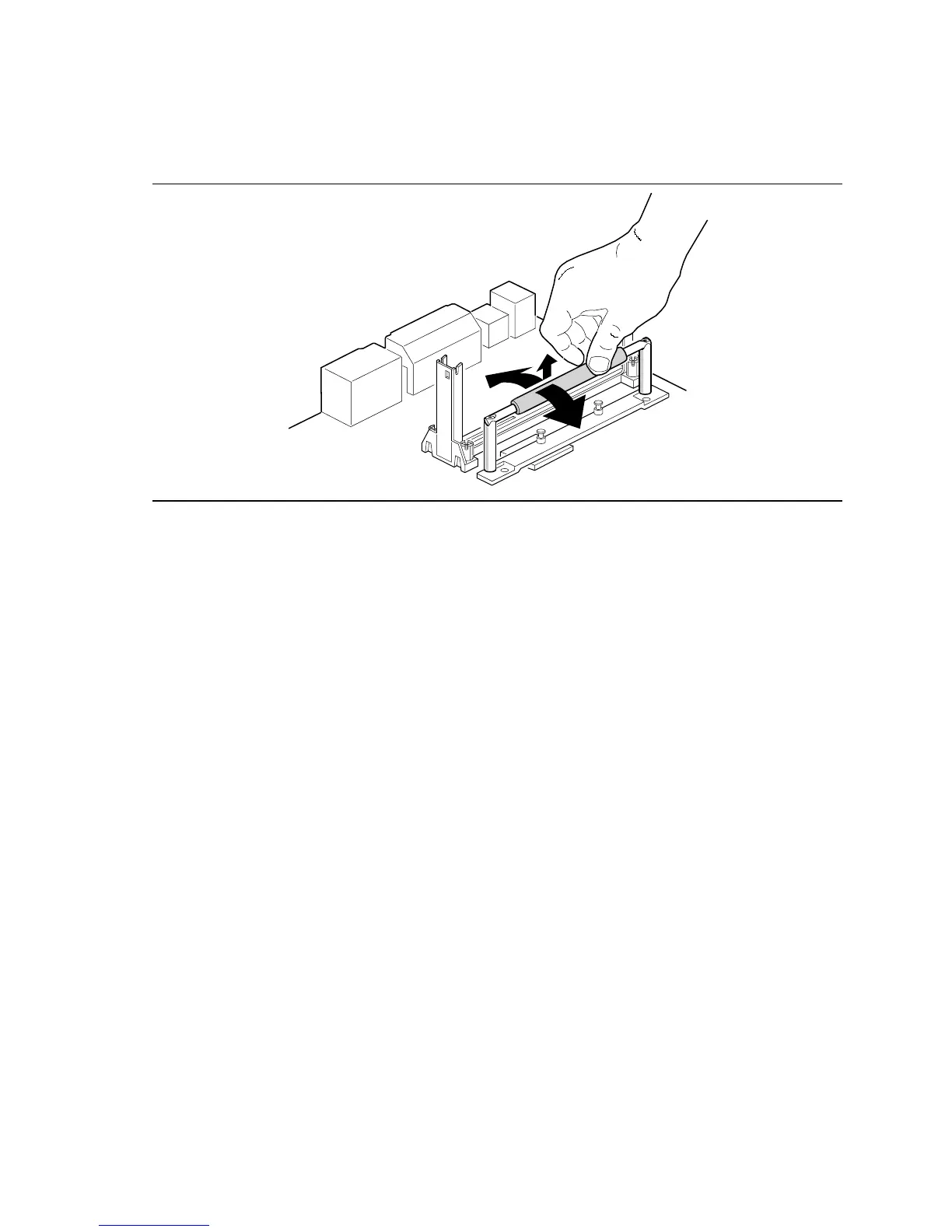

Figure 9. Using the Heatsink Support Base Removal Tool
4. Remove the tool and the heatsink support base from the motherboard.
Upgrading the Processor
Refer to the boxed Intel Pentium II processor documentation for installation instructions.
