Product Description
8
Components

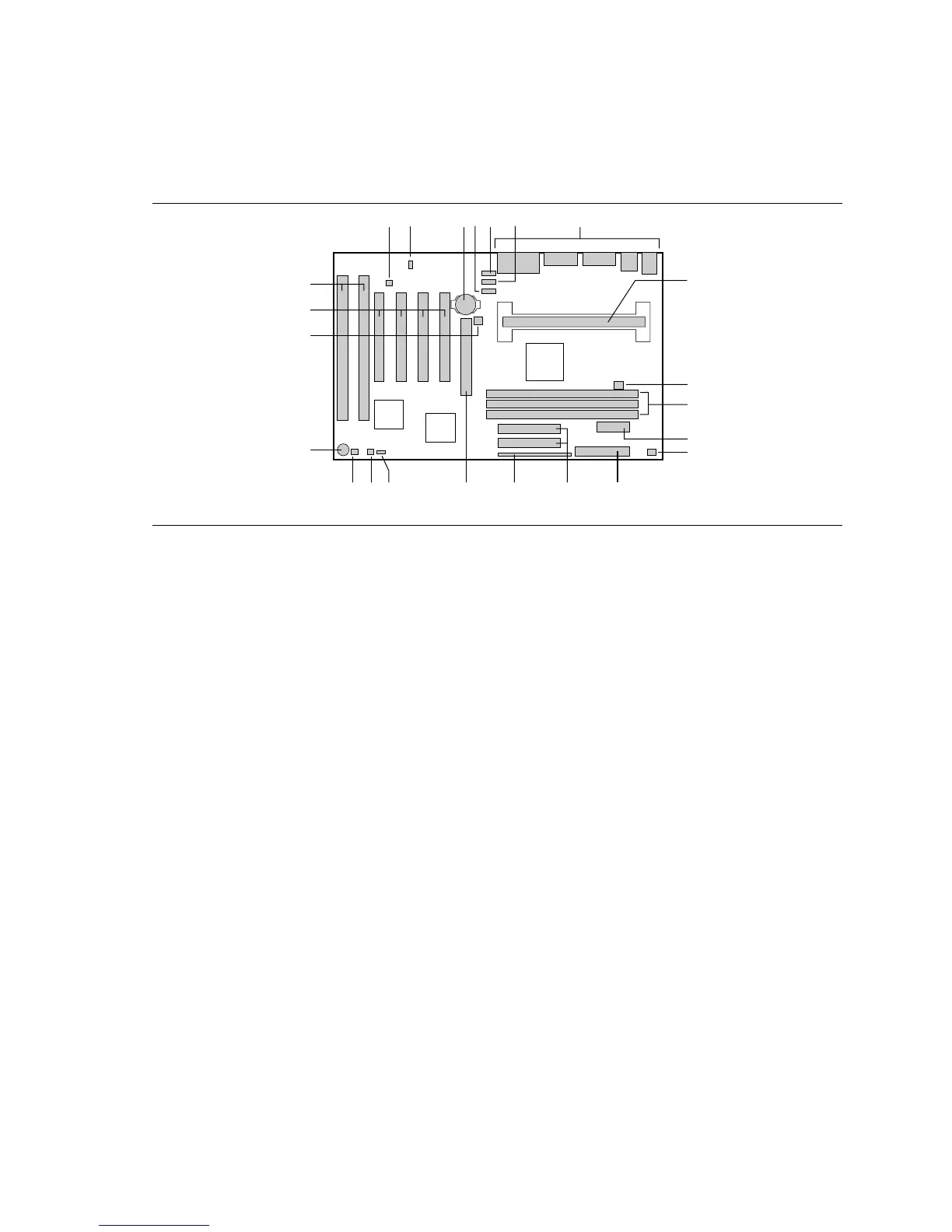

Figure 1 shows the components on the motherboard.
OM06239
BCDFEGA
H
K
J
I
L
MONSR P
T
U
W
V
Q
Figure 1. Motherboard Components
A Optional chassis security header M Floppy drive connector
B Optional Wake on LAN
†
header N IDE connectors
C Battery O Front panel header
D Optional Line In connector P Accelerated Graphics Port (A.G.P.) connector
E Optional CD-ROM audio connector Q Configuration header
F Optional telephony connector R Optional SCSI hard disk LED header
G Back-panel I/O connectors S Wake on Ring header
H Slot 1 connector T Speaker
I Fan 3 header (for the active heatsink fan) U Fan 2 header
J DIMM sockets V PCI connectors
K Primary power connector W ISA connectors
L Fan 1 header
✏
NOTE
Components labeled optional do not come on all AL440LX motherboards.
