Intel Atom N2800 - Back Panel Connectors; Figure 12. Back Panel Connectors


53
3.2.1 Back Panel Connectors

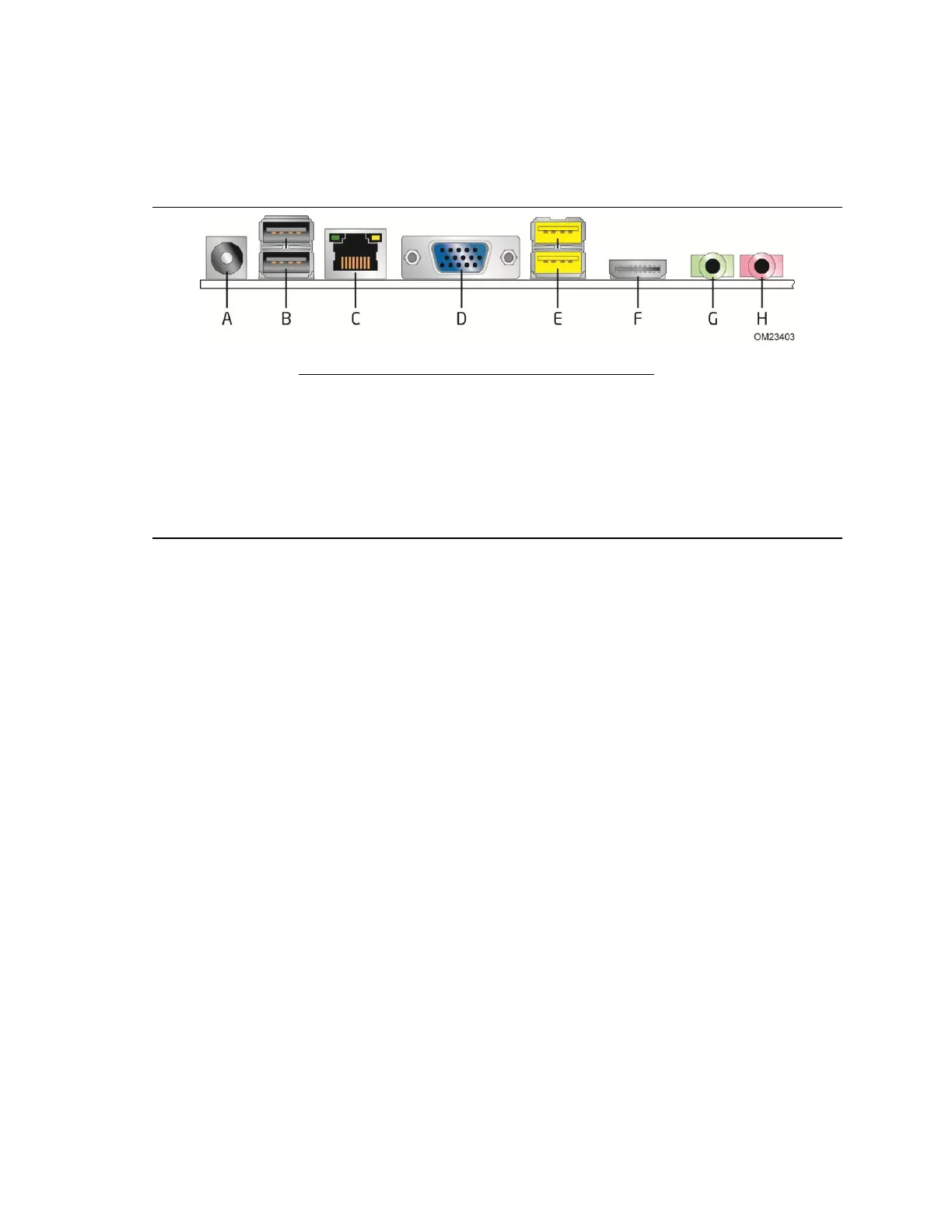

Figure 12 shows the location of the back panel connectors for the board.
Item
Description
A
DC input jack
B
USB ports
C
LAN connector
D
VGA connector
E
High-current/fast charging USB ports
F
HDMI connector
G
Analog line out
H
Microphone in
Figure 12. Back Panel Connectors
